PeakTech P41xx Series Waveform Generators, 1/2 Channels, up to 60MHz
Modelle PeakTech P4120, P4121, P4124, P4125, P4165 Signal-Generatoren

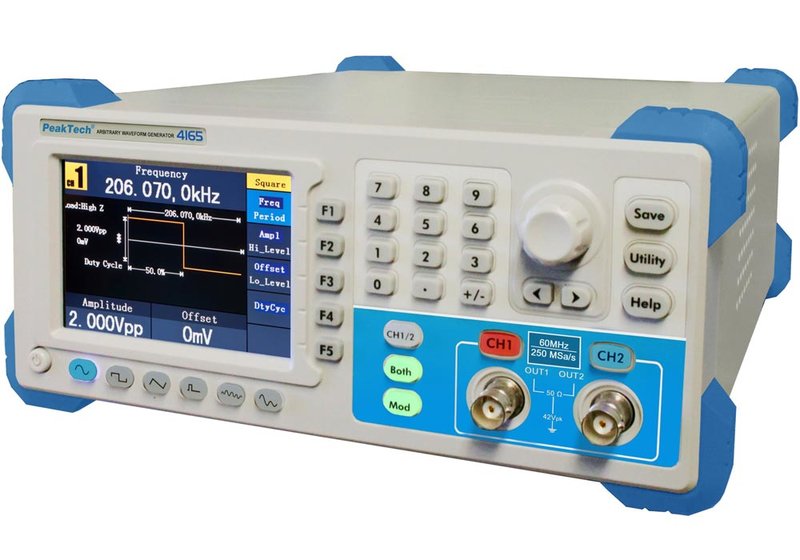

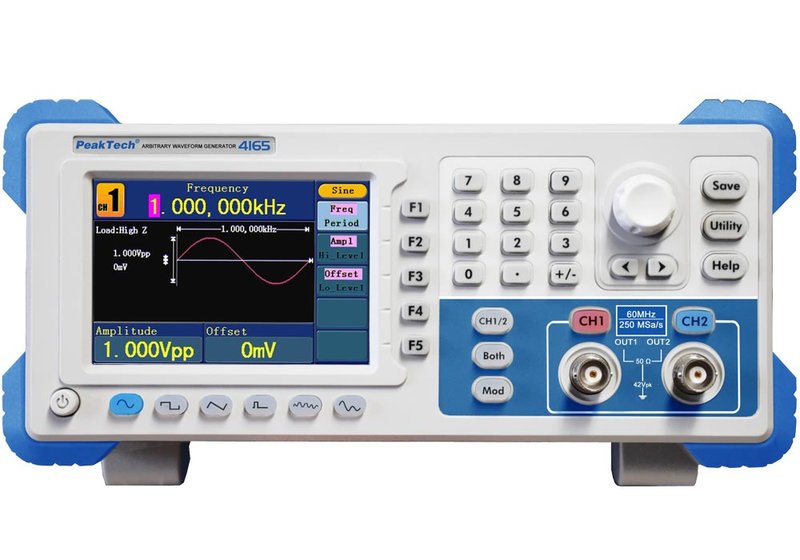

The 1 and 2 channel PeakTech function and arbitrary waveform generators P41xx have bandwidths from 1µHz up to between 5 and 60 MHz (depending on the model). They offer great technical specs and features, for example for P4125/4165: 5 modulation types, Burst and Sweep, channel coupling and an integrated frequency counter.
- 1 or 2 independent channels with same technical characteristics.
- Bandwidth up to 60 MHz.
- 1 µHz frequency resolution for whole bandwidth.
- Standard waveforms (sine, square, triangle, DC, etc.), built-in arbitrary waveforms (Hamming, Gaussian, Trapezia, tan, etc.) and user-definable arbitrary waveforms.
- Integrated waveform editor, storable on USB-drive.
- P4125, P4165: 5 types of modulation AM, FM, PM, PWM, FSK. Sweep- and Burst function.
- P4125, P4165: Channel coupling and combine features, integrated 200 MHz frequency counter.
- 3.9"/19 cm TFT digital display; USB interface.
- Safety: EN 61010.

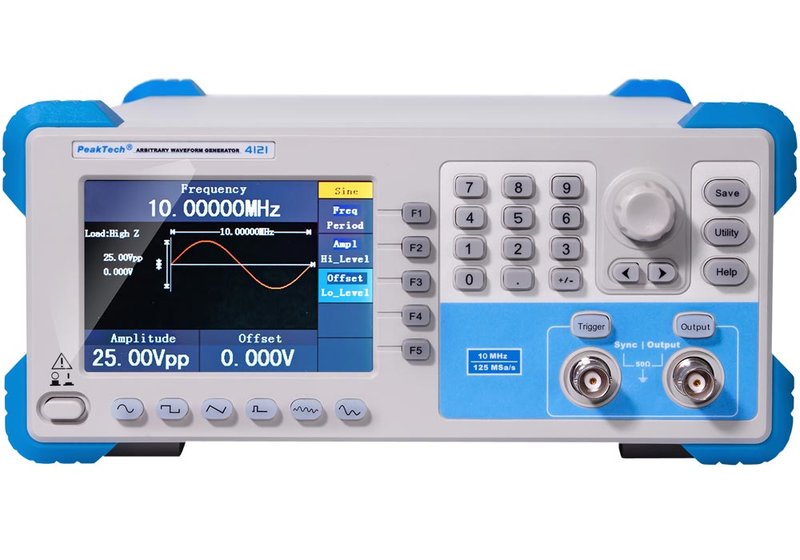

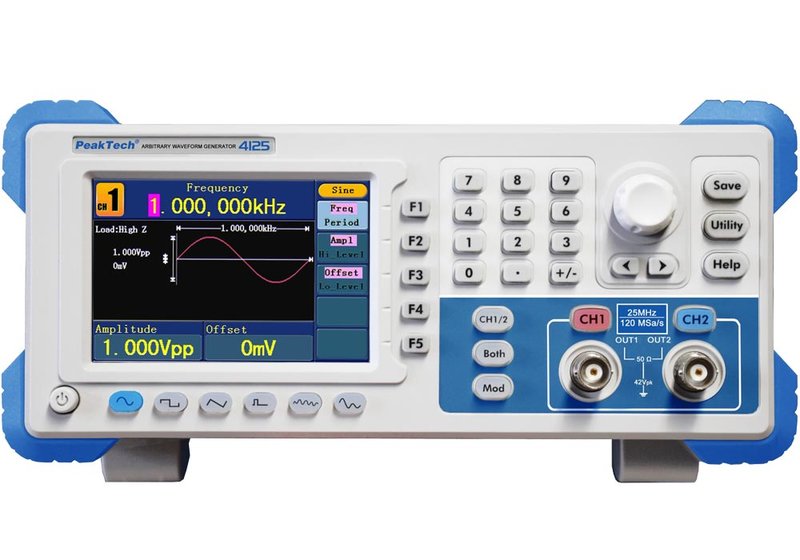

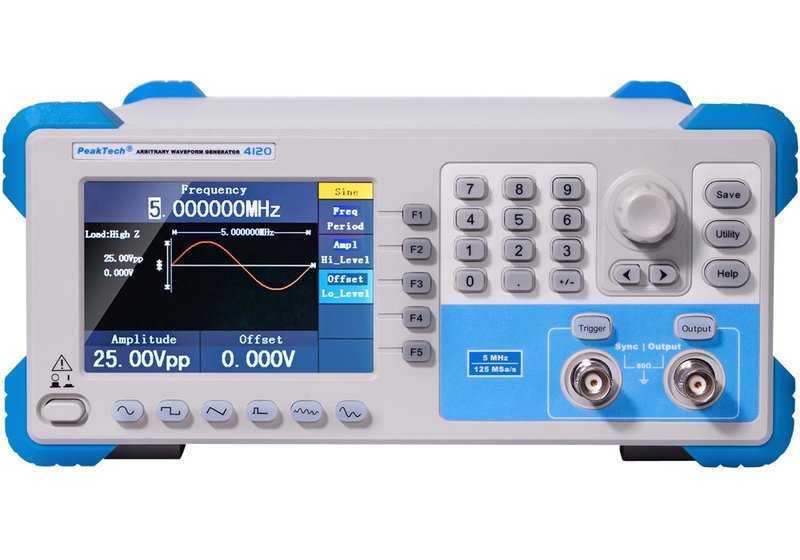

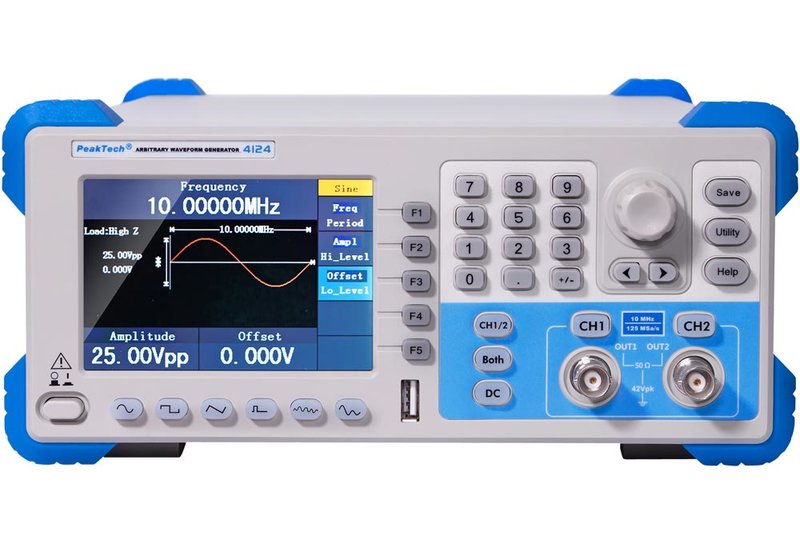

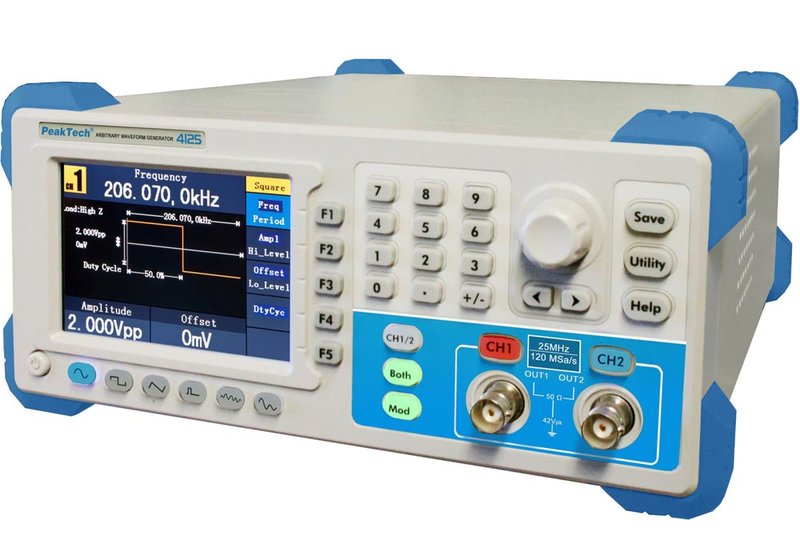

Model Overview

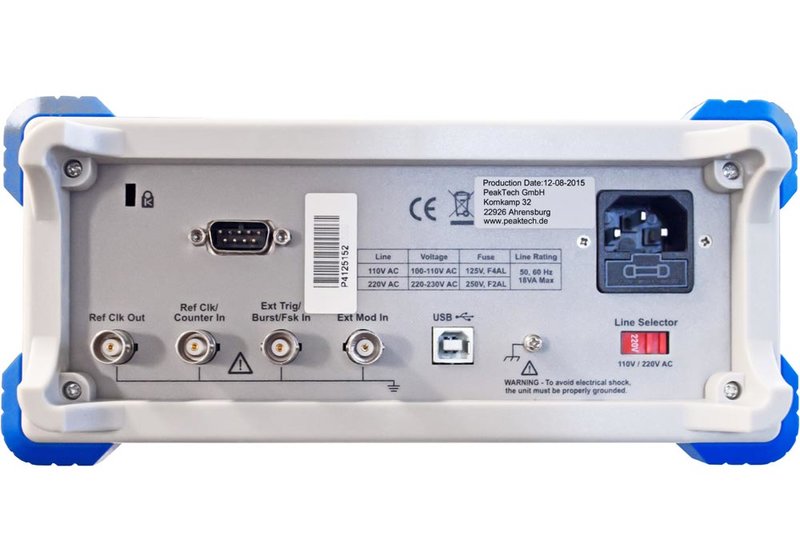

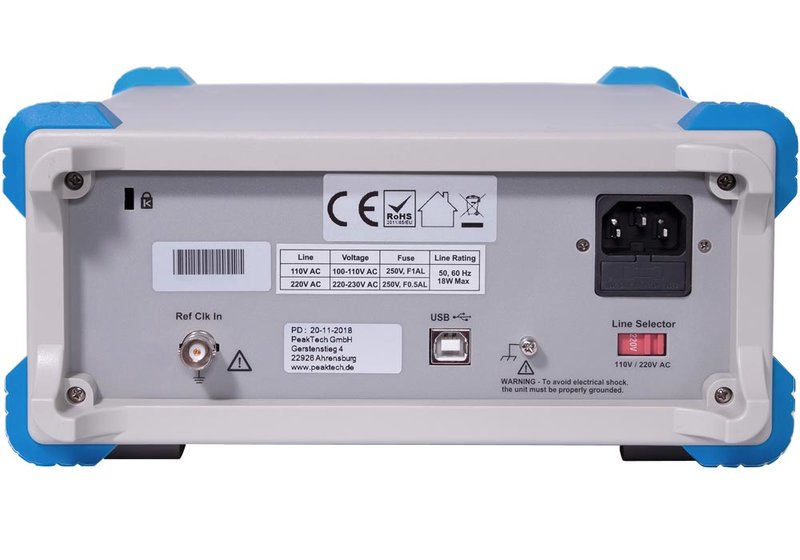

| Model | P4120 | P4121 | P4124 | P4125 | P4165 |
| Channels | 1 | 2 | 2 | ||
| Frequency range | 1 µHz...5 MHz (sine); arbitrary 1 µHz...5 MHz | 1 µHz...10 MHz (sine); arbitrary 1 µHz...5 MHz | 1 µHz...10 MHz (sine); arbitrary 1 µHz...10 MHz | 1 µHz...25 MHz (sine); arbitrary 1 µHz...10 MHz | 1 µHz...60 MHz (sine); arbitrary 1 µHz...10 MHz |
| Waveforms | Sine, square/pulse, ramp, white noise, arbitrary (exp. rise/fall, sin(x)/x, staircase etc.; 45 built-in signal and user definable arbitrary waveforms) | ||||
| Resolution | 14 bit | ||||
| Sample rate | 125 MS/s | 250 MS/s | |||
| Arbitrary waveform length | 2...8,000 points | 2...1,000,000 points | |||
| Modulations | - | AM, FM, PM, FSK, P4165 only: PWM; Burst and Sweep | |||
| Frequency counter | - | Frequency, period, positive pulse width, duty cycle; frequency range single channel 100 mHz...200 MHz; frequency resolution 6 digits/s | |||
| Special | - | Channel coupling, channel copy; ext. modulation input; ext. trigger input: ext. reference clock input | |||
| Display | 4"/10 cm TFT | ||||
| Interface | USB | ||||
| Dimensions (mm) | 235 x 110 x 295; 3 kg | ||||
Included: P 4120, 4121, 4124, 4125, 4165, power cord, USB interface cable, software for Windows, BNC-cable, manual on CD.
