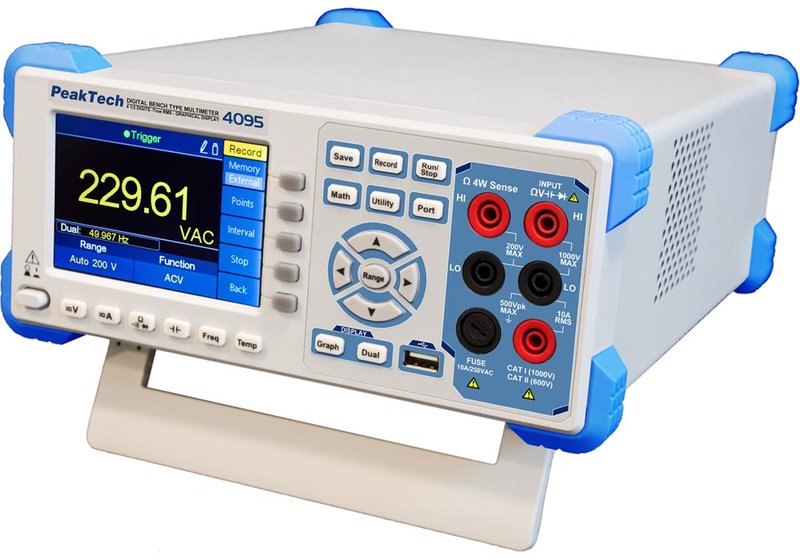

PeakTech P4095/P4096 Graphical Bench Multimeter, USB, LAN
Benefits of the DMMs P4095, P4096 Digital Multimeters With Graphic TFT Display
- Up to 200,000 counts.
- True RMS up to 100 kHz.
- Datalogger with internal storage (8 MB) or external USB-disc.
PeakTech P4095/P4096 Graphical Bench Multimeter, USB, LAN

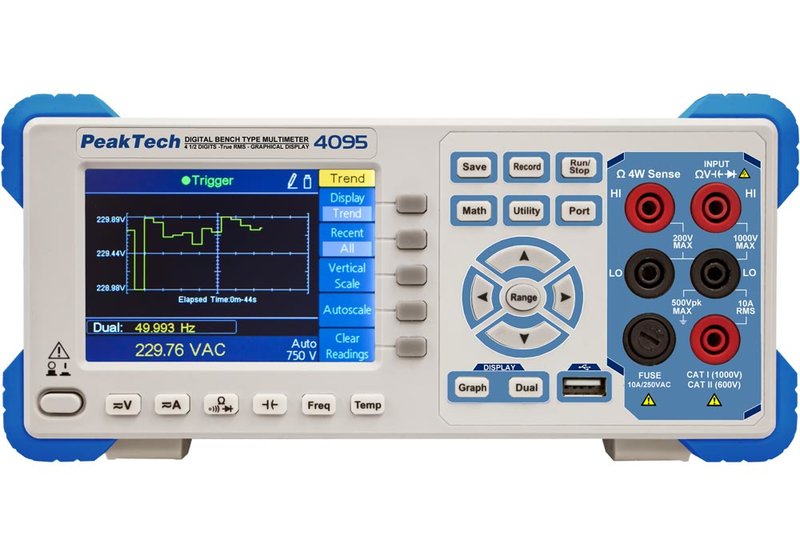

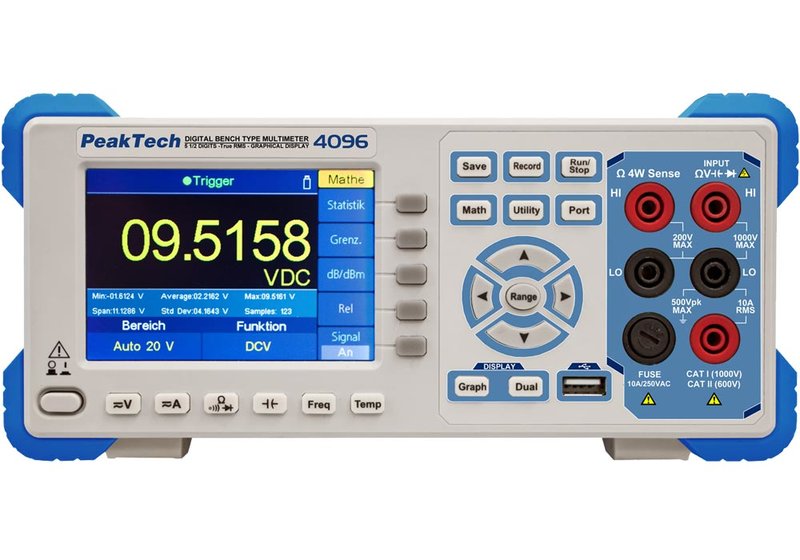

The precision table multimeters PeakTech P409x are equipped with a TFT graphic display for high-resolution display of the measured values, curve, function graphics etc. with up to 150 measurements per second. Depending on the model, the TFT display has 4½ digits (60,000 counts) or 5½ digits (200,000 counts). The devices have a variety of special functions, such as the dual measurement of two different measurement functions, an internal or external data logger, histogram, dB, pass/fail, thermal resistor or thermocouple measurements, trend curves, function graphics, average measurements or bar graphs. The versatile functions are completed by the true RMS value measurements up to 100 kHz. For control via software or via the SCPI protocol, the devices have USB, RS232 or an Ethernet/LAN interface for network integration.
- 4½ digits (60,000 counts) or 5½ digits (200,000 counts) TFT graphic display .
- Up to 150 measurments per second.
- Datalogger for up to 1 mio. points (8 MB internal) or 100 mio. points (external); 5 ms intervall.
- True RMS measurement up to 100 kHz, depending on measurement function.
- Automatic and manual range selection, AVG, MIN/MAX and relative function.
- Diode/continuity test and 2- or 3-wire resistance temperature detector (RTD) or themocouple measurement.
- Temperature measurement compatible with thermocouples type B/E/J/K/N/R/S/T or PT100/PT385.

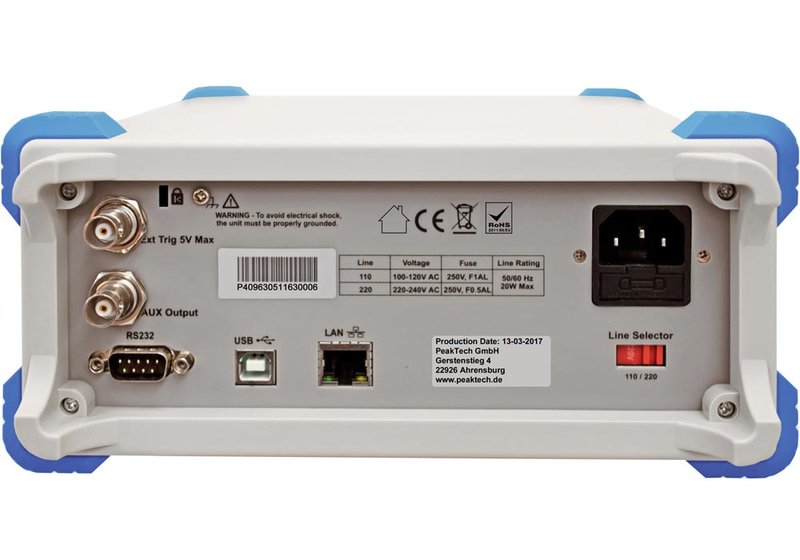

- USB, Ethernet/LAN, and RS232 interface.
- Device-control and data acquisition via SCPI protocol.
- Safety: EN 61010-1; CAT I 1000 V/CAT II 600 V.
Model Overview
| Model | P4095 | P4096 | |
| DC voltage | 600 mV/6/60/600/1000 V; ±0.02% + 0.01 | 200 mV/2/20/200/1000 V; ±0.0015% + 0.0005 | |
| AC current | 600 mV/6/60/600/750 V; ±0.2% + 0.06 | 200 mV/2/20/200/750 V; ±0.01% + 0.005 | |
| AC voltage, true RMS frequency | 20 Hz...100 kHz | 20 Hz...100 kHz | |
| DC current | 600 µA/6/60/600 mA/6/10 A; ±0.06% + 0.02 | 200 µA/2/20/200 mA/2/10 A; ±0.002% + 0.001 | |
| AC current | 60/600 mA/6/10 A; ±0.5% + 0.10 | 20/200 mA/2/10 A; ±0.015% + 0.005 | |
| AC current, true RMS frequency | 20 Hz...10 kHz | 20 Hz...10 kHz | |
| Resistance | 600 Ω/6/60/600 kΩ/6/60/100 MΩ; ±0.03% + 0.01 | 200 Ω/2/20/200 kΩ/2/10/100 MΩ; ±0.0030% + 0.0005 | |
| Frequency | 20 Hz...1 MHz; ±0.01% + 0.003 | 20 Hz...1 MHz ±0.002% + 0.001 | |
| Capacity | 2/20/200 nF/2/200/10000 µF; ±1% + 0.5 | 2/20/200/2000 nF/200/10000 µF; ±0.02% + 0.001 | |
| Temperature | -200...+660°C (RTD); + 0.08% + 0.002/-200...+1372°C (type K); ±0.5°C | -200...+660°C (RTD); +0.08% + 0.002/-200...+1372°C (type K); ±0.5°C | |
| Displaye | TFT 4½ digit (60,000 counts), 480 x 320 pixels | TFT 5½ digit (200,000 counts), 480 x 320 pixels | |
| Interface | USB, Ethernet/LAN, RS232 | ||
| Dimensions (mm) | 235 x 110 x 295; 3 kg | ||
Included: P4095 or 4096, power cord, interface cable, CD-ROM, test-leads, temperature probe, and user manual.
Information on product safety:
Manufacturer:
PeakTech Prüf- und Messtechnik GmbH, Gerstenstieg 4, 22926 Ahrensburg/DEU
www.peaktech.de
