PeakTech P14xx Series Low-Cost Oscilloscopes up to 100MHz
Benefits of the P14xx DSO for Education and Hobby
- Optimal price-performance ratio - ideal for training and hobby.
- 2 channels, bandwidths up to 100 MHz, sample rates up to 1 GS/s.
- Extensive range of functions; USB interface.
PeakTech P14xx Series Low-Cost Oscilloscopes up to 100 MHz

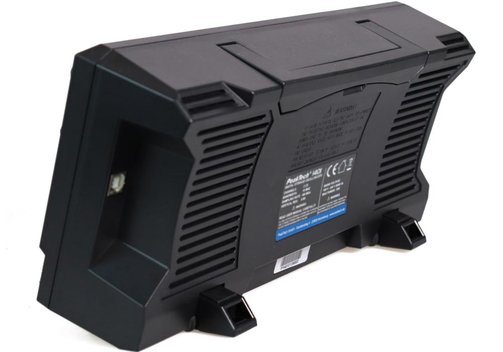

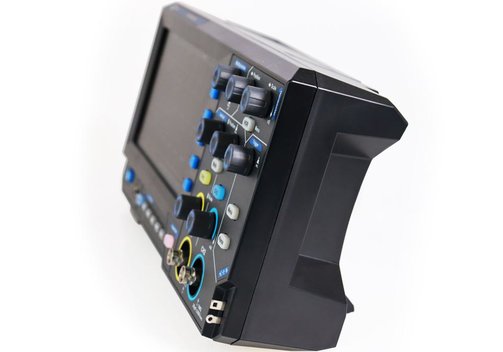

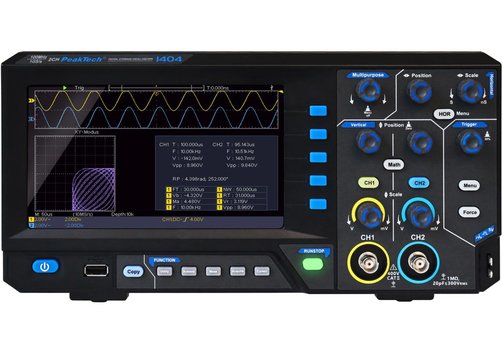

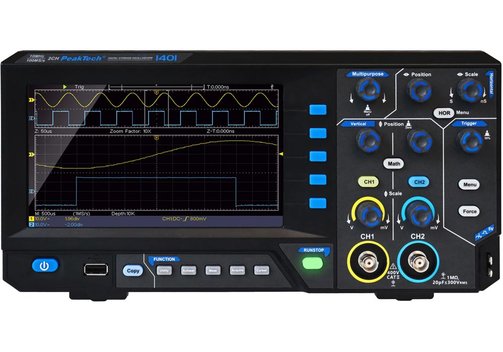

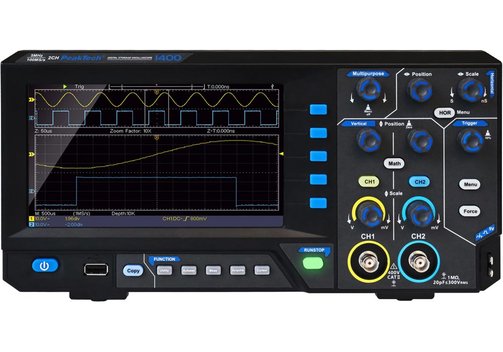

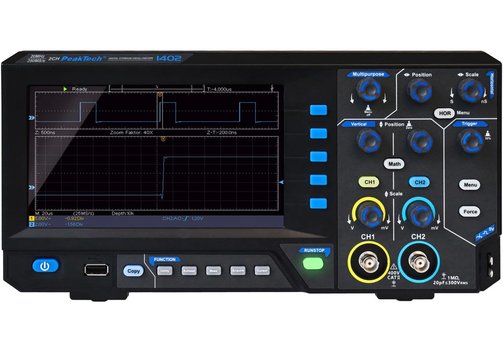

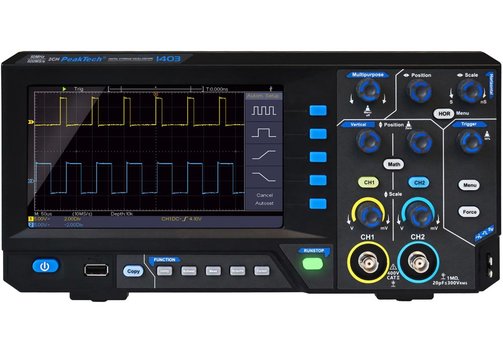

Peaktech P1400, P1401, P1402, P1403, P1404 up to 1 GS/s, 8 bit
The PeakTech P14xx series has been specially developed for the education/training and hobby sector. The series offers fully-fledged DSO (Digital Storage Oscilloscopes) at a very attractive price/performance ratio without compromising on functionality or technical functions. All standard market functions such as autoset and autoscale, mathematical measurement functions, cursor or XY mode and zoom function are integrated. Signals are stored either internally with memory space for 16 waveforms or externally on a USB memory in TXT, CSV or BIN format, which can be read out with the supplied software. In addition, configurations can be saved internally or screenshots of the display can be saved externally. The signal display can be accessed quickly using the autoset function; the measured signals can be displayed even more precisely as required using AutoScale, although these settings can of course also be made completely manually using the button control.
- Affordable 2-channel oscilloscopes.
- Analog bandwidth 5, 10, 20, 50, or 100 MHz.
- 8-bit resolution, max. 100, 250, 500 MS/s or 1 GS/s sampling rate.
- 7"/17.5 cm TFT color display with 800x480 pixels.
- Recording length of max. 10,000 points
- Automatic measuring modes, XY mode and cursor function.
- USB device connection for real-time data transfer.
USB host connection for external USB data carriers. - Handy and flat housing design with carrying handle.
- Autoset function for user-friendly operation.
Model Overview
| Model | P1400 | P1401 | P1402 | P1403 | P1404 |
| Analog channels | 2 | ||||
| Bandwidth | 5 MHz | 10 MHz | 20 MHz | 50 MHz | 100 MHz |
| Resolution | 8 bit | ||||
| Sample rate | 1 channel/2 channels: 100 MS/s | 1 channel: 250 MS/s, 2 channels: 125 MS/s | 1 channel: 500 MS/s, 2 channels: 250 MS/s | 1 channel: 1 GS/s, 2 channels: 500 MS/s | |
| Memory depth | 10,000 points | ||||
| Rise time | <70 ns | <35 ns | <17.5 ns | <7 ns | <3.5 ns |
| Display | 7"/17.5 cm color TFT, 800x480 pixels | ||||
| Interfaces | USB | ||||
| Safety | EN 61010-1; CAT II 400 V | ||||

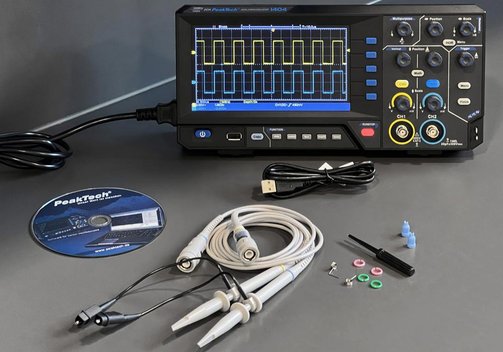

Included: Oscilloscope P 1400, 1401, 1402, 1403, or 1404, mains cable, USB cable, probes, software CD for Windows, and operating instructions.
