Benefits of the NetCOM-PLUS Series Industrial Interface Converters in Rugged Metal Housing

Use devices with RS232 in an Ethernet/LAN.
1, 2, 4, or 8 serial ports. RS232 and/or RS485/422.
Models with WLAN or PoE - power over Ethernet.

NetCOM-PLUS Series Ethernet/WLAN to 1/2/4/8/16-Port RS232/RS422/RS485

Use these converters to connect "classic" serial devices to a TCP/IP ethernet network. Control serial instruments or printers over a TCP/IP ethernet/LAN, the internet or wireless LAN.

Converts ethernet to serial COM RS232/RS422/RS485.
1, 2, 4, 8, or 16 ports.
Ethernet/LAN: Auto-detecting 1000BaseT/100BaseTx/10BaseT (GigaLAN, RJ45).
Option WLAN/Wirless LAN: IEEE802.11 n/b/g.
Configuration utility automatically finds the NetCOM devices in the network. Supports protocols: TCP/IP, UDP, Telnet, DHCP, ICMP, HTTP, SNMP V1/2c/3, DNS.
Configuration over driver panels, serial port, Telnet, web browser or SNMP.
Automatic mode switching between driver and raw mode.
Models with ART (Automatic Receive Transmit Control).
Models with POE: Power over Ethernet¹⁾.

Model Overview

Model	Option¹⁾	Option²⁾	Option³⁾	Conversion from	to serial	ART⁴⁾	Serial rate	Power supply

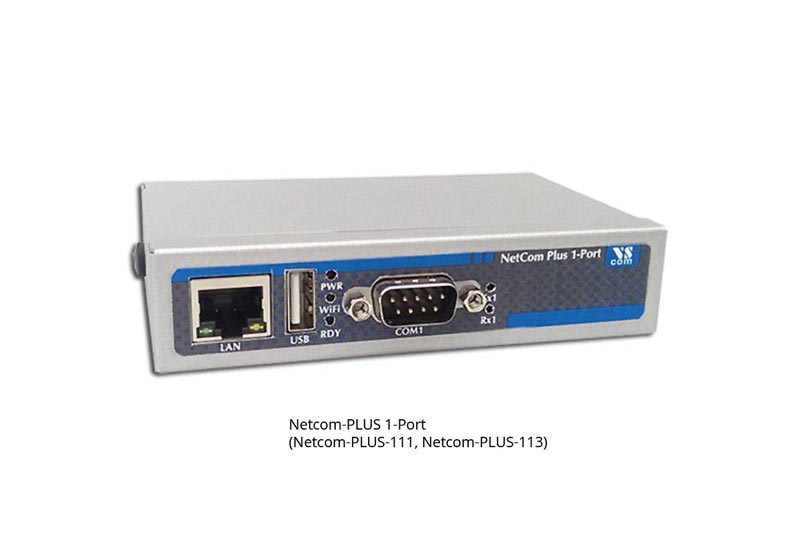

Netcom-PLUS-111	-	-WLAN	-	Ethernet: Auto-detecting 1000BaseT/100BaseTx/10BaseT (GigaLAN, RJ45). Wireless (Option⁶⁾: IEEE 802.11b/g/n operation in access point or client mode. Protocols: TCP/IP, UDP, Telnet, PPP, DHCP, ICMP, HTTP, LPD, SNMP V1/2c/3, DNS, openVPN.	1x 9-pin D-sub, RS232	yes	RS232: 200 bps...921.6/1000 kbps, RS422/485: 200 bps...3.7 Mbps	external, optional accessory
Netcom-PLUS-113	-	-WLAN	-		1x 9-pin D-sub, RS232/RS422/RS485	yes		external, optional accessory
Netcom-PLUS-211	-	-WLAN	-		2x 9-pin D-sub, RS232	yes		external, optional accessory
Netcom-PLUS-213	-	-WLAN	-		2x 9-pin D-sub, RS232/RS422/RS485	yes		external, optional accessory

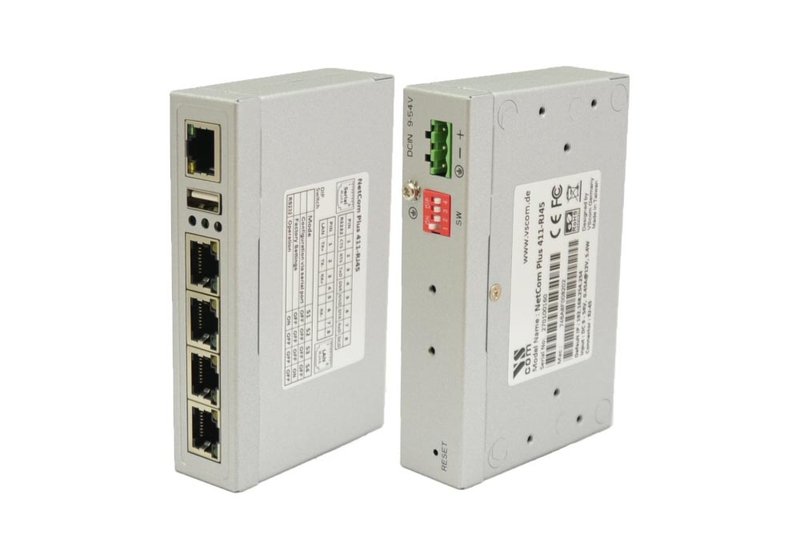

Netcom-PLUS-411	-POE	-WLAN	-RJ45 (EOL)		4x 9-pin D-sub, RS232	yes		external, optional accessory
Netcom-PLUS-413	-POE	-WLAN	-		4x 9-pin D-sub, RS232/RS422/RS485	yes		external, optional accessory

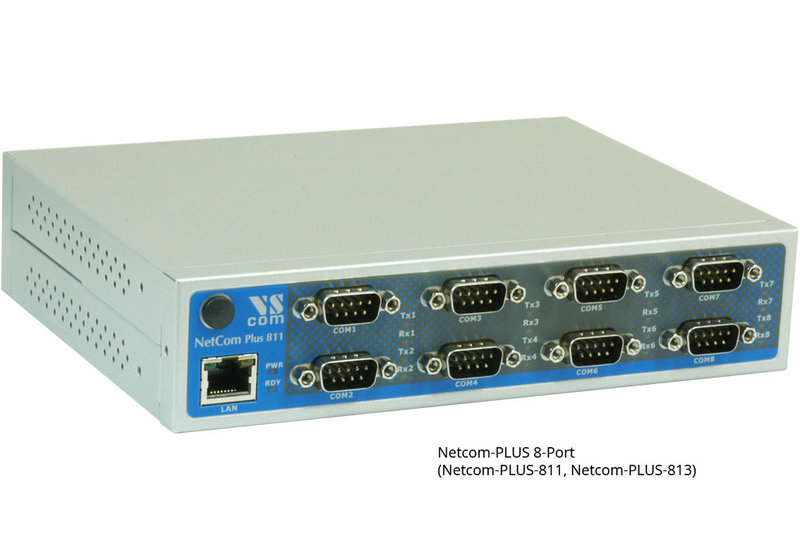

NetCOM-PLUS-811	-POE	-WLAN	-		8x 9-pin D-sub, RS232	yes		external, optional accessory
NetCOM-PLUS-813	-POE	-WLAN	-		8x 9-pin D-sub, RS232/RS422/RS485	yes		external, optional accessory
NetCOM-PLUS-1611	-	-	-		16x 9-pin D-sub, RS232	yes		external, optional accessory
NetCOM-PLUS-1613	-	-	-		16x 9-pin D-sub, RS232/RS422/RS485	yes		external, optional accessory

Options and remarks:

Power over Ethernet: Must be supplied from the Ethernet, for eample with Power over Ethernet Splitter VS-POE 10.
802.11 n/g/b incl. antenna.
With RJ45 connectors.
Automatic Receive Transmit Control (or by RTS).
Models with -POE: No power supply adaptor included!
IEEE 802.11b/g, max. 54 MB/s. Encryption WPA-PSK/TKIP, WEP-128. Infrastructure mode (uses access point), adhoc mode (direct connection to a PC/laptop).

Options for the NetCOM-PLUS, ModGate-Plus, USB-COM Plus Models

starting € 7,14

Datasheet_VSCOM_Netcom-Plus_en.pdf
