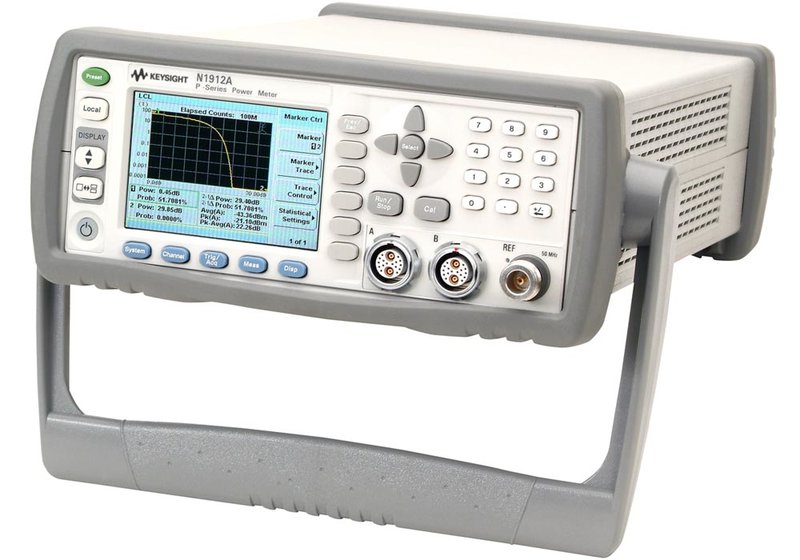

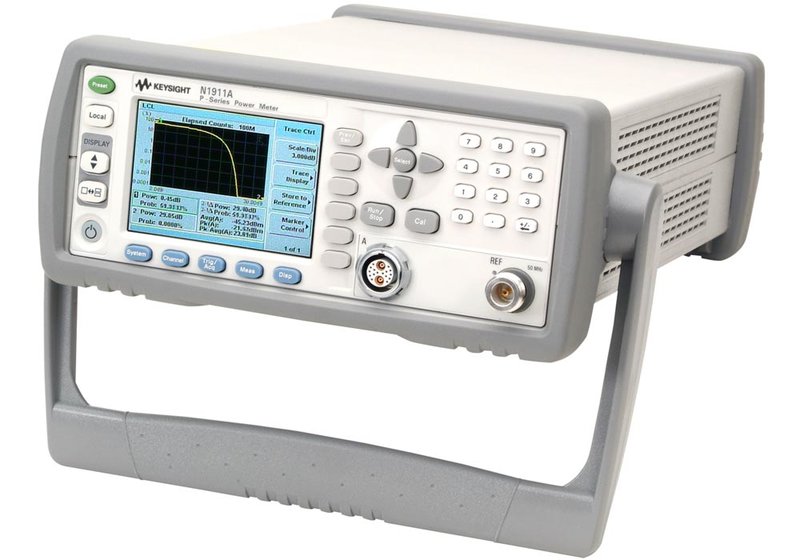

Keysight N1911A, N1912A P Series 1-/2-Channel RF Power Meter
Benefits of the N191xA P Series Average, Peak, Peak-to-Average RF Power Meter
- Single-channel and dual-channel power meters with LXI interface.
- Frequency range for example when used with Keysight N1921/22A P series wideband power sensor: 50 MHz to 18 GHz or 40 GHz.
- Average, peak and peak-to-average ratio power measurements.
Keysight N1911A, N1912A P Series 1-/2-Channel RF Power Meter
The Keysight N1911A and N1912A P series power meters are LXI Class-C compliant instruments. Hence, they are easy-to-use especially with the integrated web browser that provides a convenient way to configure the instruments' functionality. The P series power meters are supported by the Keysight BenchVue software and BV0007B power meter/sensor control and analysis app. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. A BenchVue software license (BV0007B) is included with your instrument. When used with the N192xA wideband power sensors, the N191xA P series power meters provide a measurement frequency range from 50 MHz to 40 GHz with an internal zero and calibration capability.
- Average triggering for average power measurement.
- 30 MHz video bandwidth.
- Single shot real time capture at 100 MS/s.
- Key measurements: Peak, average, peak-to-average ratio, rise time, fall time and pulse width.
- 22 predefined formats: WiMAX, DME, HSDPA, etc.
- One screen view for pulse measurement analysis: Auto scale, auto gate, rise/fall time, duty cycle, etc.
- Internal zeroing and calibration while connecting to the DUT.
- High Speed Complementary Cumulative Distribution Function (CCDF) statistical analysis.
- Difference and ratio math functions: (A-B, B-A, A/B and B/A).
- Compatible with the industry standard 8480 and E series sensors which provide a wide dynamic range -70...+44 dBm, and a frequency coverage 9 kHz...110 GHz.
- Compatibility with E932x power sensors.
- Versatile connectivity with USB, LAN (LXI-C compliance), and GPIB standard.
- 2-year calibration cycle.
- A BenchVue software license (BV0007B) is included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences.
Model Overview
Model | N1911A | N1912A |
Description | Single channel power meter | Dual channel power meter |
Compatible power sensors | P series power meters are compatible with all Keysight P series wideband power sensors, E series sensors, 8480 series sensors and N8480 series sensors. Compatibility with the 8480 and E series power sensors or N8480 series power sensors may require free-of-charge firmware upgrade, depending on firmware installed | |
Frequency range | N1921A P series wideband power sensor, 50 MHz...18 GHz; N1922A P series wideband power sensor, 50 MHz...40 GHz | |
Sampling rate | Max. 100 MS/s, continuous sampling | |
Bandwidth | Video bandwidth ≥30 MHz; single-shot bandwidth ≥30 MHz | |
Rise time and fall time | ≤13 ns (for frequencies ≤500 MHz) | |
Minimum pulse width | 50 ns (recommended minimum pulse width viewable on the power meter, where power measurements are meaningful and accurate, but not warranted) | |
Overshoot | ≤5% (only when the Off video bandwidth is selected) | |
Basic accuracy of average power measurement | N1921A: ≤±0.2 dB or ±4.5%; N1922A: ≤±0.3dB or ±6.7% | |
Dynamic range | -35...+20 dBm (>500 MHz); -30...+20 dBm (50...500 MHz) | |
Maximum capture length | 1 s | |
Maximum pulse repetition rate | 10 MHz (based on 10 samples per period) | |
Measurement speed | ≥1500 readings/s via remote interface | |
Interfaces | USB 2.0, Ethernet/LAN (LXI-C), GPIB; SCPI compatible |
Included: Power meter N 1911 A or N 1912 A, power cord, USB cable type A to mini-B, documentation CD-ROM, Keysight Instrument Control DVD, IO Libraries Suite, Command Expert, BenchVue software.
