Keysight InfiniiVision MSOX4000A MegaZoom Oscilloscopes up to 1.5GHz, 5GS/s, Touch
Benefits of the Keysight MSOX4000A Series Mixed-Signal Oscilloscopes with Touchscreen
- High precision and speed with update rate 1 million Waveforms/s.
- Great usability with 12.1"/30.7 cm capacitive touch display.
- Powerful integrated functions and versatile trigger features. Mixed-signal.

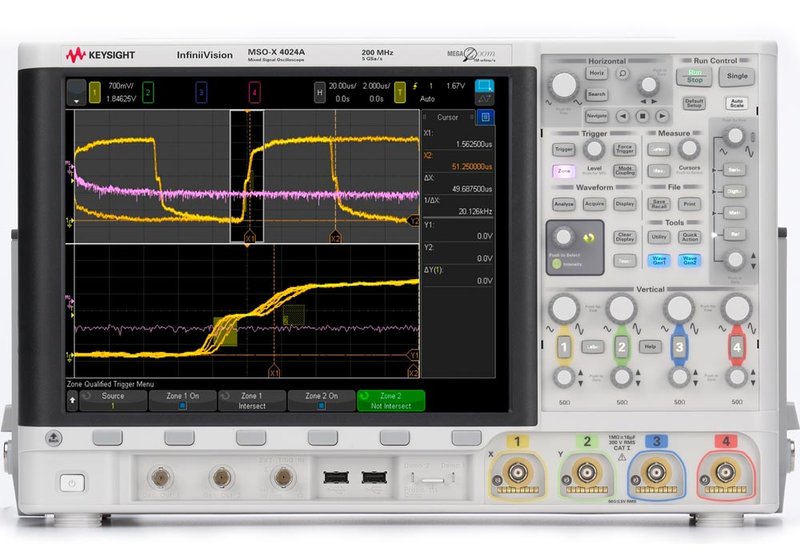

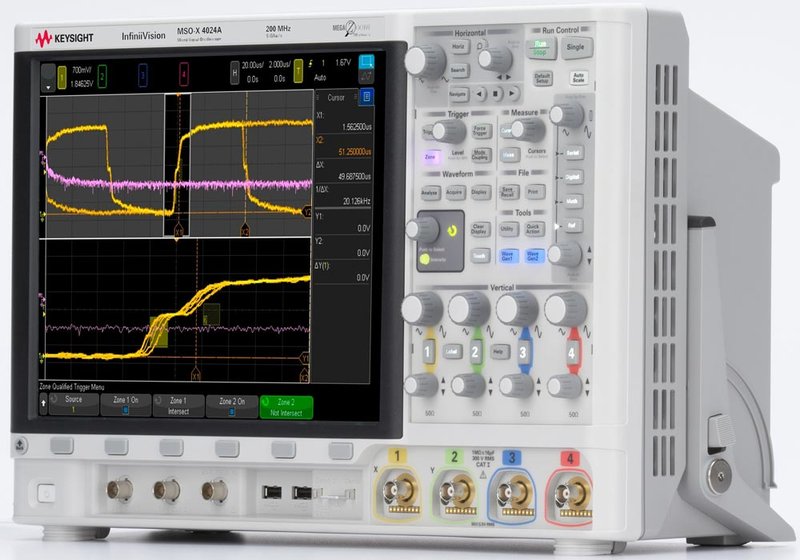

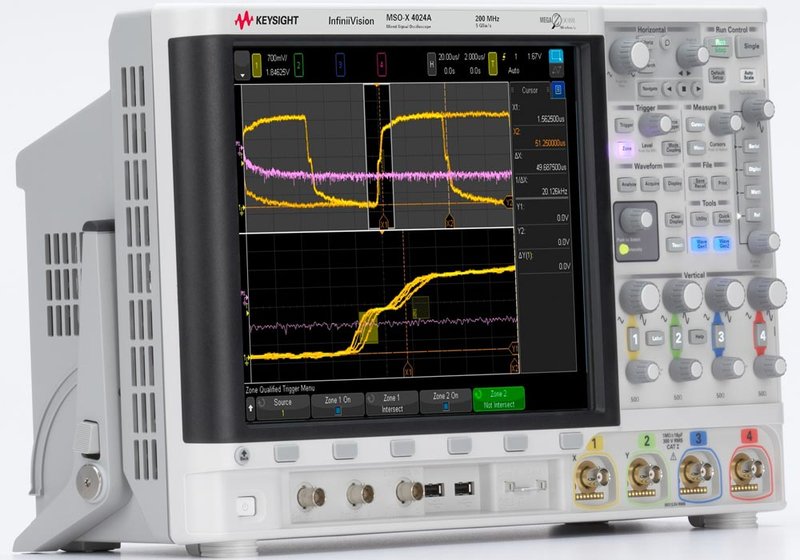

Keysight MSOX4000A Series InfiniiVision 4000 X Mixed-Signal Oscilloscopes up to 1.5 GHz, 5 GS/s

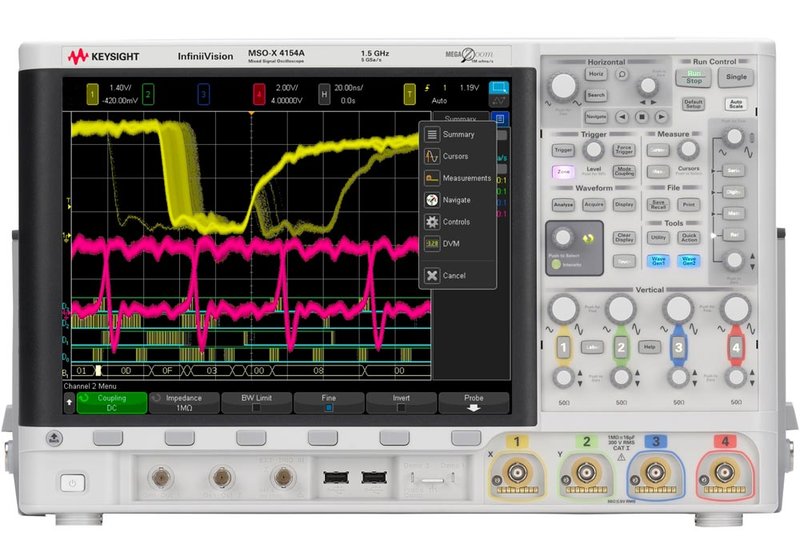

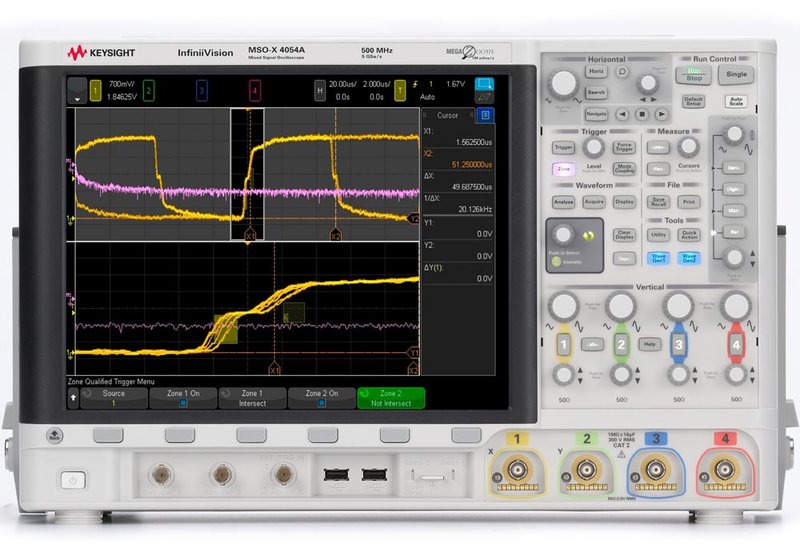

Models Keysight MSOX4022A, MSOX4024A, MSOX4032A, MSOX4034A, MSOX4052A, MSOX4054A, MSOX4104A, MSOX4154A
The perfect combination of speed, usability and integration: The Keysight InfiniiVision 4000 X series oscilloscopes are engineered for next-generation performance, delivering waveform update rates of >1 million wfms/s to display the most signal detail. An industry-leading 12.1"/30.7 cm capacitive touch screen with innovative hardware-based zone touch triggering provides the most intuitive interface to get you answers faster. The Keysight InfiniiVision 4000 X-Series provides maximum investment protection with fully upgradable 5-instruments-in-1: Oscilloscope channels, logic channels, digital voltmeter (DVM), dual-channel function/arbitrary waveform generator, frequency response analyzer, 8 digit hardware counter, and serial protocol analyzer including USB. All are upgradable, including bandwidth.
- Highend MegaZoom IV oscilloscopes.
- 2 or 4 analog channels.
- 16 digital/logic analysis channels (MSO/mixed signal models).
- Bandwidth 200, 350, 500 MHz, 1, 1.5 GHz.
- Max. sample rate 5 GS/s.
- Max. memory depth 4 Mpts; segmented memory standard.
- Max. waveform update rate >1,000,000 wfms/s.
- Zone touch trigger standard.
- Optional mask/limit test.
- Serial protocol analysis options: I2C/SPI, UART/RS232, CAN/CAN-dbc/CAN-FD/LIN/LIN symbolic, SENT, FlexRay, I2S, MIL-STD1553, CXPI, ARINC429, USB 2.0, Manchester/NRZ, USB PD (application-specific bundle licencing).
- Advanced analysis options: Power analysis, USB 2.0 signal quality test, HDTV analysis, FRA, NFC.
- Standard enhanced FFT.
- Multi-domain analysis: Gated FFT.
- Advanced math: Standard, display one function.
- Optional 20 MHz function/arbitrary waveform generator, dual-channel.
- Integrated DVM standard.
- Integrated hardware counter standard: 5 digit frequency or period counter (8 digits with external 10 MHz clock reference).
- 12.1"/30.7 cm capacitive touch display.

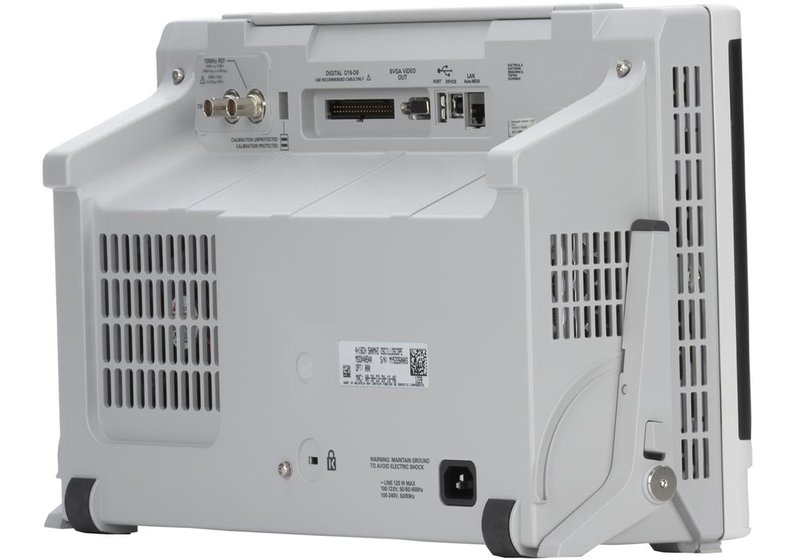

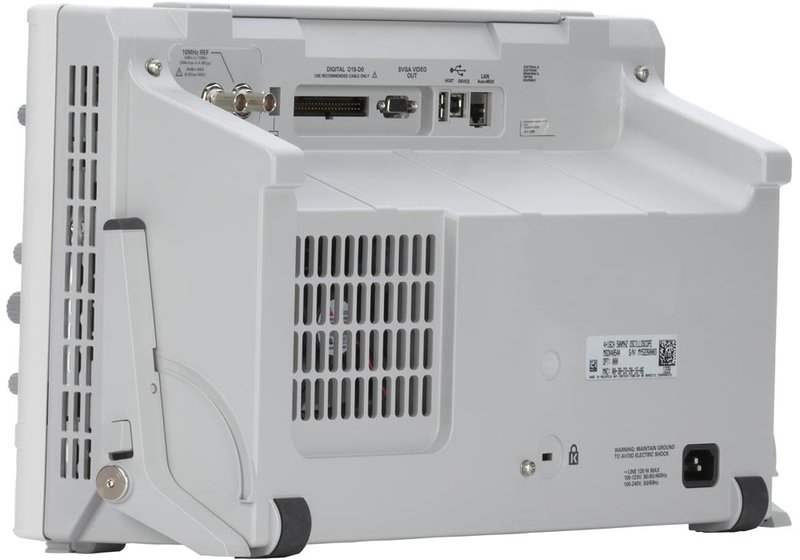

- Connectivity: USB 2.0 Host & Device (USB mouse and keyboard support), Ethernet/LAN/LXI, SVGA video output; optional GPIB.
Model Overview
| Model | DSOX4022A DSOX4024A | DSOX4032A DSOX4034A | DSOX4052A DSOX4054A | DSOX4104A | DSOX4154A | MSOX4022A MSOX4024A | MSOX4032A MSOX4034A | MSOX4052A MSOX4054A | MSOX4104A | MSOX4154A |
| Analog channels | 2 | 4 | 2 | 4 | 2 | 4 | 4 | 4 | 2 | 4 | 2 | 4 | 2 | 4 | 4 | 4 |
| Bandwidth | 200 MHz | 350 MHz | 500 MHz | 1 GHz | 1.5 GHz | 200 MHz | 350 MHz | 500 MHz | 1 GHz | 1.5 GHz |
| Sample rate | 5 GS/s half channel, 2.5 GS/s all channel | |||||||||
| Waveform update rate | >1 million wfms/s | |||||||||
| Memory depth | Standard 4 Mpts, standard segmented memory | |||||||||
| MegaZoom | yes | |||||||||
| Logic analysis (mixed-signal) | - (upgradeable) | 16 digital channels | ||||||||
| Signal generator | Optional: 2 channels, sine (20 MHz), square/pulse (20 MHz), ramp/triangle (200 kHz), pulse (10 MHz/min. pulse width 20 ns), noise (typ. 20 MHz), sinc (1 MHz), exponential rise/fall (5 MHz), cardiac (200 kHz), Gaussian pulse (5 MHz), arbitrary waveform: 1...8192 points, 10 bit resolution, sample-rate 100 MS/s, filter bandwidth 10 MHz; modulation: AM, FM, FSK | |||||||||
| Voltmeter | Standard: ACRMS, DC, DCRMS, frequency; resolution ACV/DCV: 3 digits, frequency: 5.5 digits, measuring rate 100 times per s; autoraging | |||||||||
| Counter | 5-digit frequency or period counter (8 digits with external 10 MHz clock reference) | |||||||||
| Display | 12.1"/30.7 cm high-definition capacitive touch display | |||||||||

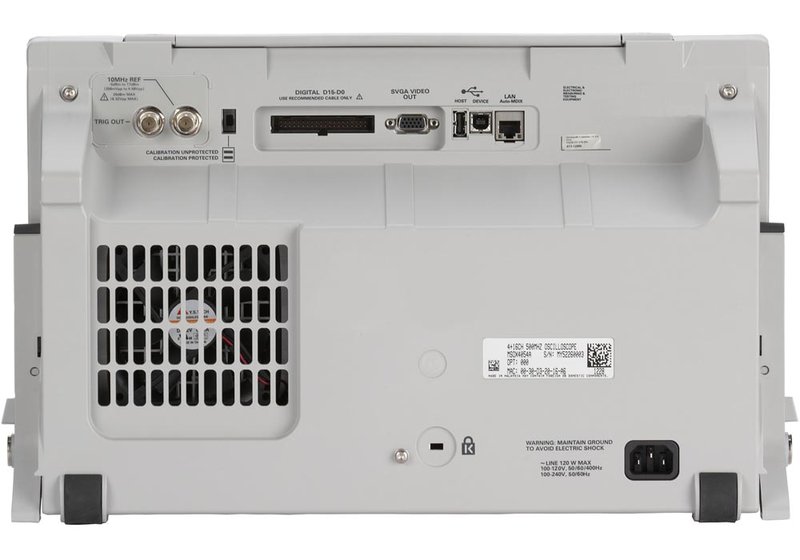

| Connectivity | USB 2.0 Host (3x) & Device, USB test and measurement class (USBTMC) compatible; 10/100Base-T Ethernet/LAN, LXI IPv6 extended function, web remote control, VNC web interface (via major web browsers); SVGA out on rear panel; optional GPIB port (N4865A GPIB-to-LAN adaptor) | |||||||||
Included: Keysight MSOX 4024 A, 4034 A, 4054 A, 4104 A, or 4254 A, certificate of calibration (recommended calibration interval 2-year), 1 probe per channel (N2894A 700 MHz passive probe, 10:1 attenuation), N2756A 16-digital-channel MSO cable (1 per oscilloscope included on all MSO models), localized front panel overlays, interface, and built-in help system, power cord, front panel protection cover, CD with user’s guide, service guide, and programmer’s manual.
Agilent’s Electronic Measurement Group is now Keysight Technologies.
Information on product safety:
Manufacturer:
Keysight, 1400 Fountaingrove Parkway, Santa Rosa, CA/USA
www.keysight.com
(Keysight Technologies Deutschland GmbH)
