Micsig MHO6 Series 12bit 8-Channel Oscilloscopes 350/500MHz/1GHz
Benefits of MHO68-1000, MHO68-500, and MHO68-350 High Resolution Oscilloscopes
- Ultra-thin body, 16"/40.6 cm touch-screen and HDMI.
- 8 channels, bandwith 350 MHz, 500 MHz, or 1 GHz.
- 12 bit resolution, 6 GS/s sample rate, 1800 MPts memory depth.
Micsig MHO6 Series 12 bit 8-Channel Oscilloscope up to 350/500 MHz/1 GHz

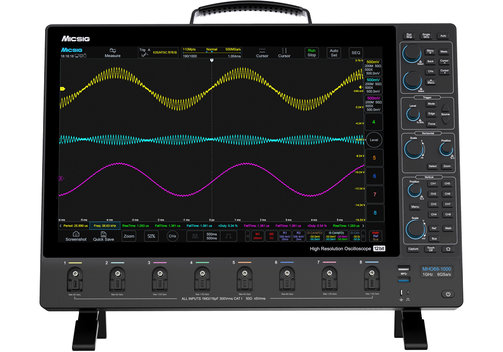

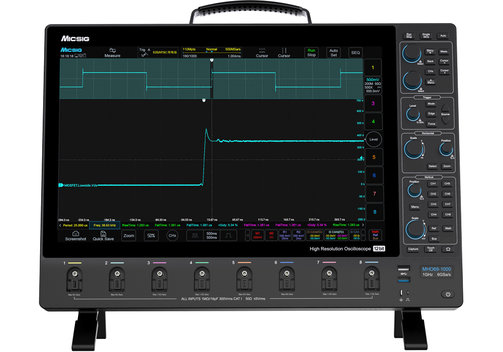

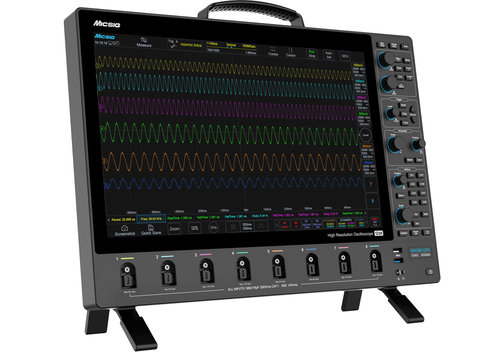

The Micsig MHO6 series is a family of 12 bit high-resolution oscilloscopes with a bandwidth of 350 MHz, 500 MHz, or 1 GHz, 6 GS/s sampling rate, 8 analog channels, an a storage depth of 1800 million points (Mpts). It is the ideal splution for faster circuit analysis and more synchronized signal testing. The MHO6 devices have a ultra-thin design of 3.52 cm and a wide 16"/40.6 cm touch-screen.
- Ultra-thin, compact oscilloscope.
- 8 analog input channels.
- Bandwidth 350 MHz, 500 MHz, or 1 GHz.
- High 12 bit resolution; sampling rate 6 GS/s.
- Memory depth 1800 Mpts.
- 16"/40.6 cm touch-screen and HDMI output.

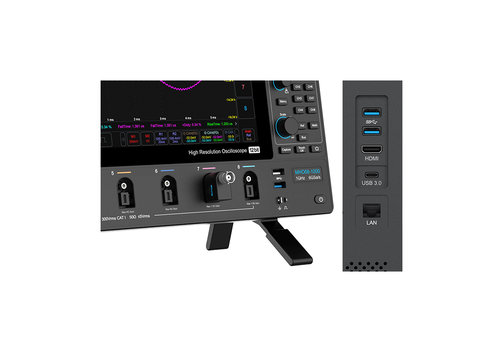

- Interfaces: USB host and device, LAN/Ethernet.
Model Overview T&M
| Series | MHO6 | ||
| Model | MHO68-350 | MHO68-500 | MHO68-1000 |
| Analog channels | 8, input impedance 50 Ω/1 MΩ | ||
| Bandwidth | 350 MHz | 500 MHz | 1 GHz |
| Rise time | ≤0.4 ns | ≤0.7 ns | ≤1 ns |
| Sample rate | 6 GS/s | ||
| Resolution | 12 bit | ||
| Max. waveform capture rate | n. s. | ||
| Memory depth | 1800 MPts | ||
| Display | 16"/40.6 cm touch, 1920x1200 resolution; HDMI | ||
| Interfaces | USB, LAN | ||
