Gossen Metrawatt METRAHIT PM Series 4 6/7-place Digital Multimeters, 60,000 Digits

Benefits of the GMC-I/Gossen Metrawatt METRAHIT PC Handheld Digital Multimeters with 60,000 Digits Resolution

• Highend handheld multimeters, Gossen Metrawatt qualiy product.
• 4⁶/₇-place, 60,000 digits resolution.
• Illuminated display and all basic measurement functions on board.

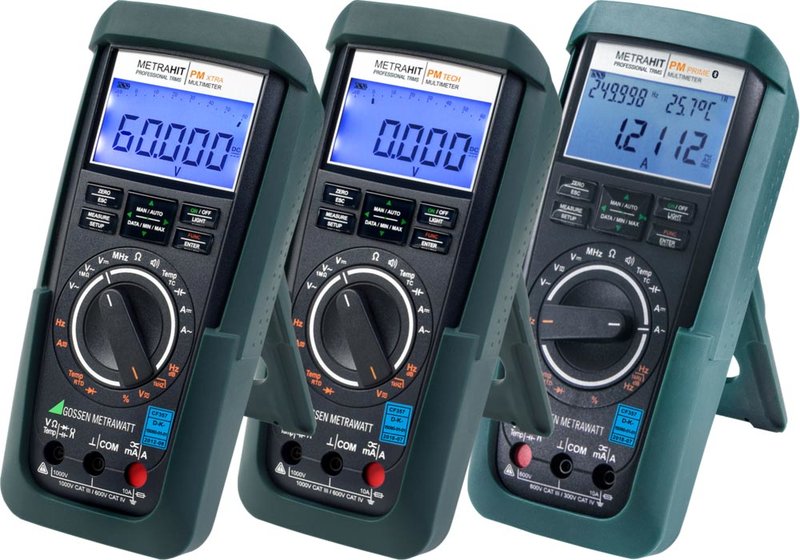

Gossen Metrawatt METRAHIT PM Series 4⁶/₇-place Digital Multimeters, 60,000 Digits

Models METRAHIT PM TECH (ETEC, M253A), PM XTRA (EXTRA, M250A), PM PRIME (ULTRA, M248A), PM PRIME BT (M248B)

The Gossen Metrawatt METRAHIT PM series are 4⁶/₇-place highend digital multimeters for professional applications with a resolution of 60,000 digits. All models have a rugged, handy housing a large, illuminated display.

• Standard for PM series:
  • Resolution: 60,000 digits, 4⁶/₇-place, basic accuracy of ±0.05% (VDC).
  • 3 connector jacks with patented automatic blocking sockets (ABS), fuse (not with ESPECIAL).
  • DAkkS calibration certificate included.
  • Large, illuminated display with 15 mm character height.
  • TRMS (true RMS) AC, AC+DC function.
  • Measuring category: 1000 V CAT III and 600 V CAT IV (except for ESPECIAL), IP52 protection.
  • IR interface for system integration.

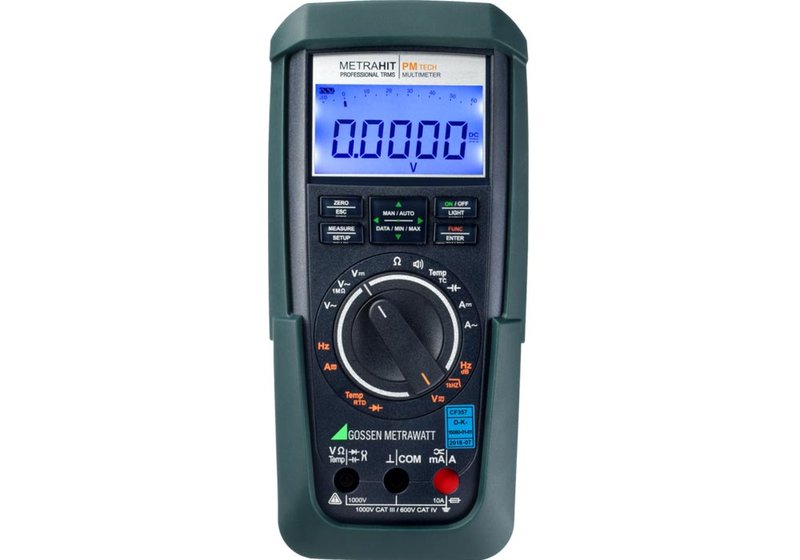

• METRAHIT PM TECH with 23 multimeter functions, same as METRAHIT ESPECIAL + capacitance:
  • Same applications as ▸METRAHIT AM TECH but with higher resolution and system compatible thanks to IR interface.
  • Clip factor adjustable for current sensors (V) and transformers (A).
  • Current ranges optimized for 4...20 mA measuring transducer output.

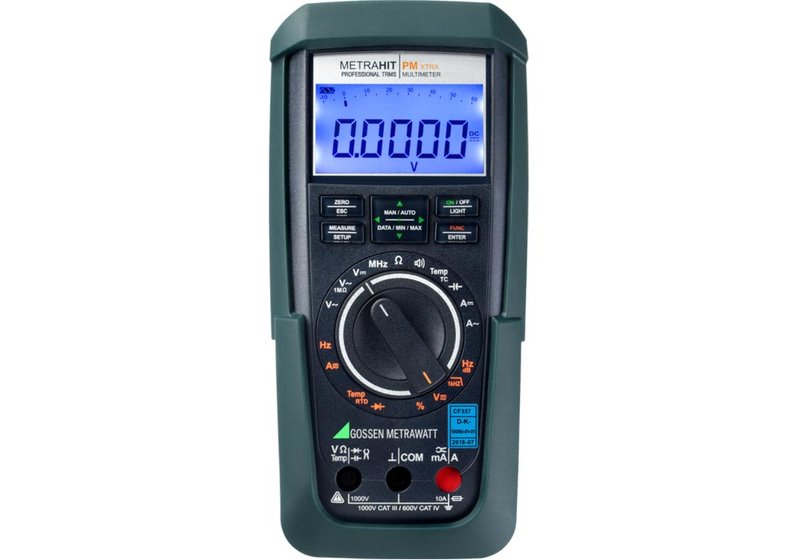

• METRAHIT PM XTRA with 26 multimeter functions, same as METRAHIT ETECH + Pt100/1000 + duty cycle:
  • Same as ▸METRAHIT AM XTRA with larger data memory, higher resolution and VAC bandwidth up to 100 kHz.
  • IR interface and integrated measurement data memory for 61,600 measured values.
  • Power pack connector socket.

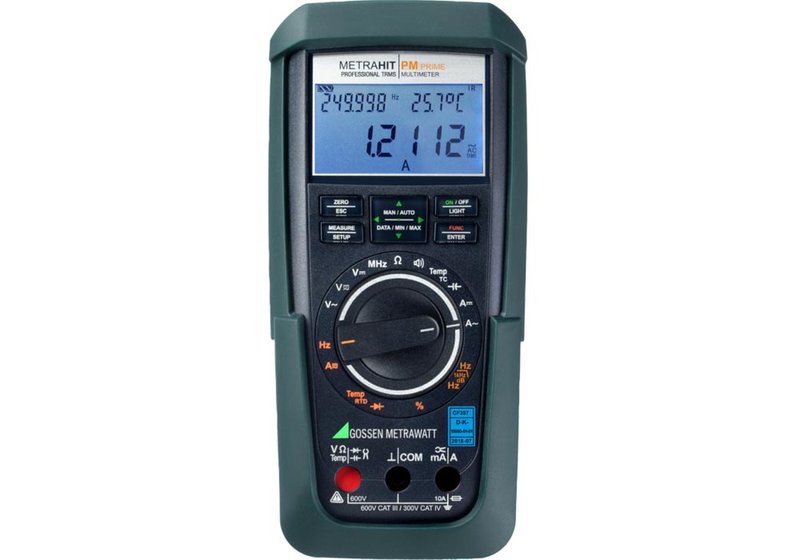

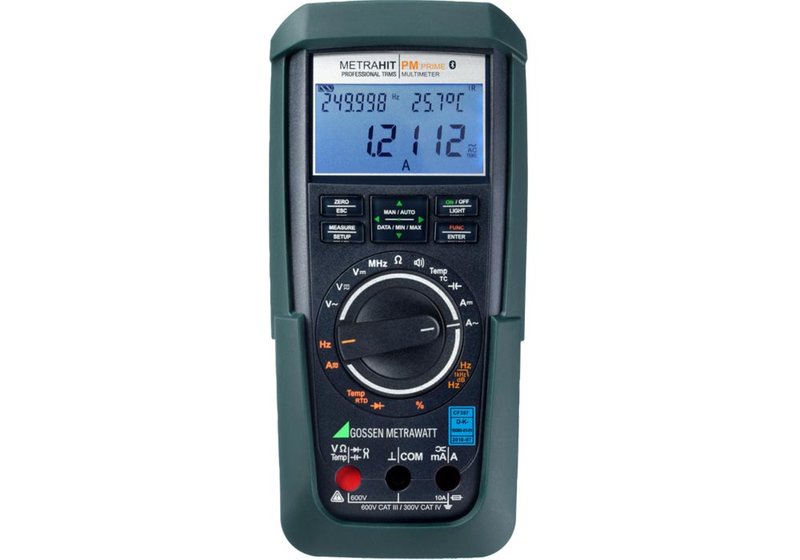

• METRAHIT PM PRIME with TRMS measurement - optionally with BluetoothR and app:
  • TRMS measurements including, amongst others: VAC TRMS, VAC+DC TRMS, VDC, AAC TRMS, AAC+DC TRMS, ADC dB, Hz(V), Hz(A), V, °C/°F (TC/RTD).
  • Resolution of 31,000 digits, triple display, display illumination can be activated under difficult lighting conditions; basic accuracy of 0.02%.
  • Measurement data memory for up to 300,000 measured values.
  • Instrument can be remote controlled via Bluetooth interface (device variant M248B only).
  • TRMS bandwidth: 100 kHz.
  • 1 kHz/-3 dB low-pass filter can be activated.
  • Auto-ranging - automatic adjustment of the measuring range for optimized resolution.
  • Patented, automatic storage of measured values after settling in.
  • IR interface - remote controllable without activating the rotary switch.
  • Optionally with integrated Bluetooth interface.
  • App for smartphones or tablets with Android for the Bluetooth variant.

Model Overview
