Gossen Metrawatt/GMC-I METRAHIT IM TECH, XTRA, E-DRIVE Handheld Multimeters

Benefits of the METRAHIT IM Series Handheld Multimeters, Milliohm Meters and Insulation Testers

• 4-wire milliohm measurement (Kelvin measurement) with 200 mA or 1 A.
• Insulation test with test voltage 50...1000 V.
• Coil test with 1000 V test voltage

Gossen Metrawatt/GMC-I METRAHIT IM TECH, XTRA, E-DRIVE Handheld Multimeters

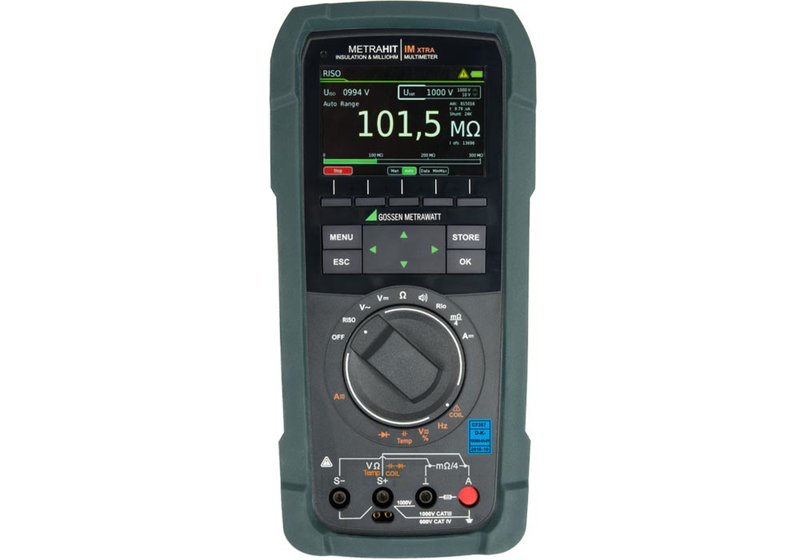

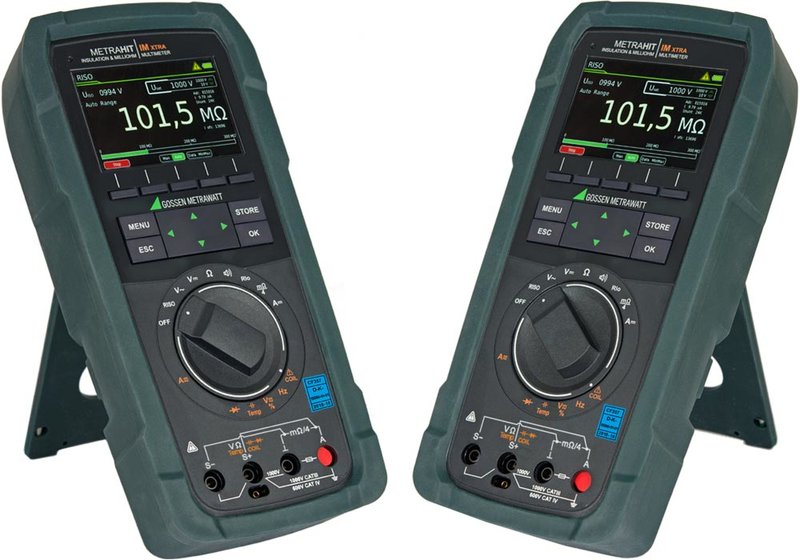

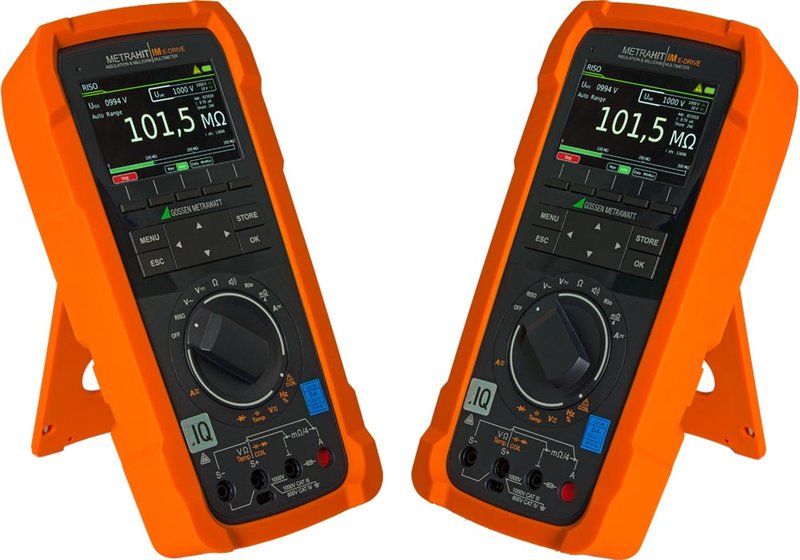

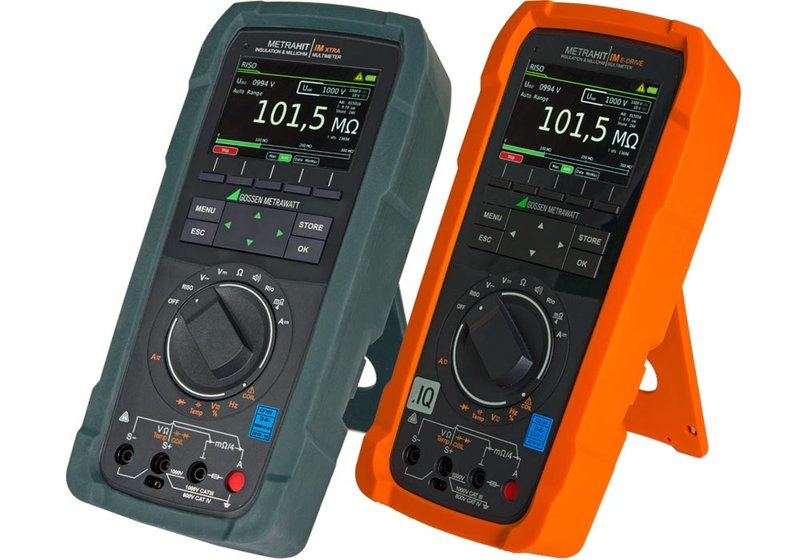

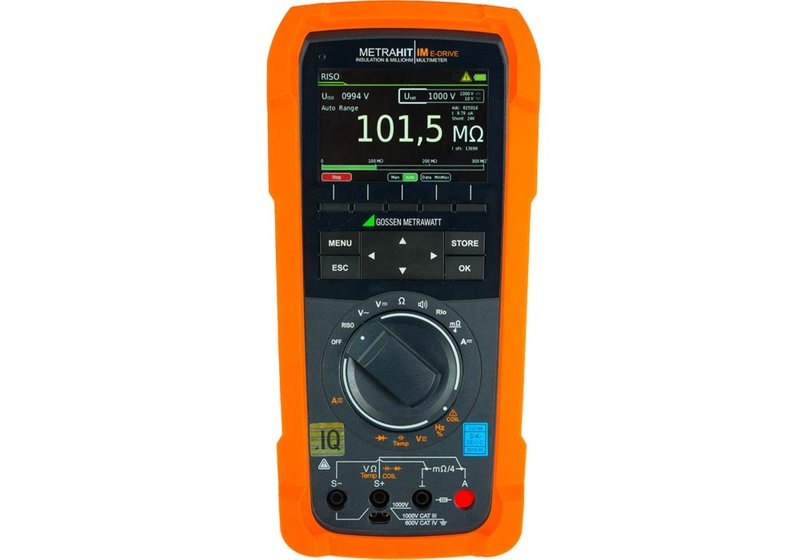

Models METRAHIT IM TECH BT (M272S), IM XTRA BT (M273S), E-DRIVE BT (M274S)

The multimeters METRAHIT IM TECH BT, XTRA BT, and E-DRIVE BT are extremely rugged handheld universal measurement instruments for maintenance, service, and diagnosis of electric machines, motors, and facilities. The range of applictions includes automotive, energy, and automation. The METRAHIT IM series multimeters are all-in-one devices: Insulation testers, milliohmmeters, coil testers and universal multimeters. They are the ideal solution for safety test and diagnosis of electronic and hybrid vehicles as well as all kinds of electronic machines. METRAHIT IM TECH BT, XTRA BT, and E-DRIVE in combination with the optional COIL TEST ADAPTER allow coil test in the inductivity range.
Replacement models for METRAHIT 27I (M227B/S): METRAHIT IM XTRA) and METRAHIT H+E Car (M227T/U/M/O): METRAHIT IM E-DRIVE).

• Multifunctional measurement instruments: V, A, Ω, F, Hz, %, RPM, °C/°F.
• Insulation resistance measurement up to 3.1 GΩ.
• Direct current measurement 10 nA...1 A.
• Capacity measurement.
• 4-wire milliohm measurement.
• 2-wire Rlo measurement according to DIN EN 61557-4/VDE 0413-4
• TRMS (true RMS) AC/AC+DC for current/voltage up to 10/100 kHz.
• Dioden measurement (IK = 1 mA, UFlow up to 5.1 V) and continuity.
• Precision temperature measurement °C/°F for RTD and TC-K sensors.

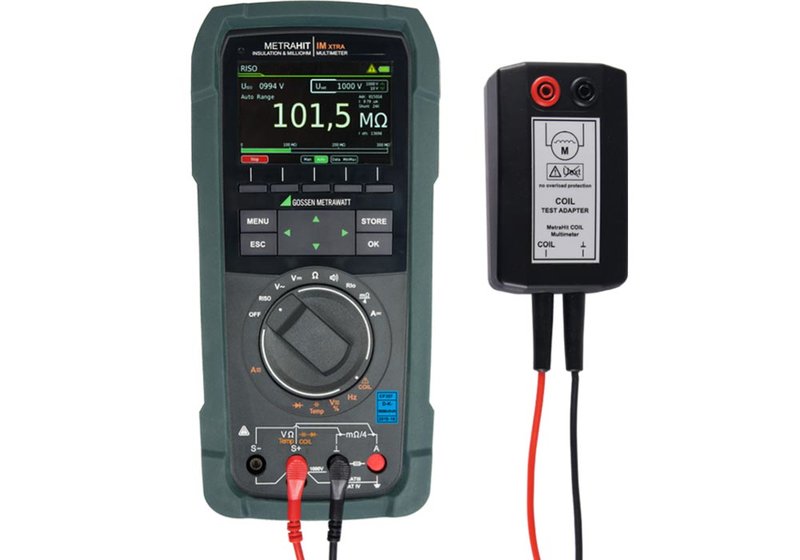

• Coil measurements with 1000 V and optional COIL adaptor.
• Current measurement with clamp sensors. Transformation ratio can be set with CLIP from 1:1 to 1:1000.
• Acoustic signals.
• Acquisition of Min/Max; DATA hold.
• Datalogger
• Push/print function transfers measured values to application software by simply pressing a key.
• Programmable sequences for test routines.
• Colour graphic display.
• Modular power supply: standard quick-change rechargeable lithium battery, optional WPC module for inductive charging.
• Automatic blocking sockets (ABS) for the current input.
• Test probe with START (ISO) and STORE keys.
• Housing with IP52 protection, dust and splash protected, replaceable rubber holster.
• Interfaces: Bluetooth or Wifi/WLAN integrated, USB with optional module.
• Windows software IZYTRONIQ for documentation, generation of test reports, and graphicn evaluation of measurements.

Model Overview
