ME-USB Iso USB Isolator

Benefits of the ME-USB Iso USB Isolator With External or USB Bus-Power

• Protects your USB transmission.
• Protects your hardware from voltage peaks.
• Easy to connect between PC and USB device - no additional drivers required.

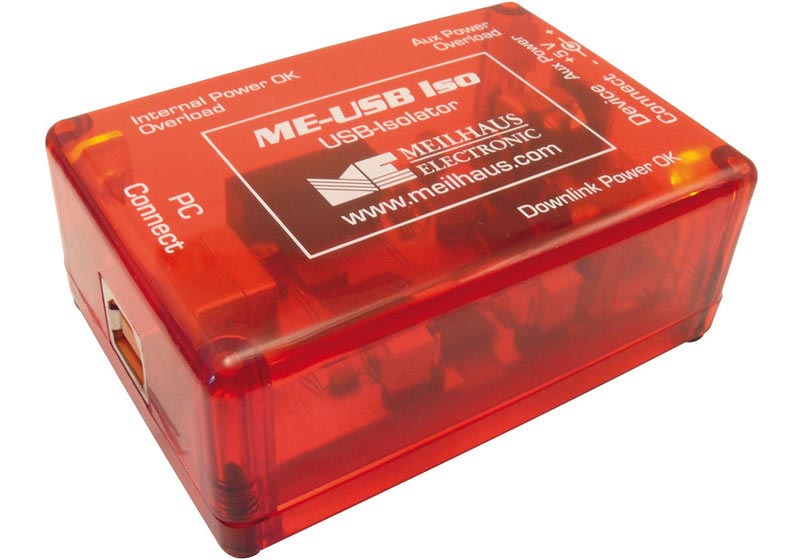

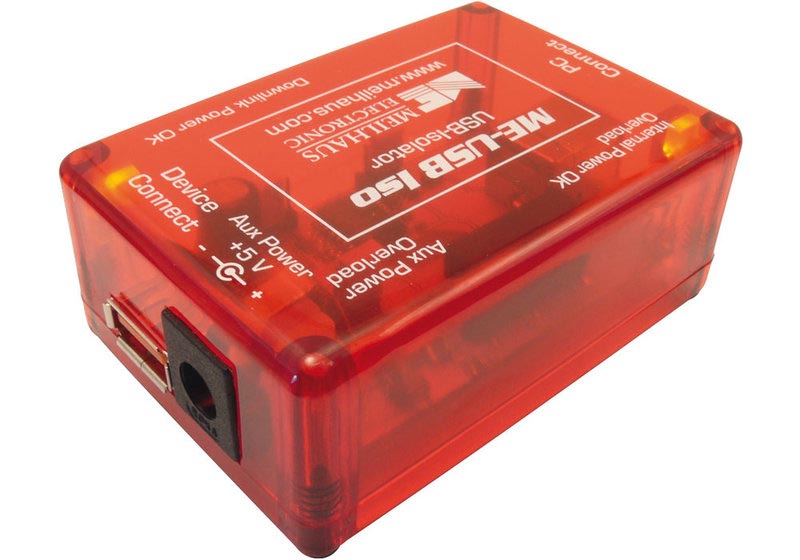

ME-USB Iso USB Isolator

The USB isolator ME-USB Iso was designed to protect a host with USB interfaces and the connected USB device. It protects the equipment from voltage peaks and avoids ground loops. It can help to eliminate noise from ground loops or potential differences for example in audio and video applications. The ME-USB ISO does not have a medical approval. The isolator is fully transparent (like a cable) between the PC and a USB device, so no additional drivers or other software is required.

• Galvanic isolation of the USB connectivity (USB 2.0/full speed and 1.1/low speed) between a PC and USB device.
• Supply power from USB ("self-powered") or from external power supply.
• Fully transparent, no changes in software or additional software drivers required.
• Five diagnostic LEDs for status.
• Isolation up to 1000 VAC/2100 VDC (1 s). Built-in overvoltage/transient protection up to 8 kV. Output short-circuit protection.
• Size (mm) 72 x 50 x 28.
• CE. DIN EN 55022; VDE 0878-22:2011-12 (CISPR 22:2008, mod.); EN 55022:2010, DIN EN 55024; VDE 0878-24:2011-09 (CISPR 24:2010); EN 55024:2010.

Meilhaus Electronic Original Product!

Information on product safety:

Manufacturer:
Meilhaus Electronic GmbH, Am Sonnenlicht 2, 82239 Alling/DEU
www.meilhaus.com
