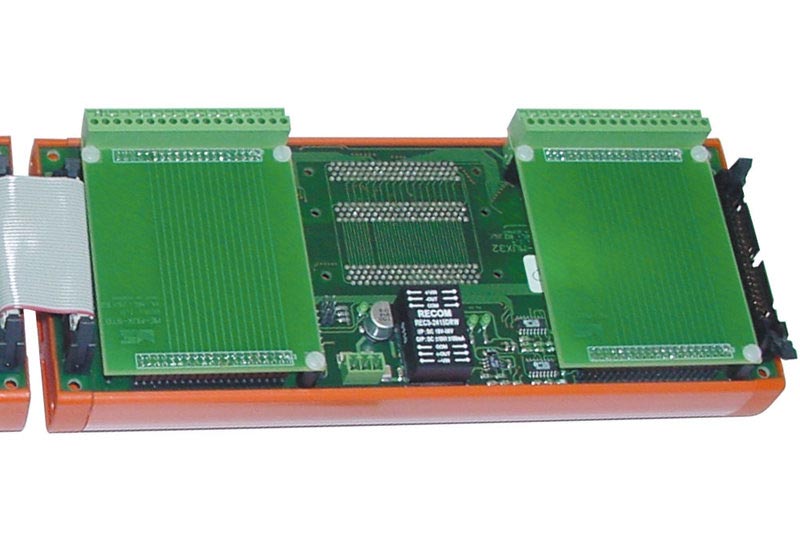

ME-MUX32-S Multiplexer Slave

Analog Multiplexer for Additional Analog Inputs

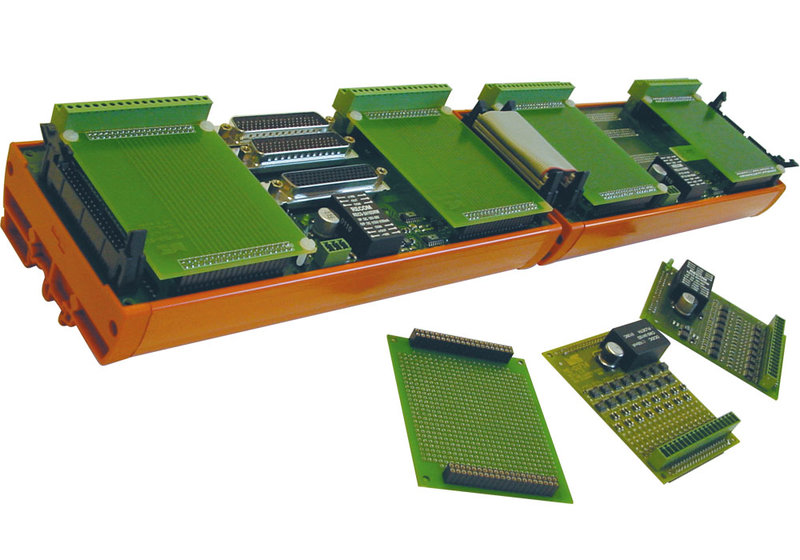

You may know the situation: There's never enough DAQ channels in a measurement system. And very often, speed is not the most important feature in real life applications, like temperature measurement for example. For applications like these you should consider the ME-MUX: With a DAQ board ME-Jekyll and a ME-MUX32 you get 47 analog inputs at a very low price per channel! Add up to 7 slave modules for up to 256 and more channels.

• Save PC slots and money. Low cost solution for more DAQ channels.
• ME-MUX32-M for direct connectivity to boards of the ME-46x0 series (ME-4610, ME-4660, ME-4670, ME-4680) with 78-pin D-sub cable (1:1 contacted).
• Multiplexing of 32 analog channels into one analog input of a DAQ board - PCI, PCI-Express, PXI/CompactPCI, Ethernet or USB (with ME-Synapse).
• Mit zusätzlichen Slave-Modulen ME-MUX32-S bis zu 256-zu-1 und mehr Kanäle möglich. Maximale Ausbaustufe bis 8192 Eingänge.
• With additional slave modules, up to 256-to-1 and more channels are possible. Max. systems with up to 8192 analog inputs.
• Remaining DAQ board signals (analog outputs, digital and counter channels) wired to an additional D-sub.
• Digital outputs are used to control the multiplexer. So no special software is required.
• Optional flexible signal conditioning with plug-on modules (2 module slots), see ME-SIG32.
• Timer controlled multiplexing with the ME-SylverFoXX/ME-4680.
• Gain: Each 16 channel group has an individual software selectable gain of 1, 10 or 100.

Model Overview
