ME AB-D9/8-H78 Serial-I/O Terminal Block

ME AB-D9/8-H78 serial connectivity module

€ 201,11

including VAT plus shipping

min Quantity

1 piece

Unit price

base price

Ready for dispatch. Delivery Time ~1-3 workdays

technical Question?

Please fill in all fields.

Question Type

Your E-mail Adress

My Question:

Please validate that you are not a robot.

I accept the Privacy Policy

Description

Files/Downloads

Reliable Connectivity for 8x RS232, RS422, RS485 of the ME-9000 (i, p)

These reliable connectivity options help you to connect your serial communication lines to the interface boards ME-9000. The cables and boxes adapt the 78-pin D-sub female connectors to standard 9-pin D-sub male connectors.

Model Overview

Model	Description	For...
ME AK-DQuad	1 m breakout cable with 4x 9-pin D-sub male connectors	ME-9000, ME-9000i, ME-9000p
ME AK-DOcto	1 m breakout cable with 8x 9-pin D-sub male connectors

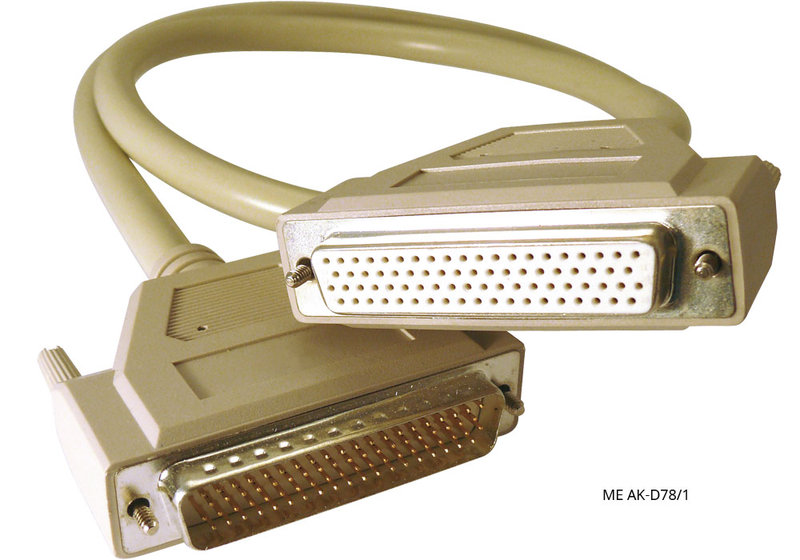

ME AB-D9/8-78	(= bundle ME AB-D9/8-78 + ME AK-D78/1) Robust metal connectivity box. 8x 9-pin D-sub male connectors. Incl. standard cable 78-pin D-sub male-to-female, 1:1 contacted

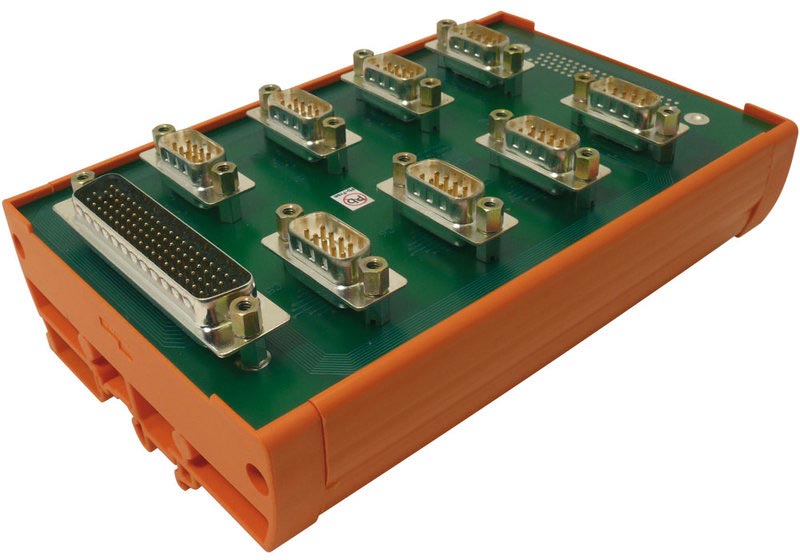

ME AB-D9/8-H78	(= bundle ME AB-D9/8-78-H + ME AK-D78/1) Connectivity board with 8x 9-pin D-sub male connectors. Incl. DIN-rail mountable card carrier and standard cable 78-pin D-sub male-to-female, 1:1 contacted
