MCD Elektronik Audioanalyzer Bundle Multi-Channel Audio Analyzer

Benefits of the MCD SmartModules-based Audio Analyzer

• 2x balanced stereo analogue inputs and outputs (4x XLR sockets/4x XLR plugs).
• Conversion of audio and optical signals and signal generation.
• Frequency and various signal strength measurements, distortion factor and FFT spectrum measurements.

MCD Elektronik AudioAnalyzer Bundle Multi-Channel Audio Analyzer

The MCD Elektronik Multi-Channel Audio Analyzer is a package based on the MCD SmartModuleS and two AudioAnalyzer modules 163422, providing an inexpensive and compact complete system for testing and calibrating analogue and digital sound systems. The AudioAnalyzer module is used to convert audio and optical signals and to generate signals. In addition to frequency and various signal strength measurements, distortion factor and FFT spectrum measurements can be used to analyse the audio signals. Various waveforms and modulation shapes can be generated using the integrated signal generators. The user interface of the Toolmonitor AudioAnalyzer can be freely customised and no special programming knowledge is required.

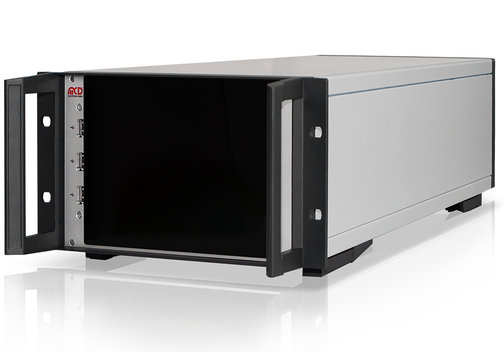

• Basic device - MCD SmartModuleS 163418
  • System:
    8 GB LPDDR RAM, 64 GB eMMC flash memory;
    Windows 11 IoT.
  • Interfaces:
    LAN/Ethernet RJ45 Gigabit 100 MB/10 MB;
    2x USB Port 3.1 Type-A, 1x USB Port 3.1 Type-C (with PD and DP alternative modes);
    WLAN;
    Bluetooth.
  • Display:
    1x display port to connect a monitor.
  • Power supply: 24 V/300 W external power supply unit.
  • Dimensions (mm, LxWxH): 425 x 270 x 133 (3U, 42DU); aluminium, 19"lmountable.
• Audio analyser - two MCD SmartModuleS 163422
  • Functions: Oscilloscope, FFT spectrum, RMS, THD, FREQ, PtoP, generators.
  • 2x analogue input: 1 mV...50 V balanced stereo via 2x XLR sockets.
  • 2x analogue output: 1 mV...15 V balanced stereo via 2x XLR plugs.
  • 2x optical and electrical input/output: S/PDIF up to 192 kSps.
  • Conversion of analogue audio signals into digital form and vice versa.
  • Conversion of optical signals into electrical S/PDIF signals and vice versa.
  • The input ranges from 1 mV to 50 V, the generator can be regulated up to 15 V.
  • Sample rates: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz.
  • Software: AudioAnalyzer Toolmonitor.
