Maverick-63104 DisplayPort and USB 3.1 Extender over CAT6a/7
Benefits of the Maverick 63104 USB and DisplayPort Extenders
- Extend USB 3-2-1 and DisplayPort up to 100 m.
- Uses standard Cat6a/7 cable.
- Includes an Ethernet pass-through.
Maverick-63104 - DisplayPort 1.2a and USB 3.1, 5 Gbps Point-to-Point Extender System over CAT6a/7

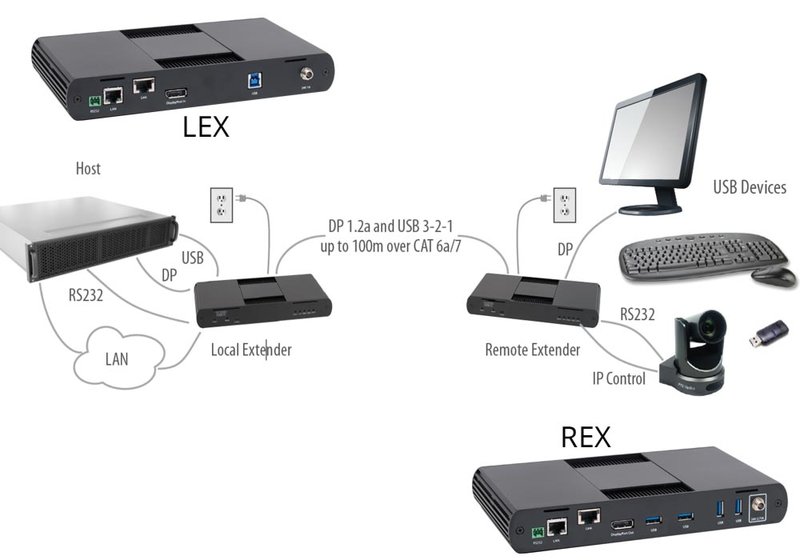

The DisplayPort 1.2a 4Kp60 4:4:4 and USB 3.1 Gen 1 Maverick-63104 provides the ability to connect all USB device types and a single DisplayPort sink back to a host across a point-to-point connection up to 100 m over CAT6a/7. The Maverick-63104 also includes an Ethernet pass-through for connecting to network enabled devices or to use existing infrastructure without losing LAN connectivity, as well as an RS232 pass-through channel for command and control applications or RS232 enabled devices.
- Local and remote extender.
- DisplayPort 1.2a with embedded audio support.
- Resolutions up to UHD 4K, 3840 x 2160 at 60 Hz.
- YCbCr 4:4:4 and RGB colour support up to 10 bpc.
- 2 channel DisplayPort audio.
- USB 3.1 Gen 1 data rate up to 5 Gbps.
- Supports all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth.
- Four available 3.1 Gen 1 ports.
- 100/1000 Ethernet channel; LAN pass-through.
- Bidirectional RS232, 9600...115200 Baud rate.
- Single cable, CAT6a/7 up to 100 m.
- Point-to-point connection.
- Includes the ExtremeUSB-C suite of features:
Transparent USB extension supporting USB 3, 2 and 1.
True Plug&Play; no software drivers required.
Works with all major operating systems: Windows, macOS, Linux and ChromeOS. - Applications: Medical imaging, interactive digital signage, video production, industrial contol/HMI.
Model Overview
Model | Maverick-63104 | |

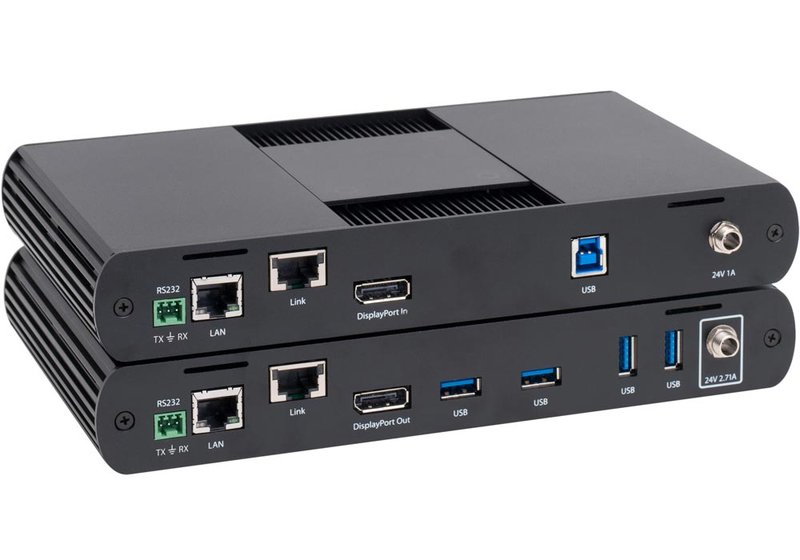

Local extender LEX | Interfaces | 1x USB 3.1 B receptacle 1x RJ45 Ethernet 100/1000 port 1x DisplayPort 1.2a receptacle 1x RS232 3-pin terminal block 1x RJ45 Ethernet link port |
Power | 24 V/1 ADC locking jack | |
Dimmensions (mm) | 137 x 232 x 33; 920 g | |
Remote extender REX | Interfaces | 4x USB 3.1 A receptacles 1x RJ45 Ethernet 100/1000 port 1x DisplayPort 1.2a receptacle 1x RS232 3-pin terminal block 1x RJ45 Ethernet link port |
Power | 24 V/2.71 ADC locking jack | |
Dimmensions (mm) | 137 x 232 x 33; 990 g | |
Point-to-point range | Up to 100 m over CAT6a/7 | |
USB | Speeds: SuperSpeed 5 Gbps, HighSpeed, FullSpeed, LowSpeed USB bandwidth up to 5 Gbps Device compatibility: All device types and classes (control, interrupt, isochronous and bulk) Host compatibility: OHCI, UHCI, EHCI, xHCI Available current at remote: 1.2 A (6 W) per USB port Max. number of USB devices: 30 |
Included: Maverick-63104 (odering code 01-00633) consisting of 1x LEX (local extender), 1x REX (remote extender), and 2x 1.8 m DisplayPort cables, 1x 1.8 m USB 3.1 Gen 1 cable, 2x international locking power adaptors, 2x country specific power cords, 1x quick start guide.
