Gossen Metrawatt M516 PROFITEST PRIME (AC) Measuring Instrument for Standards-Compliant Testing of Protective Measures
Benefits of the PROFITEST PRIME (AC) Combined Safety Testers
- Standard-compliant testing of the effectiveness of protective measures in electrical systems, machines, PV systems, e-charging stations.
- Records all values required for an acceptance certificate (e.g. from the ZVEH).
- PROFITEST PRIME AC version also for high-voltage testing.
Gossen Metrawatt M516 PROFITEST PRIME (AC) Measuring Instrument for Standards-Compliant Testing of Protective Measures
The GMC-I/Gossen Metrawatt PROFITEST PRIME and PROFITEST PRIME AC are all-in-one test instruments for AC and DC networks. They allow market- and standards-compliant testing of the effectiveness of protective measures at electrical systems/installations, electric machines, PV systems, and electric charging stations. The PROFITEST PRIME AC can also be used for high-voltage testing. All of the values required for approval reports (e.g. per ZVEH) can be measured. The devices are ideal for installation and initial startup, as well as for periodic testing and troubleshooting.
- Measurement in AC/DC systems.
- Measurement of internal line resistance and fault loop resistance with high test current up to 690 VAC/800 VDC without tripping RCD types A and B.
- Low-resistance measurement for protective and equipotential bonding conductors with 200 mA, automatic polarity reversal and 25 A.
- Testing of RCD types A, AC, F, B, B+, EV, MI and G/R, as well as SRCDs and PRCDs.
- Combined RCD test with continuously rising ramp, time to trip, tripping current.
- Insulation measurement up to 1000 V with rising ramp.
- Testing of RCMs and IMDs.
- Measurement of leakage and differential current.
- Measurement of temperature and humidity.
- Additionally with PROFITEST PRIME AC:
- Testing for dielectric strength, 2.5 kVAC, 500 VA: Standard sequence, ramp function and pulse control mode.
- Work safety concept for the inspector.
- Mains and battery operation (with limited functionality).
- Push-print function - measured value transmission after measurement.
- Dimensions (cm): approx. 50 x 21 41; PROFITEST PRIME: 10.15 kg/PROFITEST PRIME AC: 15.1 kg.
- Multiple display with dot matrix, black & white, 128x128 pixels, illuminated.
- Interfaces: Bluetooth (e.g. for keyboard), USB 2.0 (type B/slave, for PC connection), RS232 (for barcode reader and T/H sensor).
- Internal memory max. 50,000 objects.
- Applications in:
- Machinery manufacturing.
- Switchgear fabrication.
- Industrial systems up to 690 V.
- Wind power turbines up to 690 V.
- E-mobility charging infrastructure, AC/DC systems.
- IT networks up to 690 V.
- Insulation monitors up to 690 V.
- High voltage and insulation measurement up to 100 Ω.
Model Overview
| Model | Description | Replacement for the model | ||

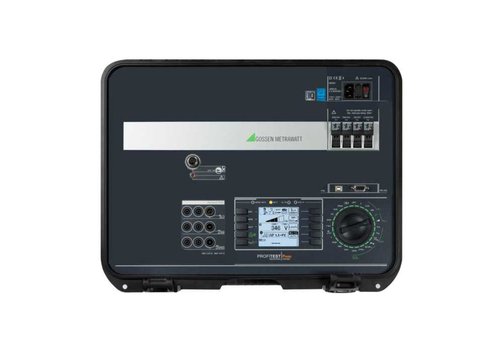

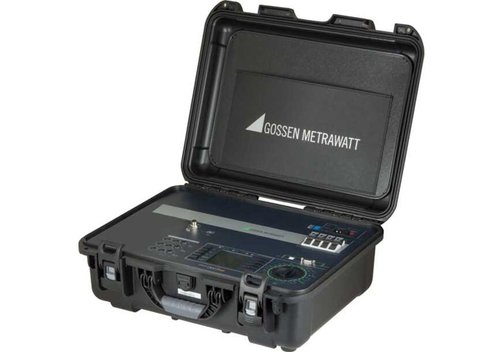

| M516G | PROFITEST PRIME | Test instrument for electrical systems and machines | M506G | |

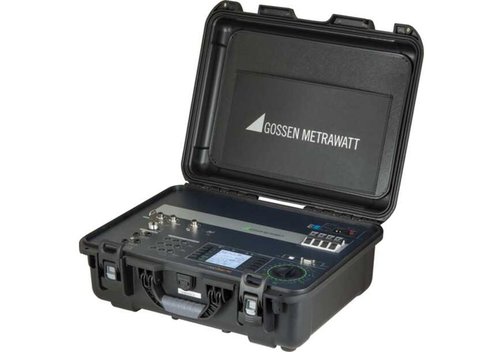

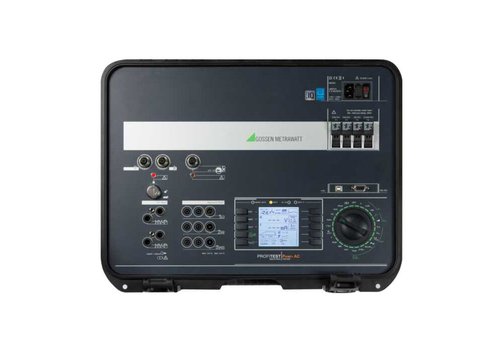

| M516H | PROFITEST PRIME AC | Test instrument for electrical systems and machines | M506H | |

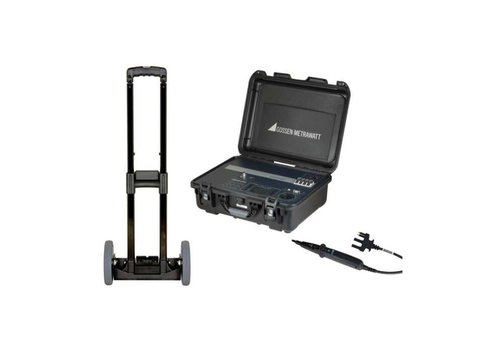

| M516K | Starterpaket PROFITEST PRIME | Test instrument set for electrical systems and machines | M506K | |

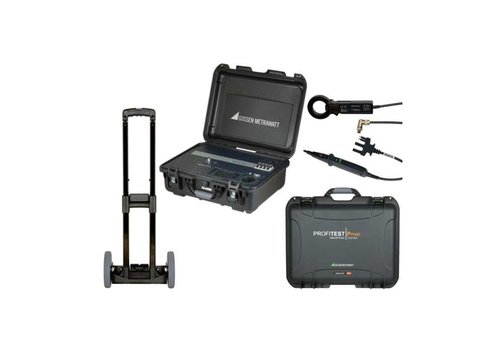

| M516L | PROFITEST PRIME Meisterpaket | Test instrument set for electrical systems and machines | M506L | |
| M516M | Profipaket PRIME AC | Test instrument for electrical systems and machines | M506M | |
| Z516T | I-SK4 PROFITEST PRIME | Intelligent measuring probe with remote triggering and replaceable test tip, measuring point illumination, LED status display. Keys for triggering and saving. With plug-on alligator clip. 3300 V CAT IV, 600 V CAT III, 1 A with safety cap. 600 V CAT II, 16 A without safety cap. Suitable for 25 A short-circuit operation, 10 s "on-time", 30 s "off-time" | 4-wire, 4 m connection | Z506T |

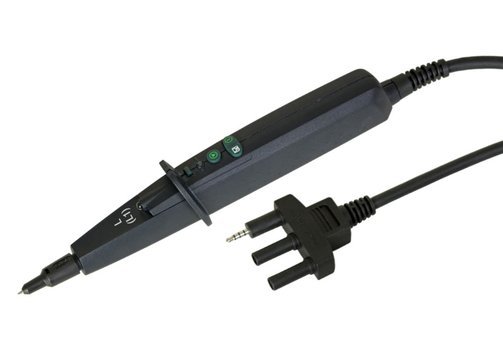

| Z516U | I-SK12 PROFITEST PRIME | 4-wire, 12 m connection cable | Z506U | |
Included with basic devices: Measuring/test instrument PROFITEST PRIME M516A or PROFITEST PRIME AC M516C), mains power cable (1.5 m), probe for L (with test tip, 4 m probe cable, alligator clip), probe for N (with test tip, 4 m probe cable, alligator clip), probe for PE (with test tip, 4 m probe cable, alligator clip), accessories pouch, USB cable, quick start instructions, DAkkS calibration certificate, card with registration key for IZYTRONIQ software.
Information on product safety:
Manufacturer:
Gossen Metrawatt GmbH GMC-Instruments Group, Südwestpark 15, 90449 Nürnberg/DEU
