Gossen Metrawatt PROFITEST PV Testers for PV Modules and Strings

Benefits of the Gossen Metrawatt PROFITEST PV Testers for PV Modules and Strings

• Test device for testing PV modules and strings.
• Model PV for peak power and characteristic.
• Model PVSUN for safety testing according to DIN EN 62446 (VDE 0126-23).

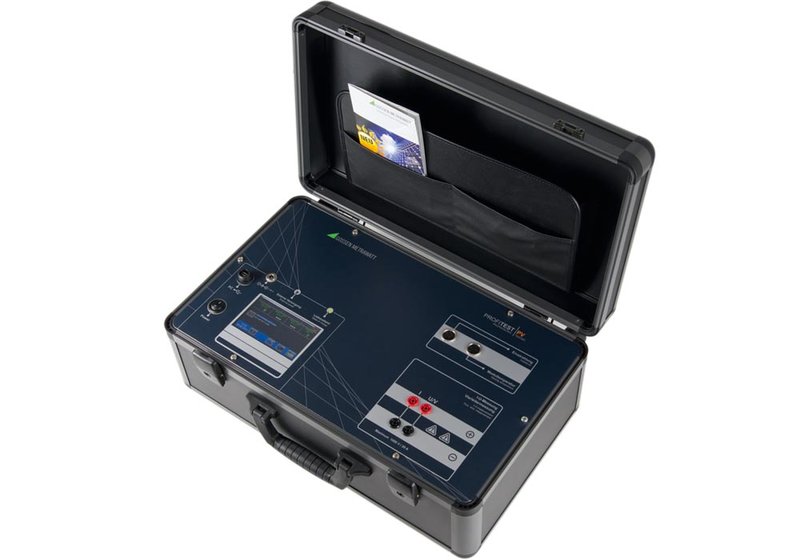

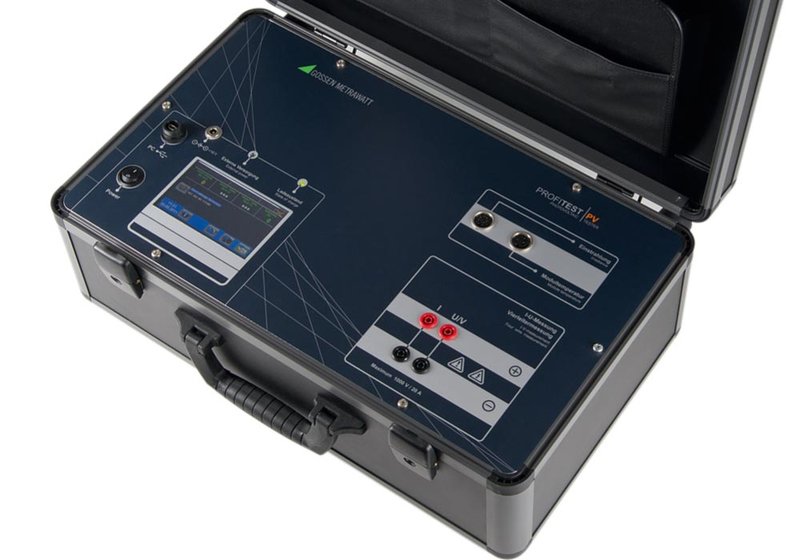

GMC-I/Gossen Metrawatt PROFITEST PV Peak Power Measuring Instrument and Curve Tracer for PV Modules and Strings

The GMC-I/Gossen Metrawatt PROFITEST PV (M360A) allows for the measurement of characteristic I-U curves, as well as individual photovoltaic modules and strings(measurement at capacitive load). With the help of a patented process, the instrument is capable of ascertaining peak power, internal series resistance and internal parallel resistance directly on-site with only one measurement and without entering module data, which are then indicated at a highresolution color graphic touch-screen which is suitable for use in sunlight. Troubleshooting in PV systems, as well as documentation of system quality, are executed quickly and economically during initial start-up and subsequent testing without a long learning curve. This simple yet decisive test assures safety for the customer and eliminates consequential costs for the installer. Measured peak power can, for example, also be used in order to determine peak ratio. Beyond this, acquired characteristic curves make it possible to draw further conclusions regarding the electrical characteristics of the measured module or string. And thus the instrument is also suitable for R&D.

• Generator voltage up to 1000 VDC, current up to 20 ADC.
• Measurement of short-circuit current I_SC, open circuit voltage U_OC, instantaneous peak power of a solar cell P_max, internal series resistance R_S, and internal parallel resistance R_P.
• Automatic conversion of momentary measured values to STC.
• Patented calculation process for evaluating PV generators without knowledge of the manufacturer's specifications.
• Patented calculation process for determining the generator's internal series resistance based solely on a measured characteristic I-U curve.
• Separate measurement of temperatures at the irradiation sensor and the back of the module for increased measuring accuracy.
• High level of intrinsic safety thanks to included load disconnector (1000 V/32 ADC) for all-pole disconnection of the measuring instrument from the PV generator.
• Calibrated irradiation sensor per IEC/EN 60904-2 with integrated Pt1000 temperature sensor.
• Integrated customer database with bidirectional data exchange.
• Integrated module database with bidirectional data exchange.
• Software for graphic visualization, evaluation and report generation with integrated database.

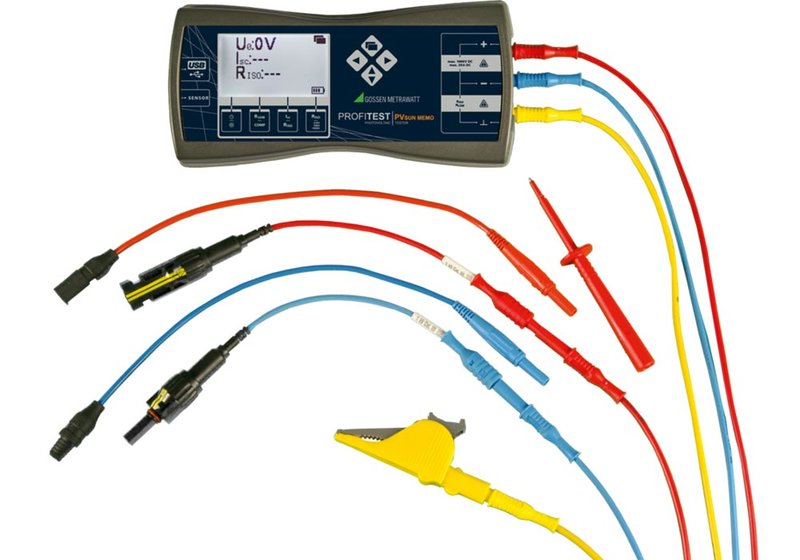

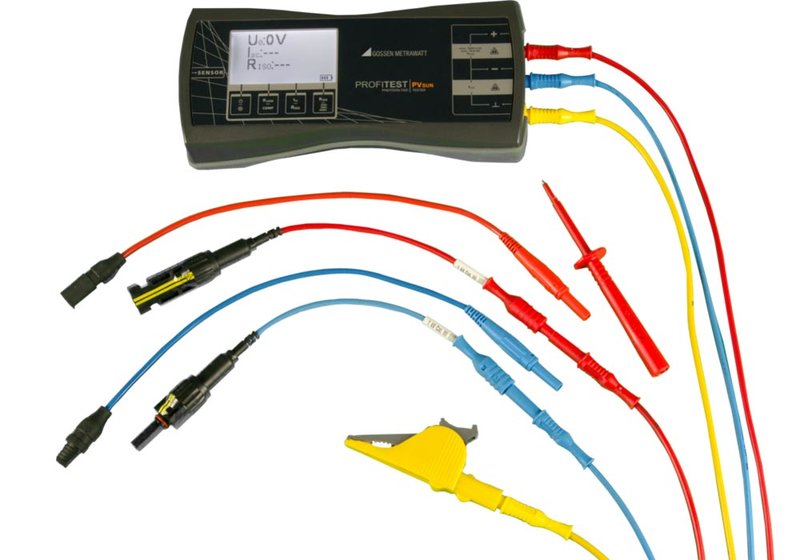

GMC-I/Gossen Metrawatt PROFITEST PVPVSUN and PVSUN MEMO Test Instrument for Testing PV Modules and Strings per DIN EN 62446 (VDE 0126-23)

With the GMC-I/Gossen Metrawatt PROFITEST PVSUN (M360C), all required electrical safety tests at photovoltaic systems can be executed simply and safely in accordance with DIN EN 62446. The test instrument is suitable for testing PV modules and strings with up to 1000 V/20 A. In addition to insulation measurement, polarity testing and ground fault testing, protective conductor continuity can also be tested. The tester is distinguished by its ergonomic design and easy handling with a weight of only 500 g.

• Voltage measurement: 0...1000 VDC.
• Current measurement (direct): 0...20 ADC.
• Insulation resistance measurement measuring range: 0...20 MΩ.
  Test voltages: 250 V/500 V/1000 VDC.
• Polarity test.
• Ground fault measurement: 0.1000 VDC.
• Testing for protective conductor continuity: 0...10 Ω.
• Backlit LCD panel.
• Compact and rugged: Ideal for service calls under harsh conditions.

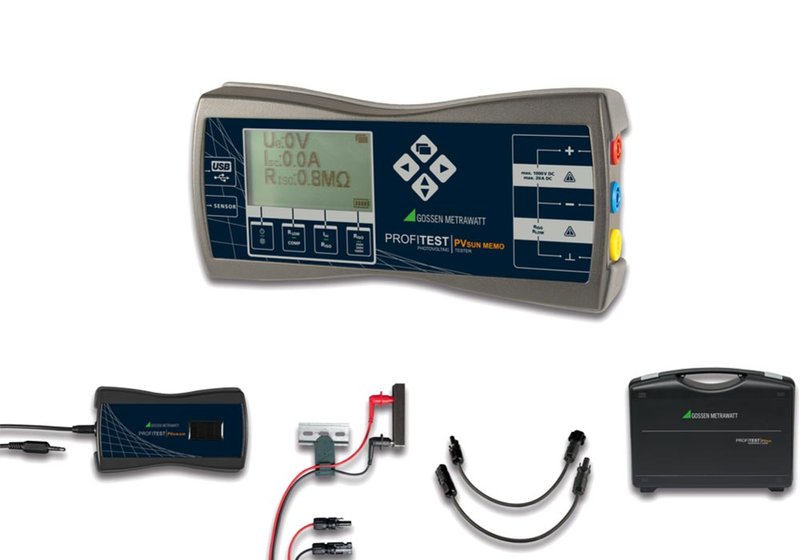

• Extensive accessories.

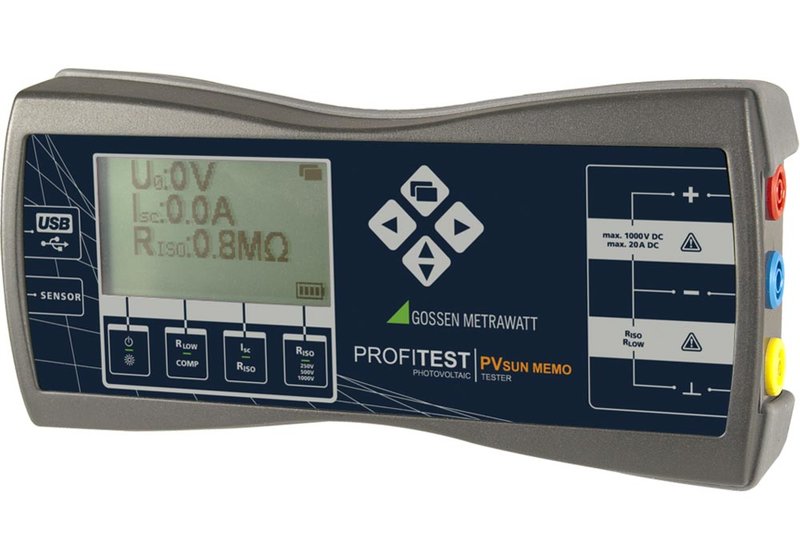

• PROFITEST PVSUN MEMO (M360D):
  Bidirectional USB interface.
  Integrated memory (>10,000 data records).
  PC software (preparation of individual test structures, read-out and evaluation of measured values).

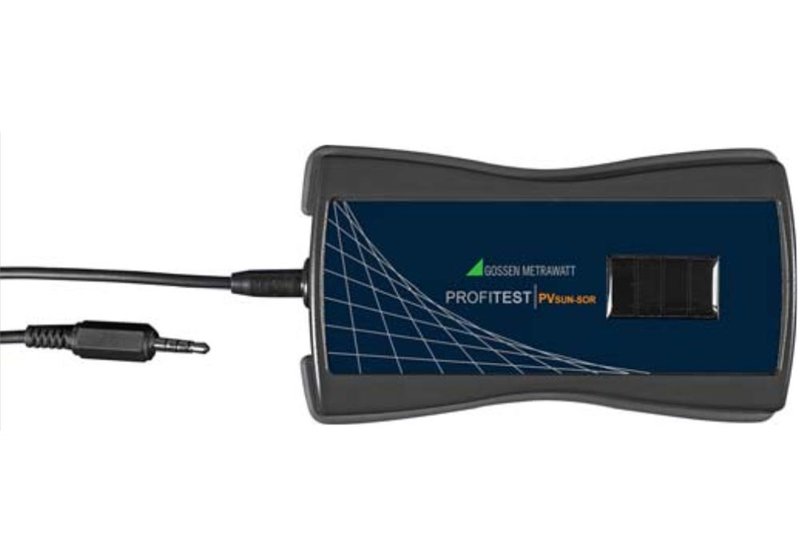

• PROFITEST PVSUN-SOR (M360E):
  Sensor for acquiring irradiation, temperature and inclination angle.
