StretchUSB M2-1x0 Point-to-Point USB Extender Cable
Description
Files/Downloads
Benefits of the Stretch USB M2-100 USB Extensions
- Extend USB distance up to 40 m.
- Fully transparent, no additional driver software required.
- Compatible with USB 1.1.

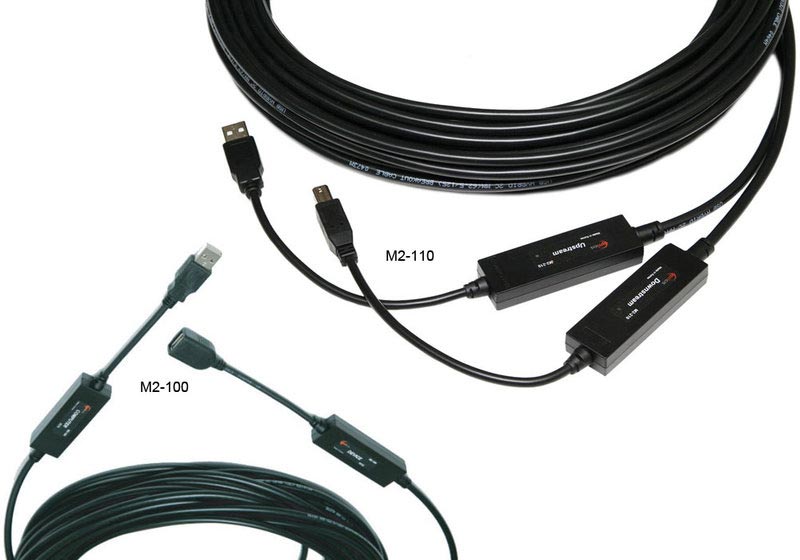

StretchUSB M2-100 Point-to-Point USB Extender Cable
Follow-up model of Rover 200 Series!
The M2-100 optical extension cables link the USB signal up to 40 m without any repeater. They provide the simplest way to link an USB device far from the host. The modules have a pair of optical-to-electrical and electrical-to-optical converters at each end, connected by fiber-optic cables.
- Extend the USB signal up to 40 m.
- No software to install: Easy to use; plug and play.
- Compatible with USB 1.1 (12 Mbps, 1.5 Mbps)
- Cables are light-weight, almost zero EMI/RFI emissions, no spark hazard and data secure.
- Wide variety of models, see table below.
- Applications:
PC link of peripherals in factory an office.
USB camera interfaces for surveillance system.
USB interface of automatic motion controls.
PC interface of digital audio systems.
Model Overview
| M2-1XY-ZZ | ||

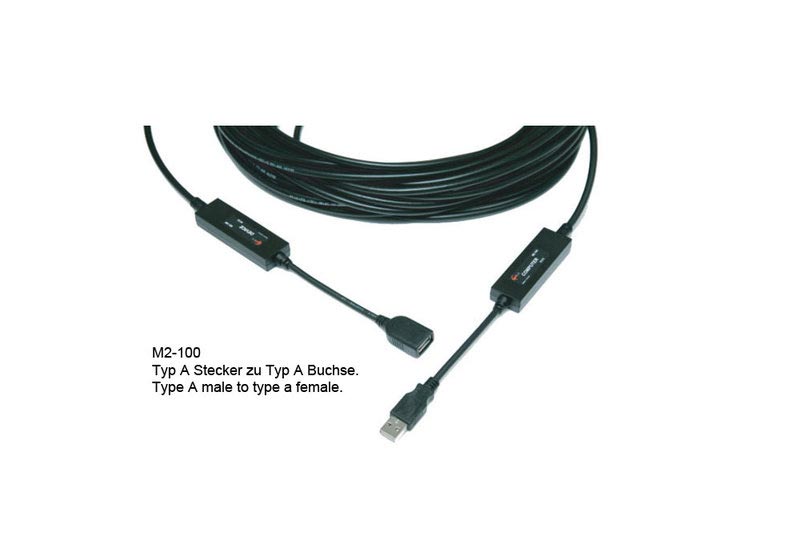

| X=0 | Type A male (M) connector at upstream module to type A female (F) connector/receptacle at downstream module | |

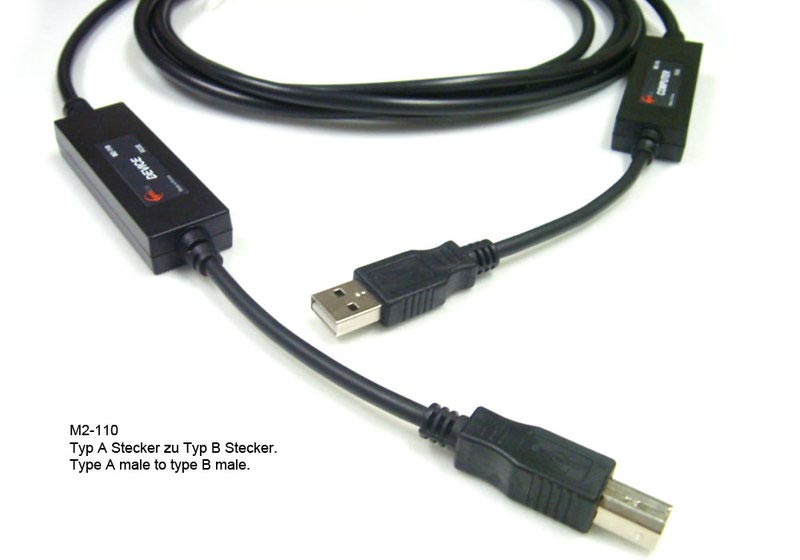

| X=1 | Type A male (M) connector at upstream module to type B male (M) connetor at downstream module | |
| Y=0 | For Window/Mac | |
| Y=1 | For Solaris SUN (on request) | |
| ZZ=10, 20, 30, 40 | Length of fiber cable in meters (10 m, 20 m, 30 m, 40 m available) |
Included: 1x M2-100 optical USB extension cable one of the versions listed in the table, 1x DC power adaptor, user manual, quick installation note.
Information on product safety:
Manufacturer:
Opticis Co., Ltd., 305, Sanseong-daero, Sujeong-gu, Seongnam-si, Gyeonggi-do, 13354 South Korea/KOR
www.opticis.com
