LabJack T4 Ethernet/USB DAQ System, 12bit

Benefits of the LabJack T4 Ethernet and USB Mini DAQ Box

• Super compact USB and Ethernet DAQ box.
• Complete multi-I/O measurement system with analog inputs/outputs and digital-I/Os.
• Open for your software ideas with extensive support software.

LabJack T4 Ethernet/USB DAQ System, 12 bit

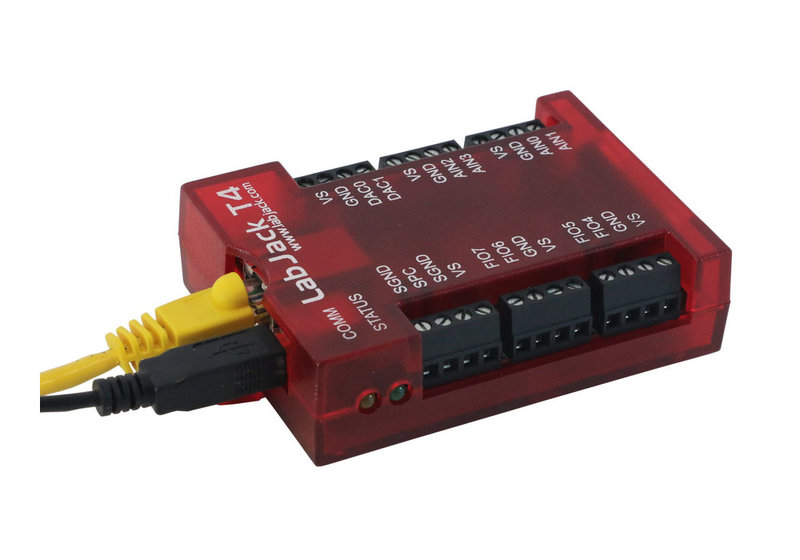

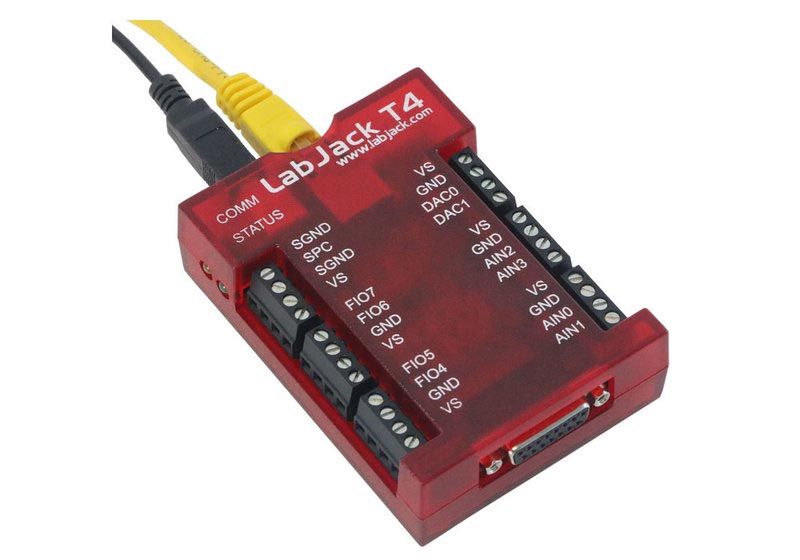

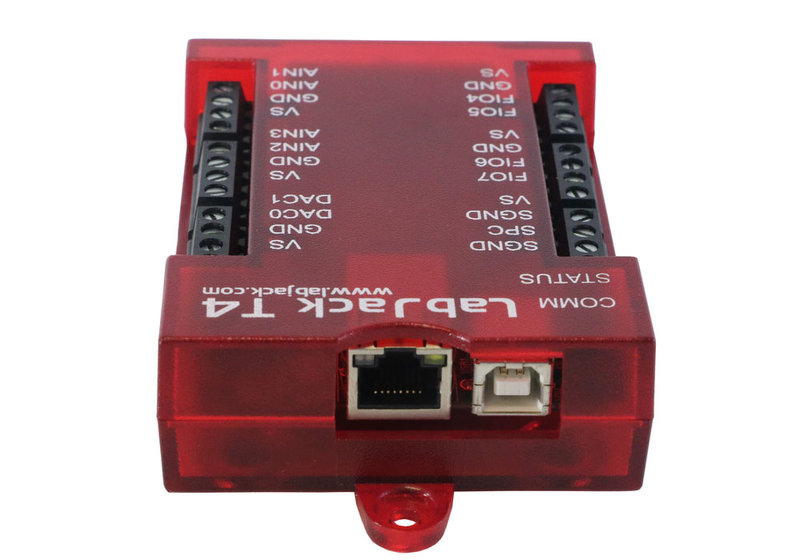

The LabJack T4 is a DAQ system for Ethernet/LAN and USB. It includes a complete multi-I/O measurement lab with 4 analog voltage inputs, 8 configurable flexible input, 2 analog outputs and digital-I/O channels. Major applications are measurement and control with laptop or PC as well as at an existing Ethernet/LAN (labs, industrial facilities, buildings, IoT, environmental etc.). It is low-cost, easy to use and also suitable for education. Power is supplied via the USB port, in USB mode from the PC or in LAN mode through a power adaptor at the USB-port.

• 4 analog inputs, range ±10 V, 12 bit resolution.
• 8 flexible I/Os, individually configurable as digital inputs, digital outputs or analog inputs.
  As digital-I/O: 3.3 V level, configurable as counters/timers or for SPI, I2C and other communication protocolls.
  As analog inputs: Range 0...2.5 V, 12 bit resolution.
• 8 digital-I/O lines, 3.3 V level, configurable as counters/timers or for SPI, I2C and other communication protocolls.
• 2 analog outputs, range 0...5 V, 10 bit resolution.
• Timer: Hardware timer with options like PWM output, pulse/period timing, pulse counter and quadrature inputs.

Information on product safety:

Manufacturer:
LabJack Corporation, 6900 West Jefferson Ave Suite 110, Lakewood, CO 80235/USA
www.labjack.com

Responsible person:
Meilhaus Electronic GmbH, Am Sonnenlicht 2, 82239 Alling/DEU
