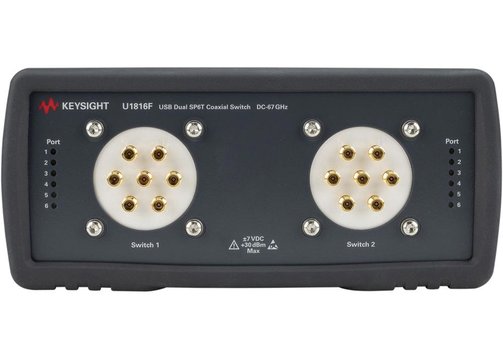

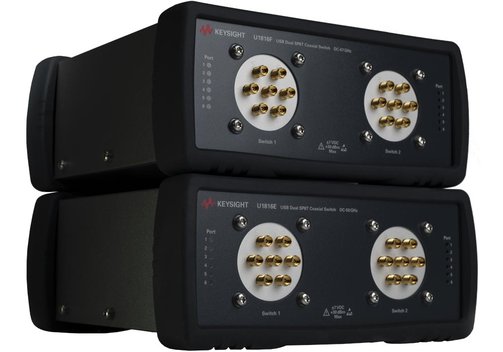

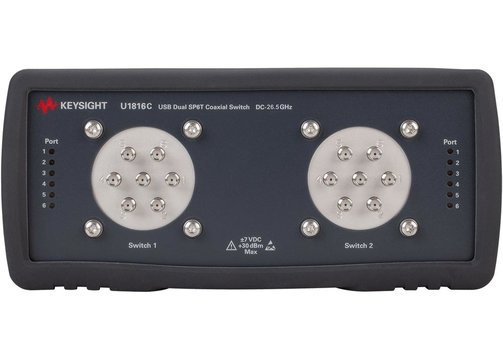

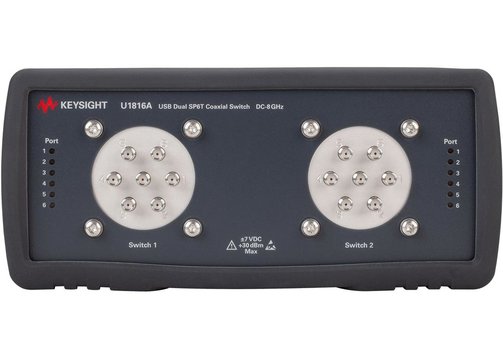

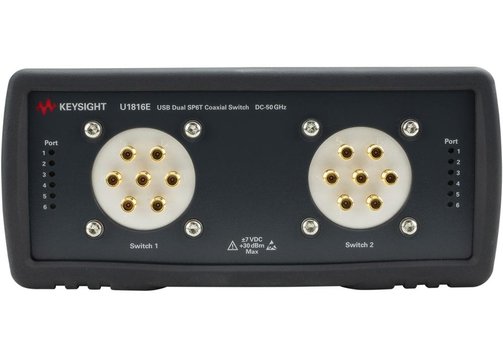

Keysight U1816 Series DC to 8, 26.5, 50, or 67 GHz Dual-SP6T EM Switches
- High density EM switches for test port extension in signal routing applications.
- Greatly extend number of test ports for multi-DUTs or multiport devices measurement, eg. 5G FR2.
- Achieve lower cost-per-port or overall cost of test without compromising performance.
- USB dual-SP6T.
- Broad operating frequency band from DC up to 8, 26.5, 50, or 67 GHz.
- Superior isolation minimizes port-to-port cross talk, eg. 65 dB min. at 67 GHz.
- Low insertion loss and VSWR.
- 5 or 1 million cycles with RF performance tested each switching cycles.
Model Overview
| Model | U1816A | U1816C* | U1816E | U1816F |
| Frequency range | DC...8 GHz | DC...26.5 GHz | DC...50 GHz | DC...67 GHz |
| Isolation | 100 dB | DC...12 GHz: 100 dB 12...15 GHz: 80 dB 15...20 GHz: 70 dB 20...26.5 GHz: 65 dB | DC...9 GHz: 95 dB 9...26.5 GHz: 85 dB 26.5...40 GHz: 75 dB 40...50 GHz: 70 dB | DC...9 GHz: 95 dB 9...26.5 GHz: 85 dB 26.5...40 GHz: 75 dB 40...54 GHz: 70 dB 54...67 GHz: 65 dB |
| Insertion loss | 0.3 dB + 0.015 x frequency (GHz) | 0.35 dB + 0.023 x frequency (GHz) | ||
| VSWR | DC...4 GHz: 1.20 4...8 GHz: 1.35 | DC...4 : 1.20 4...12.4 GHz: 1.35 12.4...18 GHz: 1.45 18...26.5 GHz: 1.70 | DC...4 GHz: 1.15 4...12.4 GHz: 1.20 12.4...20 GHz: 1.35 20...30 GHz: 1.40 30...50 GHz: 1.60 | DC...4 GHz: 1.15 4...12.4 GHz: 1.20 12.4...20 GHz: 1.35 20...30 GHz: 1.40 30...54 GHz: 1.60 54...67 GHz: 1.92 |
| Life cycles | 5 million | 1 million | ||
| Switching speed | 15 ms | |||
| Connector | SMA (f) | 2.4 mm (f) | 1.85 mm (f) | |

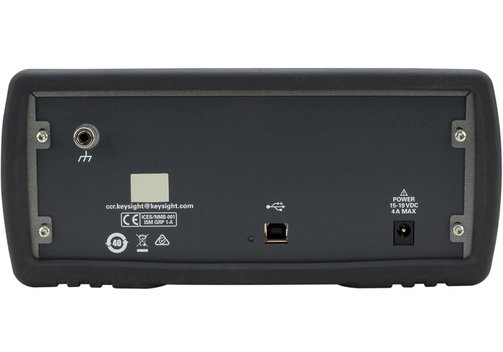

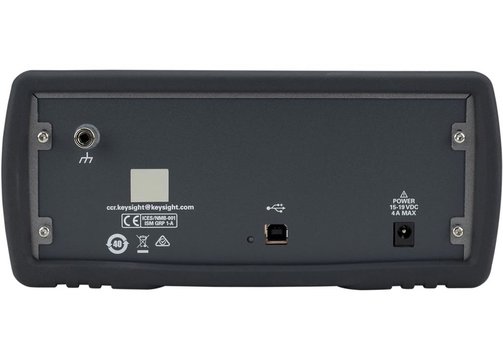

| Interface | USB | |||
| Supply power | 15...19 V (power adaptor provided) | |||
| Dimensions (mm) | 104 x 233 x 245; 2.43 kg | |||
* Version U1816CS40: DC...40 GHz
