Benefits of the Keysight U/L2000 Series Compact Power Sensors for USB or Ethernet/LAN
- Compact, accurate and easy-to-use power sensors.
- Models available with USB 2.0 or ethernet/LAN and various connection types.
- Wide frequency and dynamic ranges.

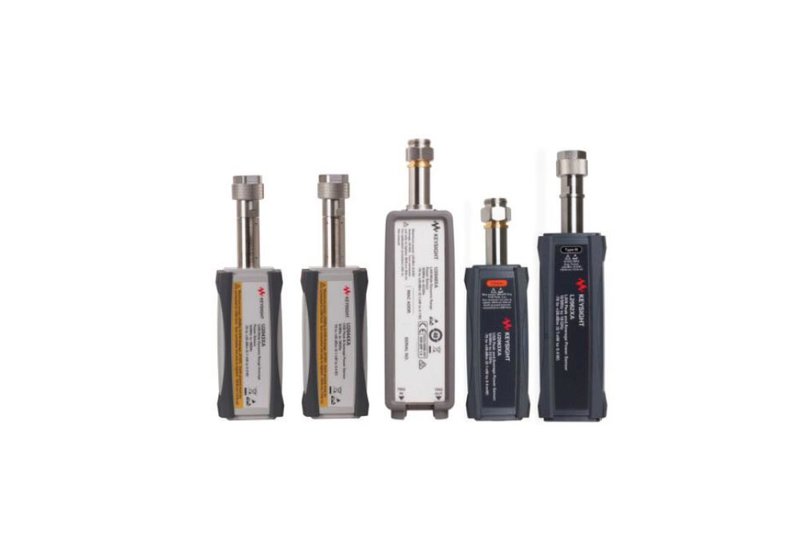

Keysigh U/L2000 Series RF Power Sensors for USB or Ethernet/LAN, up to 67 GHz
These Keysight power sensors for USB or Ethernet/LAN can be used for applications like 5G Milimeter-Wave, satellite sommunication, instruments and test system calibrations as well as general purpose scalar power measurements up to 67 GHz and 120 GHz, depending on the model. The sensors offer a wide dynamic range and models are available with various connector types.
- Compact, lightweight solutions.
- Quick, simple set-up.
- High accuracy, high power.
- Internal zeroing capability.
- Fast reading speed.
- Wide frequency ranges, wide dynamic range.
- Converts selected Keysight instruments to power meters.

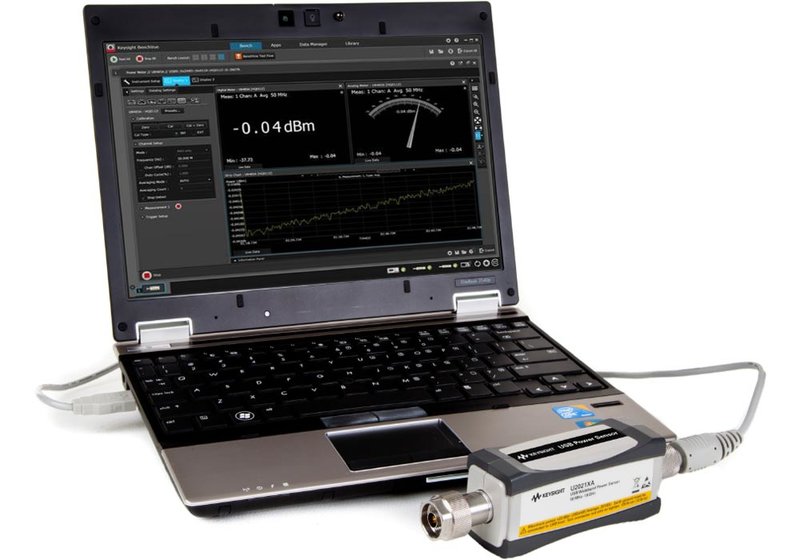

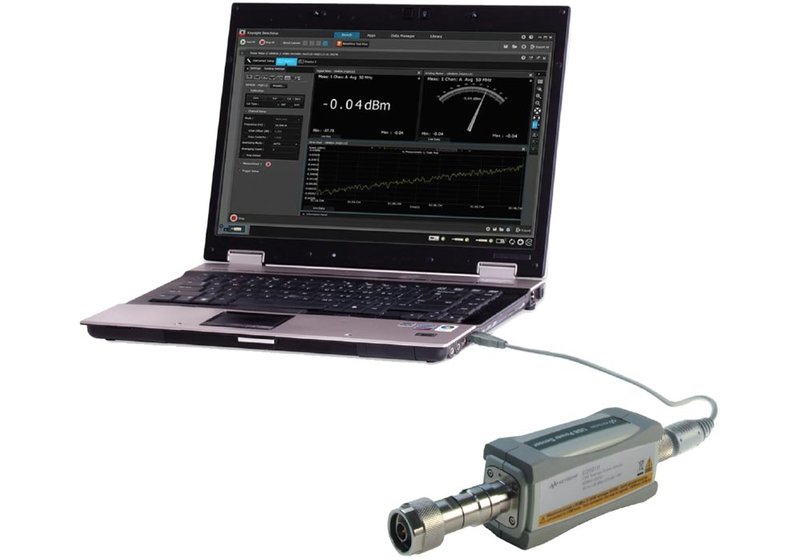

- Feature-packed software provides various capabilities for easy testing and analysis.
- See PDF datasheets for detailed technical specifications of models.
- Models with 67 GHz TVAC compliance PoE/LAN power sensor.
- Patented internal zero and cal, reduce time from 1st measurement.

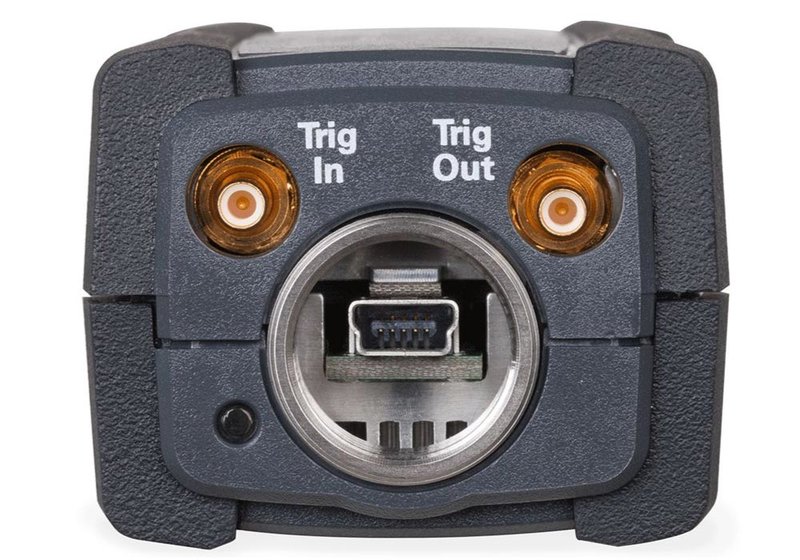

- Built in trigger in and out: Simplified measurement setup and lower cost of ownership.
- Super fast measurement speed, depending on model up to 10 kRdgs/s.
- Models with internal firmware memory available up to 1 MByte.
- Variable measurement sample rate up to 1 MS/s.
Model Overview

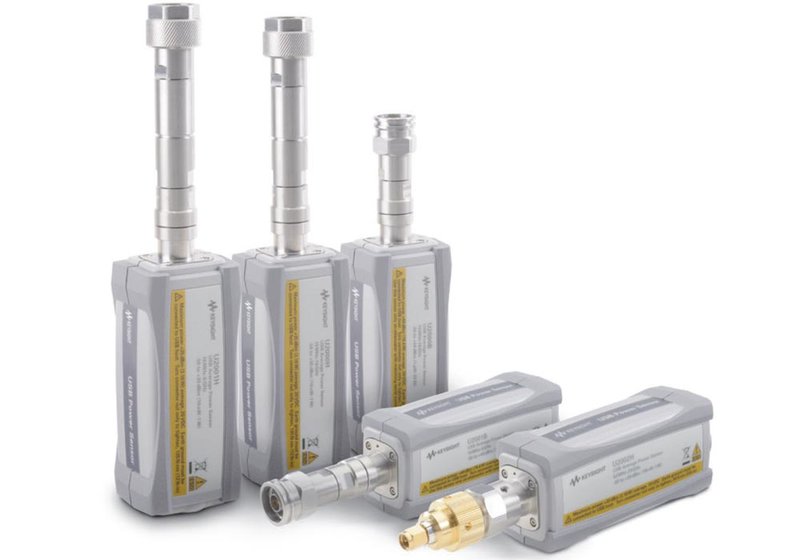

Model | Frequency range | Description | Widest dynamic range/power range | Connector type | Interface | Replaced by |
U2000 Series | ||||||
U2000A | 10 MHz...18 GHz | Average | -60...+20 dBm Max. power +25 dBm avg, 20 VDC +33 dBmpk, <10 µs | Type N male | USB 2.0 | - |
U2001A | 10 MHz...6 GHz | Average | Type N male | USB 2.0 | - | |
U2002A | 50 MHz...24 GHz | Average | 3.5 mm male | USB 2.0 | - | |
U2004A | 9 kHz...6 GHz | Average | -60...+20 dBm Max. power+25 dBm avg, 5 VDC +33 dBmpk, <10 µs | Type N male | USB 2.0 | - |
U2000B | 10 MHz...18 GHz | Average | -30...+44 dBm Max. power+45 dBm avg, 20 VDC +47 dBmpk, 1 µs | Type N male | USB 2.0 | - |
U2001B | 10 MHz...6 GHz | Average | Type N male | USB 2.0 | - | |
U2000H | 10 MHz...18 GHz | Average | -50...+30 dBm Max. power+33 dBm avg, 20 VDC +50 dBmpk, 1 µs | Type N male | USB 2.0 | - |
U2001H | 10 MHz...6 GHz | Average | Type N male | USB 2.0 | - | |
U2002H | 50 MHz...24 GHz | Average | -50...+30 dBm Max. power+33 dBm avg, 10 VDC +50 dBmpk, 1 µs | 3.5 mm male | USB 2.0 | - |
U2020X Series | ||||||
U2021XA | 50 MHz...18 GHz | Peak and average | (normal mode) -30...+20 dBm (50 MHz...<00 MHz), -35...+20 dBm (500 MHz...40 GHz), -35...+8 dBm (>40....50 GHz) | Type N male | USB 2.0 | - |

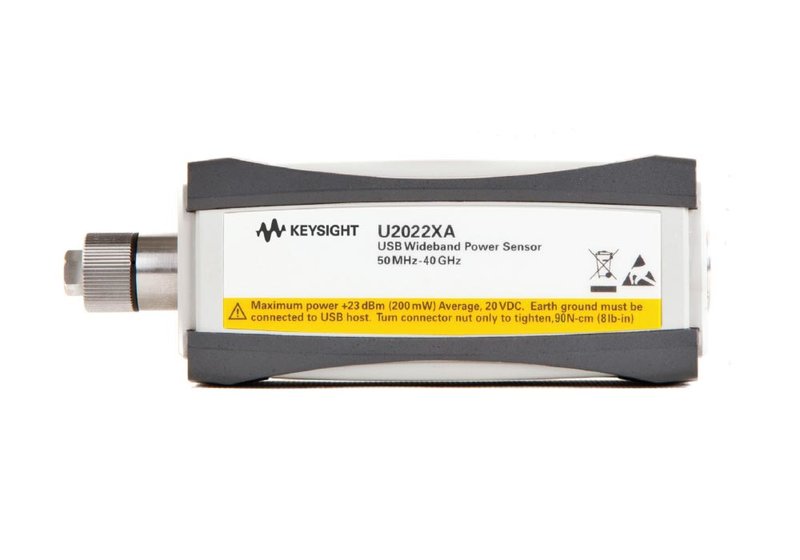

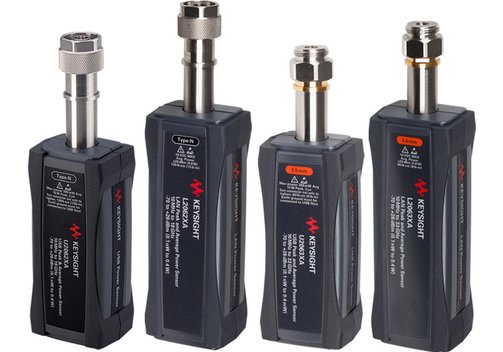

U2022XA U2022XA-H50 | 50 MHz...40 GHz1) | Peak and average | 2.4 mm male | USB 2.0 | - | |
U8480 Series | ||||||
U8481A | 10 MHz...18 GHz | Average | -35...+20 dBm Damage level AC coupled (option 100) 25 dBm avg, 50 VDC 15 W (2 µs duration; peak power); DC coupled (option 200) 25 dBm avg, 4 VDC 15 W (2 µs duration; peak power) | Type N male | USB 2.0 | - |
U8481A option 200 | DC...18 GHz | Average | USB 2.0 | - | ||
U8485A | 10 MHz...33 GHz | Average | 3.5 mm male | USB 2.0 | - | |
U8485A option 200 | DC...33 GHz | Average | USB 2.0 | - | ||
U8487A | 10 MHz...50 GHz | Average | 2.4 mm male | USB 2.0 | - | |
U8488A | 10 MHz... 67 GHz 67...70 GHz | Average | 1.85 mm male | USB 2.0 | - | |
U8489A | DC...120 GHz | Average | 1.0 mm male | USB 2.0 | - | |
U2000XA Series | ||||||
U2041XA - EOL June 2022 | 10 MHz...6 GHz | Average | -70...+26 dBm | Type N male | USB 2.0 | U2051XA |
U2051XA | 10 MHz...6 GHz | Average | -70...+26 dBm | Type N male | USB 2.0 | - |
L2051XA | 10 MHz...6 GHz | Average | -70...+26 dBm | Type N male | Ethernet/LAN | - |
U2042XA - EOL June 2022 | 10 MHz...6 GHz | Peak and average | -70...+26 dBm | Type N male | USB 2.0 | U2061XA |
U2061XA | 10 MHz...6 GHz | Peak and average | -70...+26 dBm | Type N male | USB 2.0 | - |
L2061XA | 10 MHz...6 GHz | Peak and average | -70...+26 dBm | Type N male | Ethernet/LAN | - |
U2043XA - EOL June 2022 | 10 MHz...18 GHz | Average | -70...+26 dBm | Type N male | USB 2.0 | U2052XA |
U2052XA | 10 MHz...18 GHz | Average | -70...+26 dBm | Type N male | USB 2.0 | - |
L2052XA | 10 MHz...18 GHz | Average | -70...+26 dBm | Type N male | Ethernet/LAN | - |
U2044XA - EOL June 2022 | 10 MHz...18 GHz | Peak and average | -70...+26 dBm | Type N male | USB 2.0 | U2062XA |
U2062XA | 10 MHz...18 GHz | Peak and average | -70...+26 dBm | Type N male | USB 2.0 | - |

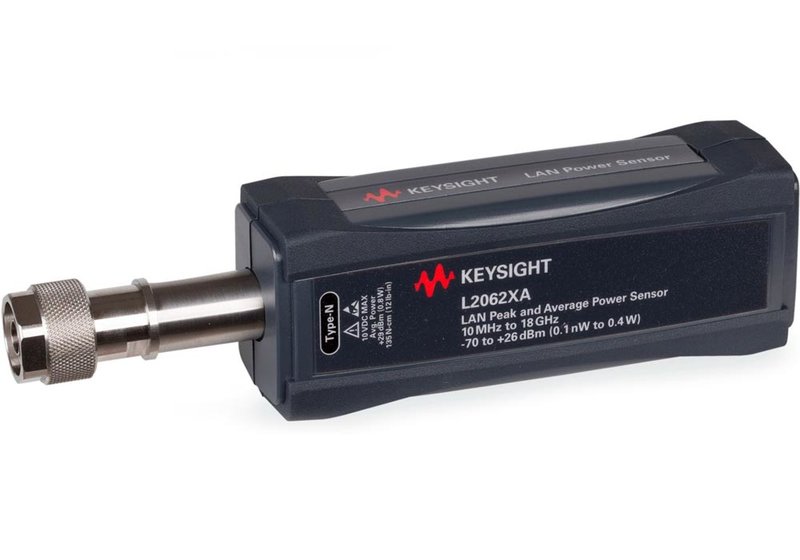

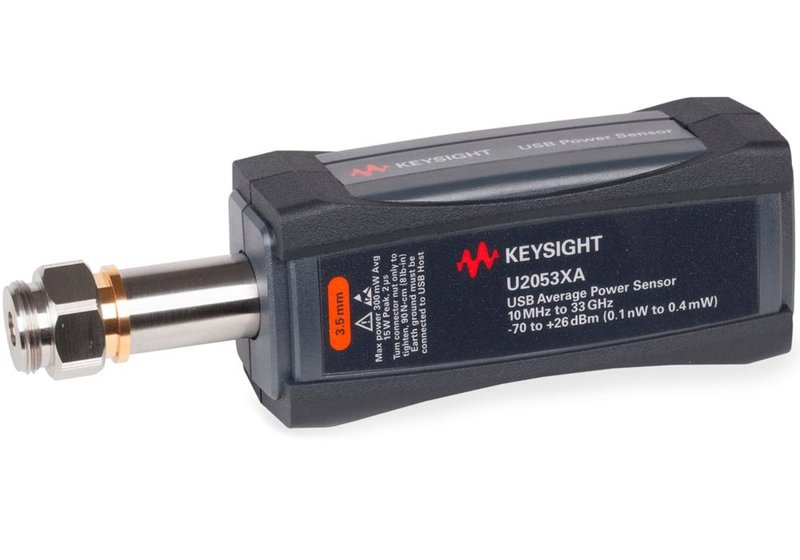

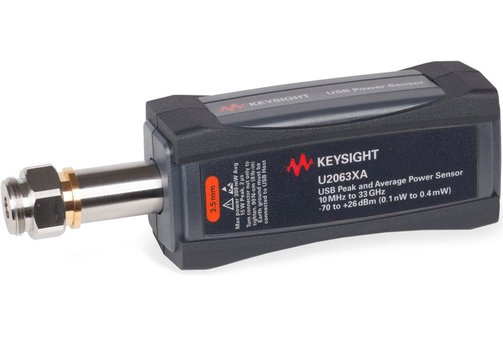

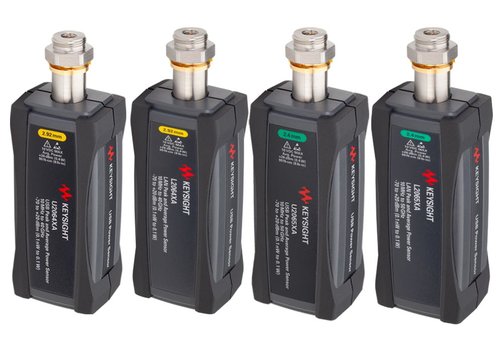

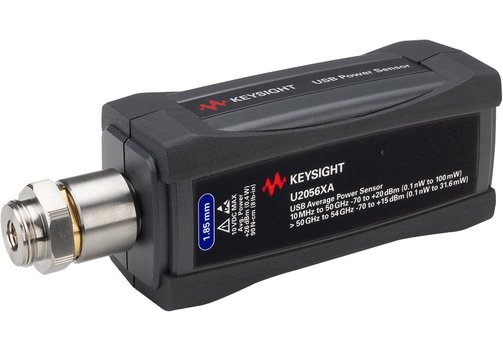

L2062XA | 10 MHz...18 GHz | Peak and average | -70...+26 dBm | Type N male | Ethernet/LAN | - |
U2053XA | 10 MHz...33 GHz | Average | -70...+26 dBm | 3.5 mm male | USB 2.0 | - |
L2053XA | 10 MHz...33 GHz | Average | -70...+26 dBm | 3.5 mm male | Ethernet/LAN | - |
U2063XA | 10 MHz...33 GHz | Peak and average | -70...+26 dBm | 3.5 mm male | USB 2.0 | - |
L2063XA | 10 MHz...33 GHz | Peak and average | -70...+26 dBm | 3.5 mm male | Ethernet/LAN | - |
U2049XA | 10 MHz...33 GHz | Peak and average | -70...+20 dBm | 3.5 mm male | Ethernet/LAN | - |
U2049XA-TVA3) | 10 MHz...33 GHz | Peak and average | -70...+20 dBm | 3.5 mm male | Ethernet/LAN | - |
U2054XA | 10 MHz...40 GHz | Average | -70...+20 dBm | 2.92 mm male | USB 2.0 | - |
L2054XA | 10 MHz...40 GHz | Average | -70...+20 dBm | 2.92 mm male | Ethernet/LAN | - |
U2064XA | 10 MHz...40 GHz | Peak and average | -70...+20 dBm | 2.92 mm male | USB 2.0 | - |
L2064XA | 10 MHz...40 GHz | Peak and average | -70...+20 dBm | 2.92 mm male | Ethernet/LAN | - |
U2055XA | 10 MHz...50 GHz2) | Average | -70...+20 dBm | 2.4 mm male | USB 2.0 | - |
L2055XA | 10 MHz...50 GHz2) | Average | -70...+20 dBm | 2.4 mm male | Ethernet/LAN | - |
U2065XA | 10 MHz...50 GHz2) | Peak and average | -70...+20 dBm | 2.4 mm male | USB 2.0 | - |
L2065XA | 10 MHz...50 GHz2) | Peak and average | -70...+20 dBm | 2.4 mm male | Ethernet/LAN | - |
L2065XT 3) | 10 MHz...53 GHz | Peak and average | -70...+20 dBm | 2.4 mm male | Ethernet/LAN | - |
U2056XA NEW | 10 MHz...54 GHz | Average | -70...+20 dBm | 1.85 mm male | USB 2.0 | - |
U2057XA NEW | 10 MHz...67 GHz | Average | -70...+20 dBm | 1.85 mm male | USB 2.0 | - |

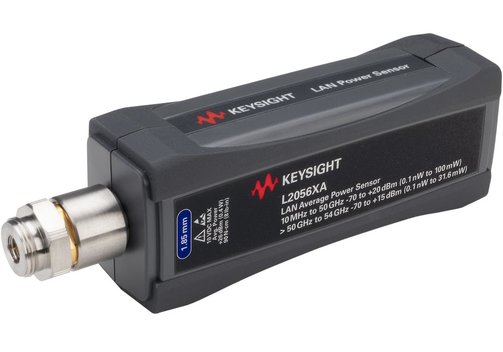

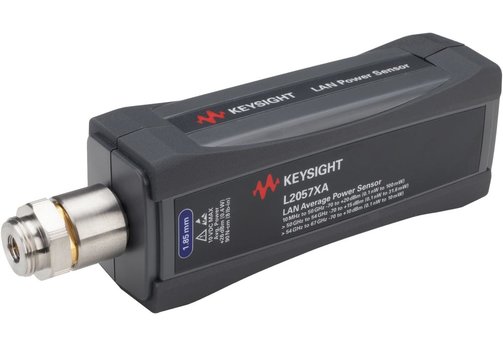

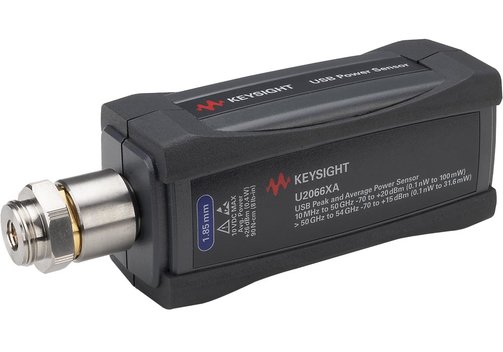

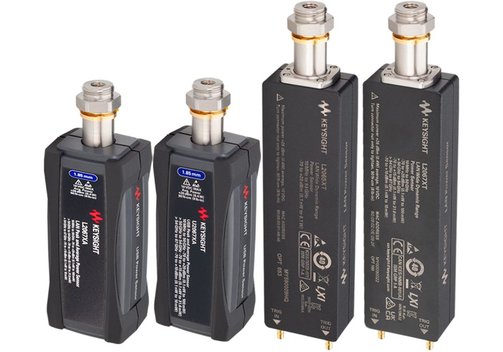

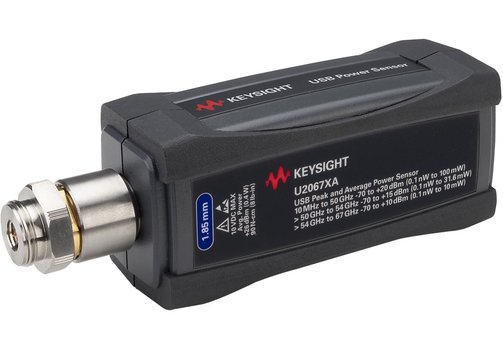

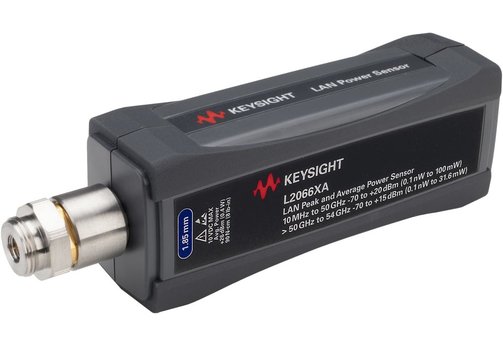

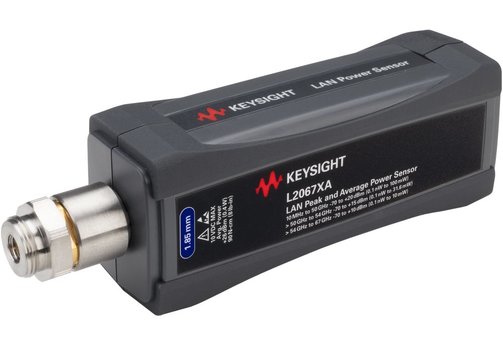

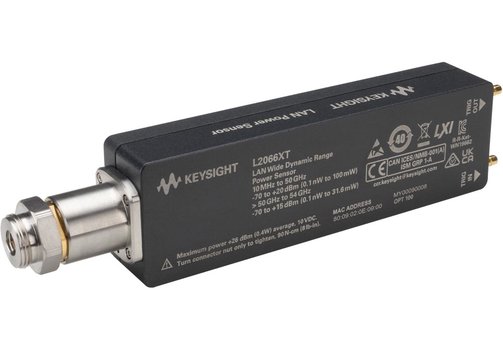

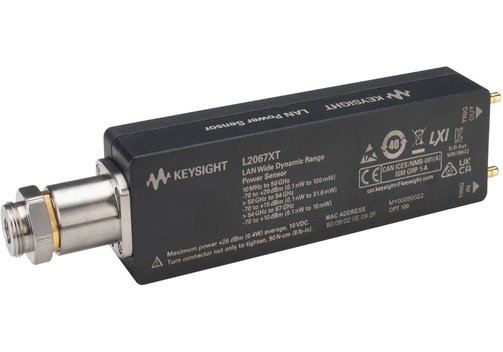

L2056XA NEW | 10 MHz...54 GHz | Average | -70...+20 dBm | 1.85 mm male | Ethernet/LAN | - |
L2057XA NEW | 10 MHz...67 GHz | Average | -70...+20 dBm | 1.85 mm male | Ethernet/LAN | - |
U2066XA NEW | 10 MHz...54 GHz | Peak and average | -70...+20 dBm | 1.85 mm male | USB 2.0 | - |
U2067XA NEW | 10 MHz...67 GHz | Peak and average | -70...+20 dBm | 1.85 mm male | USB 2.0 | - |
L2066XA NEW | 10 MHz...54 GHz | Peak and average | -70...+20 dBm | 1.85 mm male | Ethernet/LAN | - |
L2067XA NEW | 10 MHz...67 GHz | Peak and average | -70...+20 dBm | 1.85 mm male | Ethernet/LAN | - |
L2066XT3) NEW | 10 MHz...54 GHz | Peak and average | -70...+20 dBm | 1.85 mm male | Ethernet/LAN | - |
L2067XT3) NEW | 10 MHz...67 GHz | Peak and average | -70...+20 dBm | 1.85 mm male | Ethernet/LAN | - |
1) 50 MHz...50 GHz with option H50
2) Option 053 frequency 10 MHz...53 GHz.
3) with TVAC compliance.
Included:
- U2000 series power sensor, trigger cable BNC male to SMB female 50 Ω, 1.5 m, power sensor cable: 1.5 m, 3.0 m, or 5.0 m.
- U2020X series power sensor, power sensor cable 1.5 m, BNC male to SMB female trigger cable, 50 Ω, 1.5 m (2x), certificate of calibration, documentation CD-ROM, Keysight Instrument Control DVD (IO libraries luite, Command Expert, BenchVue software platform, 30-day free trial of BenchVue power meter/sensor control and analysis app).
- U8480 series power sensor, power sensor cable 1.5 m, trigger cable, BNC male to SMB female, 50 Ω, 1.5 m, certificate of calibration, documentation CD-ROM, Keysight Instrument Control DVD (IO libraries suite, Command Expert, BenchVue software platform, 30-day free trial of BenchVue power meter/sensor control and analysis app), U8485A: 3.5 mm (f) to N-Type (m) adaptor, U8487A/88A: 2.4 mm (f) to N-Type (m) adaptor.
- U2041/42/43/44/53/63XA USB power sensors, USB cable 1.5 m, BNC male to SMB female trigger cable, 50 Ω, 1.5 m (2x), certificate of calibration, documentation CD-ROM, Keysight Instrument Control DVD (IO libraries suite, Command Expert, BenchVue software platform, 30-day free trial of BenchVue power meter/sensor control and analysis app).
- U2049 and L2051/52/53/61/62/63XA LAN power sensors, LAN cable 1.5 m, Standard LAN cable, BNC male to SMB female trigger cable, 50 Ω, 1.5 m (2x), certificate of calibration, documentation CD-ROM, Keysight Instrument Control DVD (IO libraries suite, Command Expert, BenchVue software platform, 30-day free trial of BenchVue power meter/sensor control and analysis app).
Agilent’s Electronic Measurement Group is now Keysight Technologies.
