Benefits of the Keysight E441xA and E93xxA Series RF Power Sensors
- Frequency range up to 18 GHz.
- Models with CW, Average, and Peak/Average.
- Wide dynamic/power range.
Model Overview
Model | Frequency range | Description | Widest dynamic range/power range | Connector type |
E441xA Series | ||||

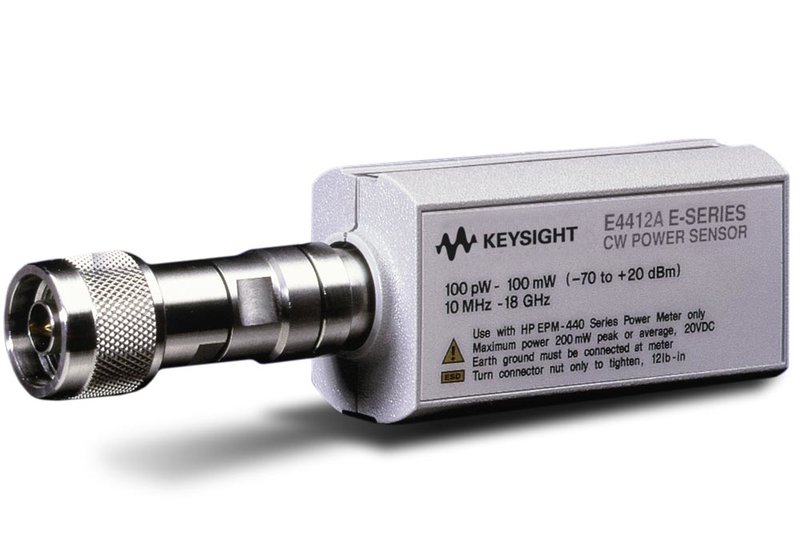

E4412A | 10 MHz...18 GHz | CW power sensor | -70...+20 dBm | Type N male |
E4413A | 50 MHz...26.5 GHz | CW power sensor | -70...+20 dBm | APC-3.5 mm male |
E93xxA Series | ||||

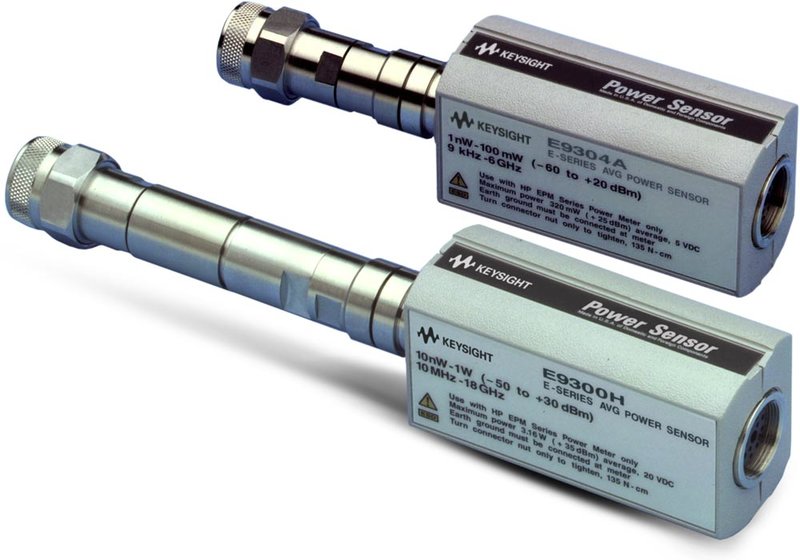

E9300A | 10 MHz...18 GHz | Power sensor, average | -60...+20 dBm | Type N male |
E9300B | 10 MHz...18 GHz | Power sensor, average | -30...+44 dBm | Type N male |
E9300H | 10 MHz...18 GHz | Power sensor, average | -50...+30 dBm | Type N male |
E9301A | 10 MHz...6 GHz | Power sensor, average | -60...+20 dBm | Type N male |
E9301B | 10 MHz...6 GHz | Power sensor, average | -30...+44 dBm | Type N male |
E9301H | 10 MHz...6 GHz | Power sensor, average | -50...+30 dBm | Type N male |
E9304A | 9 kHz...6 GHz | Power sensor, average | -60...+20 dBm | Type N male |
E9321A | 50 MHz...6 GHz, 300 kHz video bandwidth | Power sensor, peak and average | –65...+20 dBm | Type N male |
E9322A | 50 MHz...6 GHz, 1.5 MHz video bandwidth | Power sensor, peak and average | –60...+20 dBm | Type N male |
E9323A | 50 MHz...6 GHz, 5 MHz video bandwidth | Power sensor, peak and average | –60...+20 dBm | Type N male |
E9325A | 50 MHz...18 GHz, 300 kHz video bandwidth | Power sensor, peak and average | –65...+20 dBm | Type N male |
E9326A | 50 MHz...18 GHz, 1.5 MHz video bandwidth | Power sensor, peak and average | –60...+20 dBm | Type N male |
E9327A | 50 MHz...18 GHz, 5 MHz video bandwidth | Power sensor, peak and average | –60...+20 dBm | Type N male |
