Kewell C3000 Series High Performance Programmable DC Power Supply
Benefits of the Kewell C3000 Series High-Precision DC Power Supplies
- Up to 30 kW, up to 2000 V, up to 600 A.
- High efficiency, high accuracy and high speed.
- Built-in standard curves according to various standards.

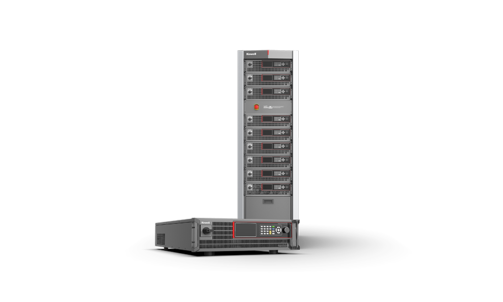

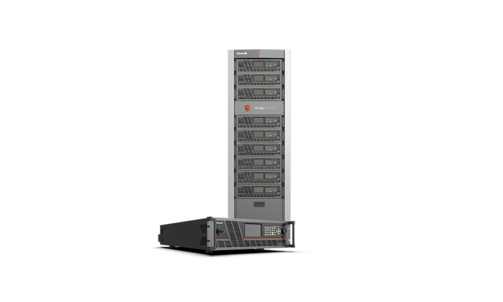

Kewell C3000 Series High Performance Programmable DC Power Supply
The Kewell C3000 series devices are high-precision programmable DC power supplies with a wide voltage range, high dynamic performance, and next-level power density. Featuring auto-range output and flexible voltage and current combinations, the Kewell C3000 series is widely used in industries such as PV and energy storage, EV, battery, and aviation.
- High-performance programmable DC power supplies.
- 30 kW in 3U design, ultra-high power density.
- ≥200 V/ms rapid voltage slew rate.
- Flexible paralleling for higher power.
- 1 ms high speed communication.
- Very short response time up to 500 µs.
- CC/CV priority meeting varied test requirements.
- Built-in standard curves according to EN50530, NB/T32004, CGC/GF004, CGC/GF035; ISO16750-2, LV123, DIN40839, etc.
- Efficiency: 95%, lower carbon emissions.
Model Overview
| Model | Rated power | Voltage range | Rated current | Interfaces (GPIB, analog-I/O, digital-I/O) | Version | |
| Optional | Standard | |||||
| C3000NG-5K-0100-0200 | 5 kW | 100 V | 200 A | ✓ | - | NG, normal series |
| C3000PG-5K-0100-0200 | 5 kW | 100 V | 200 A | - | ✓ | PG, professional series |
| C3000NG-10K-0100-0400 | 10 kW | 100 V | 400 A | ✓ | - | NG, normal series |
| C3000PG-10K-0100-0400 | 10 kW | 100 V | 400 A | - | ✓ | PG, professional series |
| C3000NG-15K-0100-0600 | 15 kW | 100 V | 600 A | ✓ | - | NG, normal series |
| C3000PG-15K-0100-0600 | 15 kW | 100 V | 600 A | - | ✓ | PG, professional series |
| C3000NG-7K5-0750-0060 | 7.5 kW | 750 V | 60 A | E-Stop | - | NG, normal series |
| C3000PG-7K5-0750-0060 | 7.5 kW | 750 V | 60 A | - | E-Stop | PG, professional series |
| C3000NG-15K-0750-0120 | 15 kW | 750 V | 120 A | E-Stop | - | NG, normal series |
| C3000PG-15K-0750-0120 | 15 kW | 750 V | 120 A | - | E-Stop | PG, professional series |
| C3000NG-15K-1500-0060 | 15 kW | 1500 V | 60 A | E-Stop | - | NG, normal series |
| C3000PG-15K-1500-0060 | 15 kW | 1500 V | 60 A | - | E-Stop | PG, professional series |
| C3000NG-21K-2000-0060 | 21 kW | 2000 V | 60 A | E-Stop | - | NG, normal series |
| C3000PG-21K-2000-0060 | 21 kW | 2000 V | 60 A | - | E-Stop | PG, professional series |
| C3000NG-30K-0750-0180 | 30 kW | 750 V | 180 A | E-Stop | - | NG, normal series |
| C3000PG-30K-0750-0180 | 30 kW | 750 V | 180 A | - | E-Stop | PG, professional series |
| C3000NG-30K-2000-0060 | 30 kW | 2000 V | 60 A | E-Stop | - | NG, normal series |
| C3000PG-30K-2000-0060 | 30 kW | 2000 V | 60 A | - | E-Stop | PG, professional series |
Normal and Pro Versions
The "Normal" series are cost-effective devices that offer all fundamental features. The "Professional/Pro" series are fully-featured, designed for multi-scenario applications.
| Model | Normal/NG | Pro/PG |
| DC source | ✓ | ✓ |
| IV simulation | - | ✓ |
| Function generator | - | ✓ |
| Vehicle power curve | - | ✓ |
| Communication interfaces RS485/RS232/LAN/CAN/USB | ✓ | ✓ |
