Benefits of the IT9100 Series Power Meters

Input range 1000 V_RMS/50 A_RMS.
Harmonics measurements up to 50th order.
Accuracy of voltage and current measurement up to 0.1%.

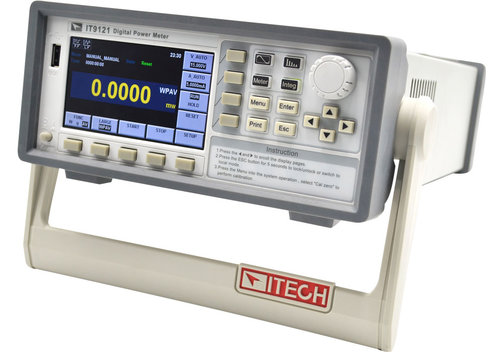

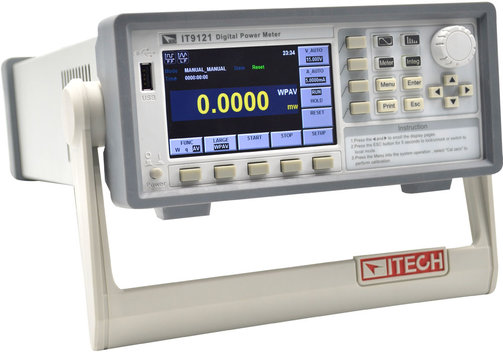

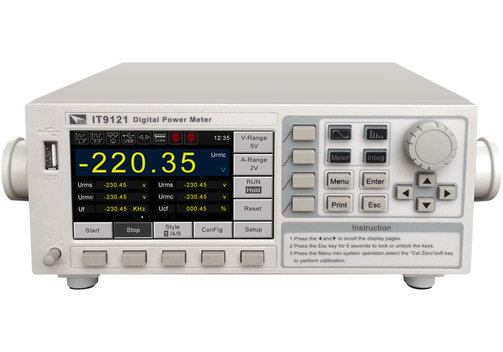

ITECH IT9121, IT9121C, IT9121H Power Meters

The ITECH IT9100 power meter allows the maximum input of 1000 V_RMS and 50 A_RMS and measurement bandwidth of 100 kHz. The device is used to easily measure voltage, current, power, frequency, harmonics and other parameters. The standard configuration includes USB, RS232 and Ethernet/LAN, optional GPIB/IEEE488 communication interfaces. Users can save the measured parameters into an external USB storage medium. The basic voltage and current accuracy is 0.1%. Moreover, the power meter has rich integrating functions, such as the active power. It is widely applied in test of motors, household appliances, UPS, etc.

Input range 1000 V_RMS/50 A_RMS.
Accuracy of voltage and current measurement up to 0.1%.
Harmonic measurement up to 50th harmonics.
Voltage, current, power, harmonics and other parameters can be measured at the same time.
Rich and powerful integrating functions.
Oscilloscope display.
4.3"/10.9 cm color LCD (TFT).

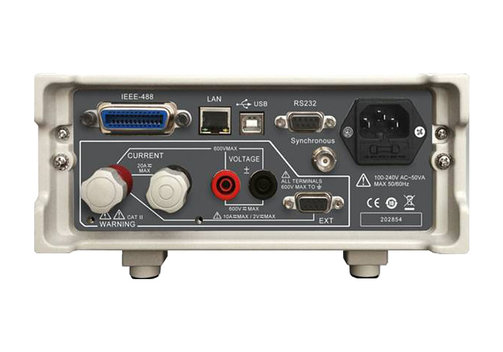

Standard built-in USB, RS232 and Ethernet/LAN interfaces, optional GPIB/IEEE488 (versions"G").
USB host supported - save data into external storage medium.

Model Overview

Modell	IT9121 IT9121(G)	IT9121C IT9121C(G)	IT9121H IT9121H(G)
Measuring range	600 V_RMS/20 A_RMS	600 V_RMS/50 A_RMS	1000 V_RMS/20 A_RMS
Voltage range	15...600 V, 6 ranges	15...600 V, 6 ranges	15...1000 V, 7 ranges
Direct input current range	5 mA...20 A, 12 ranges	1...50 A, 6 ranges	5 mA...20 A, 12 ranges
Accuracy	0.1%
Interfaces	USB, Ethernet/LAN, RS232, versions "G": GPIB/IEEE488
Measurements	Measure voltage, current, power and harmonic parameters at the same time; frequency measurement function; line filter; harmonic measurement up to 50th order, single harmonic analysis function; oscilloscope function; current integration, active power integration; automatic range
Display	4.3"/10.9 cm color TFT LCD
