ITECH IT5100 Series Battery Testers
Description
Files/Downloads
Benefits of the IT5101 (E, H) and IT5102 (E) Battery Internal Resistance Testers
- Various test such as internal resistance, contact resistance, equivalent series resistance (ESR) etc.
- Resistance resolution 0.1 µΩ, voltage resolution 10 µV.
- Simultaneous resistance and voltage measurements.

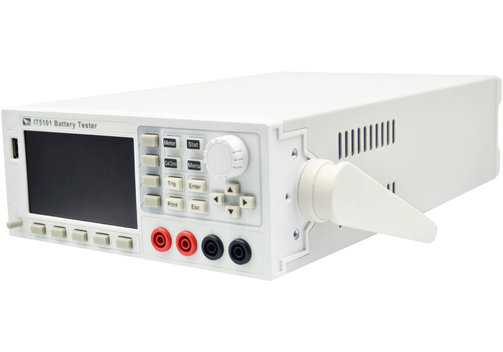

ITECH IT5100 Series Battery Testers
The ITECH IT5100 series are battery internal resistance testers with high precision, high resolution and high speed. The resistance resolution is down to 0.1 µΩ, voltage resolution 10 µV. The IT5100 adopts AC 4-terminal sensing, i.e. the tester not only can test internal resistance and voltage simultaneously with high precision, but also support long-term statistical calculations. From 3 mΩ coin size to 3000Ω large-cell batteries, IT5100 is an ideal solution for the batteries inspection and sorting.
- Battery testers with simultaneous resistance and voltage measurements.
- Resistance measurement 150 µΩ to 3000Ω.
- Voltage measurement 10 µV to 1000 V<./li>
- Up to 3 voltage ranges, 7 resistance ranges, automatic or manual test.
- Up to 125 measurements/s (Ex_fast mode).
- 4.3"/10.9 cm LCD color display.
- Built-in Ethernet/LAN, USB, and optional GPIB/IEEE488 interfaces with SCPI support.
- Statistics calculation and data storage function.
- Comparator function.
- Zero adjustment function.
- 4-terminal AC measurement.
- Measuring result alarm function.
- Applications: Inspection and sorting of all types of batteries, such as high-voltage battery pack test (electric vehicles, lithium battery etc.), battery module testing, large (low-resistance) cell testing, high-speed mass production testing of coin batteries, UPS inspection, deterioration and life assessment of alkaline batteries, lead-acid batteries, various contact resistance tests, ESR/equivalent series resistance test.
Model Overview

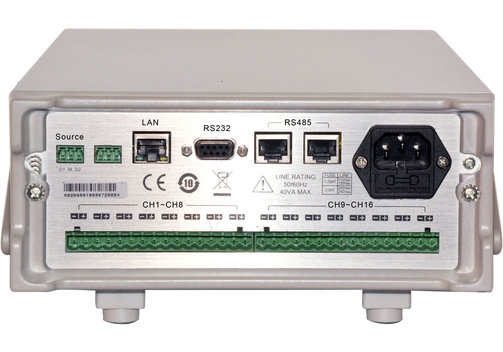

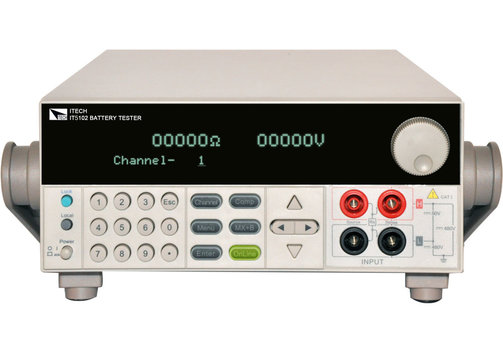

| Model | IT5101 | IT5101E | IT5101H | IT5102 | IT5102E |
| Channels | 1 | 1 | 1 | 16 | 8 |
| Voltage measuring range (resolution) | -6...+6 V (10 µV) -60...+60 V (0.1 mV) -300...+300 V (1 mV) | -6...+6 V (10 µV) -60...+60 V (0.1 mV) -300...+300 V (1 mV) | -10...+10 V (10 µV) -100...+100 V (0.1 mV) -1000...+1000 V (1 mV) | 0...6 V (0.1 mV) 0...60 V (1 mV) | 0...6 V (0.1 mV) 0...60 V (1 mV) |
| Resistance measuring range (resolution) | 3 mΩ (0.1 µΩ) 30 mΩ (1 µΩ) 300 mΩ (10 µΩ) 3Ω (0.1 mΩ) 300Ω (10 mΩ) 3000Ω (0.1Ω) | 300 mΩ (10 µΩ) 3Ω (0.1 mΩ) | 3 mΩ (0.1 µΩ) 30 mΩ (1 µΩ) 300 mΩ (10 µΩ) 3Ω (0.1 mΩ) 300Ω (10 mΩ) 3000Ω (0.1Ω) | 200 mΩ (0.01 mΩ) | 2 Ω (0.1 mΩ) |
| Interfaces | Ethernet/LAN, USB, optional GPIB/IEEE488 | ||||
