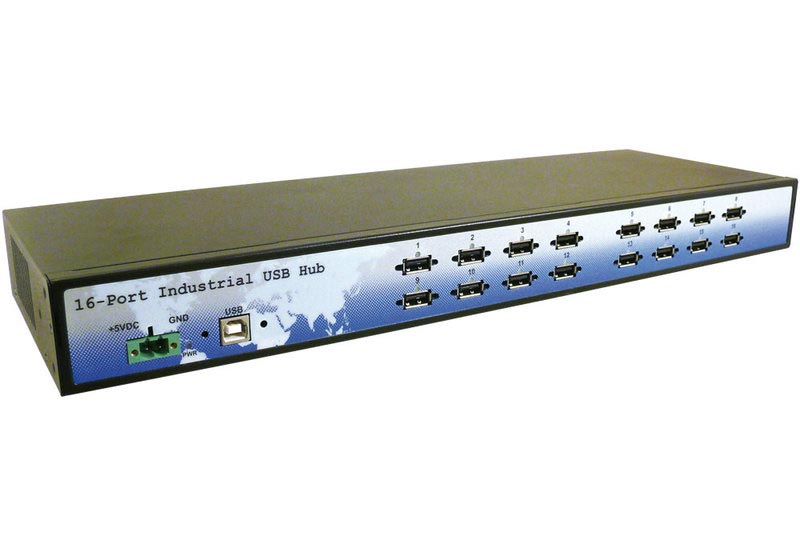

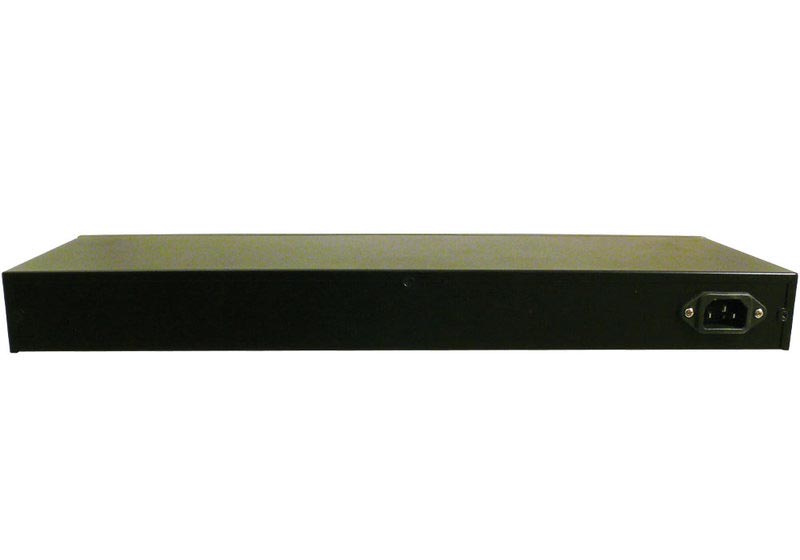

HUB-1600i-RM Industrial-grade 16-Port USB 2.0 Hub

Benefits of the HUB-1600i-RM USB 2.0 Industrial Hub

• 16 USB ports - USB 2.0 FullSpeed and USB 1.1 LowSpeed compatible.
• Industrial-grade with DIN/rack-mountable metal case and wide temperature range.
• Full 500 mA per downsteam port for the connected USB devices.

HUB-1600i-RM Industrial-grade 16-Port USB 2.0 Hub

The HUB-1600i-RM is a rugged, industrial-grade 16-port USB 2.0 hub. The HUB-1600i-RM 16-port USB hub is designed for the use in industrial application under tough working environments. It is housed in a DIN-rail mountable metal case with screw holes for lockable USB and power cables to add extra reliability of connection. The HUB-1600i-RM supports USB 2.0 FullSpeed of 12 Mbps and USB 1.1 LowSspeed 1.5 Mbps. Each downstream port provides full 500 mA power to the connected USB devices. The 16-port USB hub has a wide ambient operating temperature from -40°C to 70°C. All the USB signals are protected by 15 kV ESD protection.

• 16-port USB 2.0 hub.
• Suitable for DIN-rail or rack mounting.
• Common mode filtering on all data lines.
• Over-current detection and protection circuit design.
• Each downstream USB port supplies 5 V/500 mA power for external high-power USB devices.
• Individual port power management.
• Provided a terminal block connector to support 5 V/1 A power for external devices.
• Supports USB 1.1 and USB 2.0 transfer speeds (1.5...480 Mbps), automatic link and speed detection.
• Plug&Play; no software or drivers required.
• 15 kV ESD immunity for serial interface protected.
• LED for power and USB status indication.

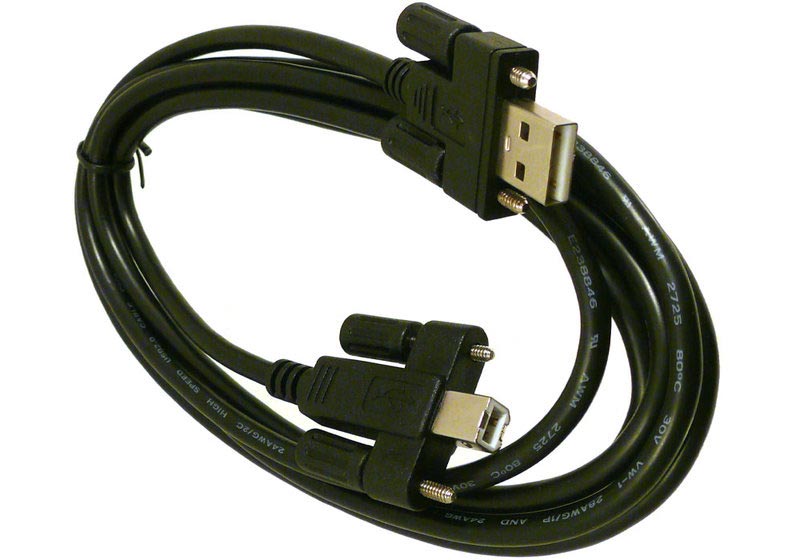

• All USB connectors with screw holes for lock the USB cable.
• Supports wide ambient temperature operation -40°C...70°C (-40°F...158°F).
• CE, FCC approval.
