HIOKI RM3548 Handheld Resistance Meter
Description
Accessories
Files/Downloads
Benefits of the RM3548 Portable Resistance Measurement Device
- High-precision, handheld resistance meter for µΩ to MΩ range.
- 0.02% basic accuracy, 0.1 µΩ max. resolution.
- Rugged and portable design.

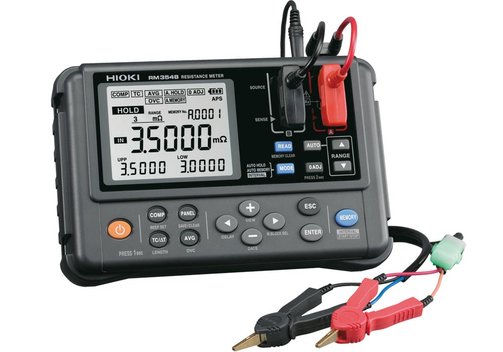

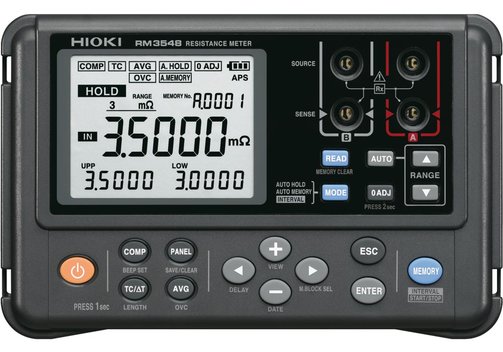

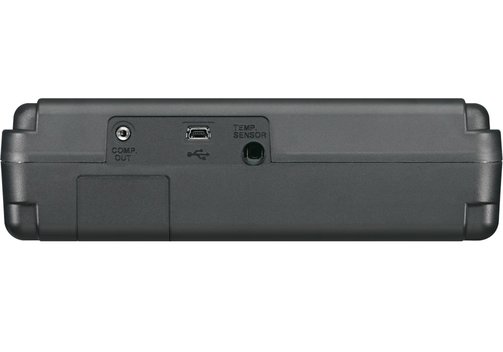

HIOKI RM3548 Handheld Resistance Meter
The HIOKI RM3548 is a high-precision, handheld resistance meter for resistance measurements in ranges from µΩ to MΩ. The RM3548 is the ideal solution for the testing and maintenance of large equipment, such as the winding and weld resistances in large motors and stators for hybrid and electric vehicles.
- High-precision, handheld resistance meter.
- Measure from 0.0 µΩ (testing current 1 A) to 3.5 MΩ.
- 0.02% basic accuracy, 0.1 µΩ max. resolution, 1 A max. testing current.
- Easily record up to 1,000 data points in memory simply by applying the instrument's probes.
- Smoothly capture temperature-rise test data using interval measurement.
- Portable design ideal for maintenance and test of large equipment.
Model Overview
| Model | HIOKI RM3548 |
| Resistance range | 3 mΩ (3.5000 mΩ display max., 0.1 µΩ resolution) to 3 MΩ range (3.5000 MΩ display max., 100 Ω resolution), 10 steps; measurement accuracy: ±0.020% rdg. ±0.007% f.s. |
| Testing current | 1 ADC (at 3 mΩ range)...500 nADC (at 3 MΩ range) |
| Open-terminal voltage | 5.5 VDC max. |
| Temperature measurement | -10.0...+99.9°C, accuracy: ±0.50°C (temperature sensor Z2002 and RM3548 combined accuracy) |
| Measurement speed | Fixed |
| Display refresh rate | Without OVC: approx. 100 ms, with OVC: approx. 230 ms |
| Functions | Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS), averaging, panel store/panel load, USB communication interface (RM3548 internal memory is recognized as a mass storage device when connected to a PC) |
| Memory storage | Number of recordable data points: Manual/auto up to 1,000, interval up to 6,000; interval: 0.2...10.0 s (0.2-s steps); acquisition of data from memory: Display, USB mass storage (CSV, TXT files) |
| Power supply | 8x LR6 (AA) Alkaline batteries |
| Dimensions (mm) | 192 x 121 x 55; 770 g |
Included: HIOKI RM 3548, clip type lead L2107, temperature sensor Z2002, 8x LR6 Alkaline battery, instruction manual, USB cable (A-to-mini B type), strap, spare fuse
