HIOKI PW9100A Power Analyzer Direct Input Box

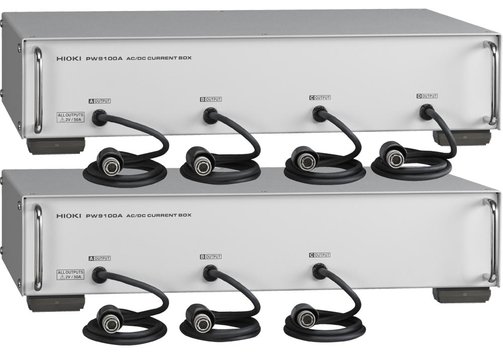

The HIOKI PW9100A is a AC/DC current direct input box for the HIOKI power analyzers PW6001 and PW3390 series. The have wide-band DC to 3.5 MHz, 50 AAC/DC rated inputs and 0.04 V/A outputs. The version -3 has 3 channels, the version -4 has 4 channels. The devices support automatic sensor detection.
- Exceptional measurement bands and accuracy.
- Wide-band DC to 3.5 MHz, 50 AAC/DC rated input.
- ±0.055% power accuracy in combination with PW8001(with U7005).
- 120 dB CMRR (100 kHz).
- Full-rack size suitable for test/evaluation benches.
Model Overview

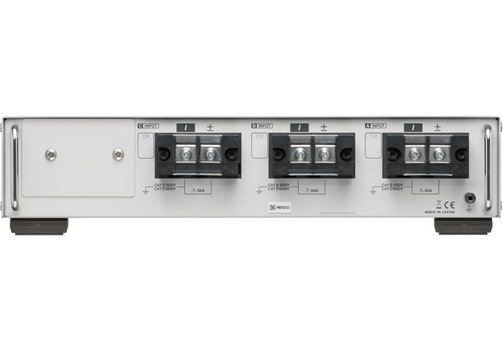

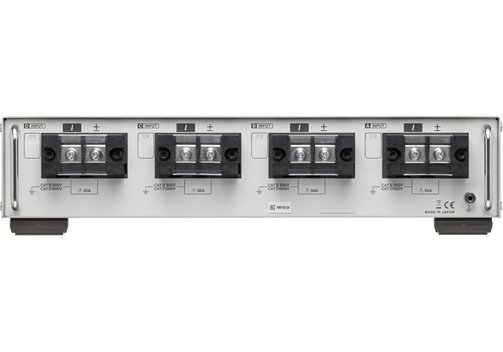

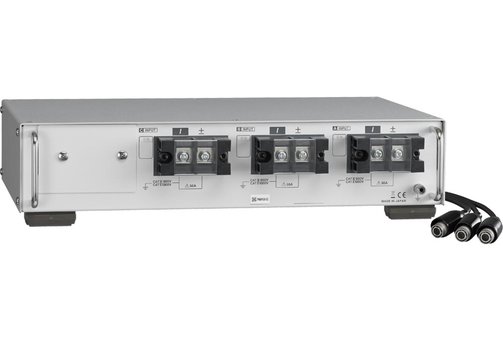

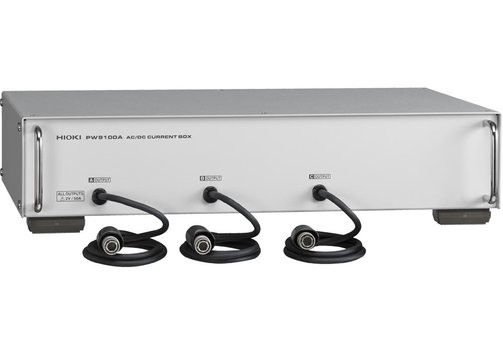

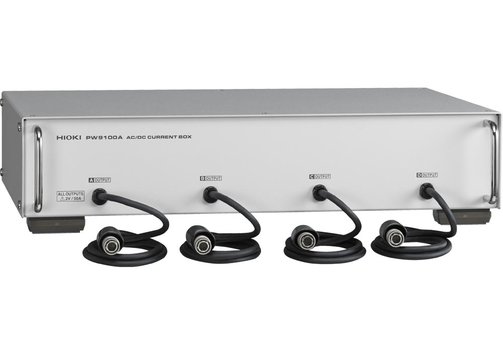

| Model | HIOKI PW9100A-3 | HIOKI PW9100A-4 |
| Measurement line type | Isolated input, DCCT input | |
| Rated primary current | 50 AAC/DC | |
| Number of input channels | 3 | 4 |
| Maximum input current | 60 A, within derating. However, up to ±200 Apeak is allowable if within 20 ms (design value) | |
| Amplitude and phase accuracy | DC (±0.02% rdg. ±0.007% f.s.); 45 Hz < f = 65 Hz (±0.02% rdg. ±0.005% f.s., phase: ±0.1 deg.); Accuracy is defined to 1 MHz | |
| Output voltage | 2 V/50 A | |
| Measurement terminals | Terminal block (with safety cover), M6 screws | |
| Input resistance/capacitance | Resistance: 1.5 mΩ or less (50 Hz/60 Hz); capacitance: Between measurement terminals and case (secondary side), 40 pF or less, defined at 100 kHz | |
| Power supply | From power analyzer | |
| Dimensions (mm) | 430 x 88 x 260; cable length: 0.8 m; 3.7 kg | 430 x 88 x 260; cable length: 0.8 m; 4.3 kg |
Included: PW 9100A, instruction manual.
