HIOKI Pass-through Type Current Sensors

For high-accuracy measurements.
Output terminals: ME15W.

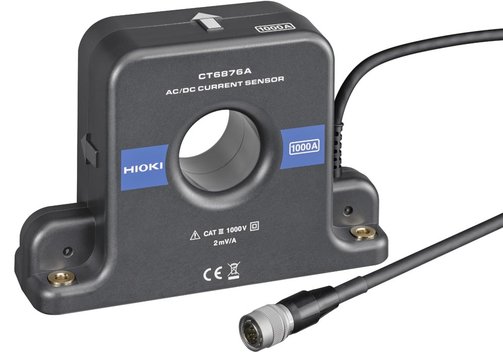

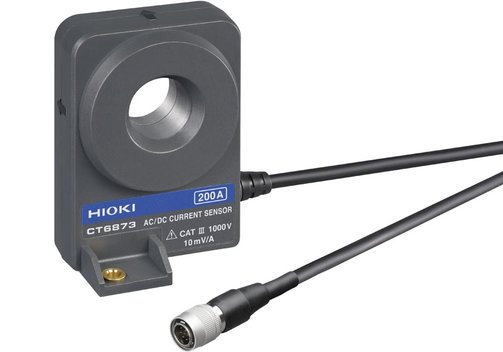

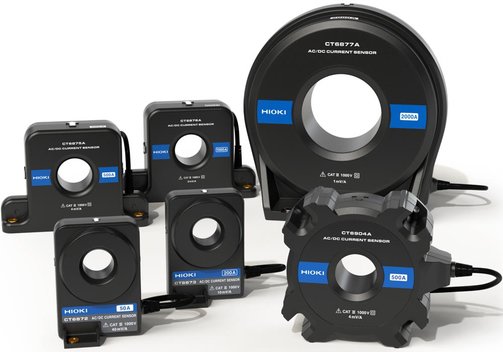

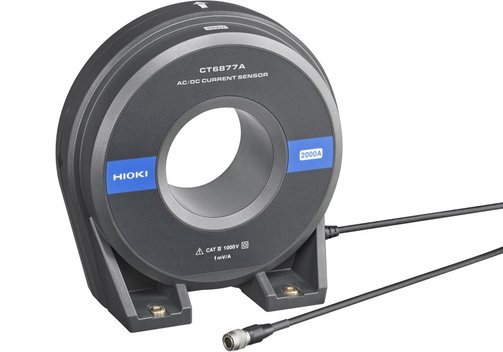

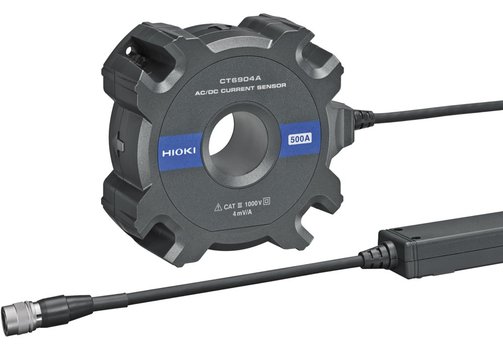

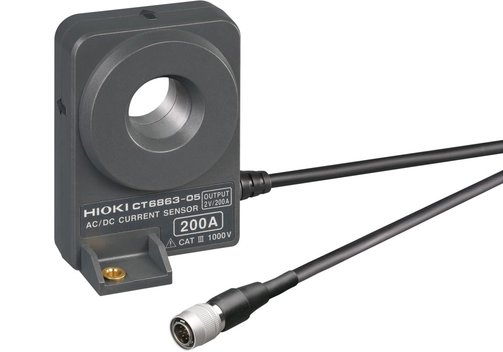

HIOKI Sensors CT6862, CT6872, CT6863, CT6873, CT6875, CT6904, CT6876, CT6877

Model	Rated primary current	Max. peak current	Withstand voltage²⁾	Output voltage	Frequency range	Linearity error	Offset error	Amplitude errors	Diameter of measureable conductors
CT6862-05	50 A_RMS	±141 A_peak	AC 7.4 kV	40 mV/A	DC...1 MHz	-	-	-	24 mm
CT6872 CT6872-01	50 A_RMS	±200 A_peak	AC 7.4 kV	40 mV/A	DC...10 MHz	±2 ppm	±5 ppm	DC: 7 ppm 10...100 Hz: 0.005% 100 Hz...1 kHz: 0.01% 1...50 kHz: 0.1% 50...100 kHz: 0.3% 100...300 kHz: 1% 300 kHz...1 MHz: 3%	24 mm
CT6863-05	200 A_RMS	±565 A_peak	AC 7.4 kV	10 mV/A	DC...500 kHz	-	-	-	24 mm
CT6873 CT6873-01	200 A_RMS	±350 A_peak ¹⁾	AC 7.4 kV	10 mV/A	DC...10 MHz	±2 ppm	±5 ppm	DC: ±7 ppm 10...500 Hz: ±0.005% 500 Hz...3 kHz: ±0.01% 3...30 kHz: ±0.1% 30...100 kHz: ±0.4% 100...400 kHz: ±1% 400 kHz...1 MHz: ±3%	24 mm
CT6875A CT6875A-1	500 A_RMS	±1500 A_peak¹⁾	AC 7.4 kV	4 mV/A	DC...2 MHz DC...1.5 MHz	±5 ppm	±5 ppm	DC: ±10 ppm 10...100 Hz: ±0.005% 100 Hz...1 kHz: ±0.02% 1...20 kHz: ±0.08% 20...100 kHz: ±0.5% 100...300 kHz: ±1% 300 kHz...1 MHz: ±5%	36 mm
CT6904A CT6904A-1	500 A_RMS	±1000 A_peak ¹⁾	AC 7.4 kV	4 mV/A	DC...4 MHz DC...2 MHz	±5 ppm	±10 ppm	-	32 mm
CT6904A-2 CT6904A-3	800 A_RMS	±1200 A_peak ¹⁾	AC 7.4 kV	2 mV/A	DC...4 MHz DC...2 MHz	±12.5 ppm	±10 ppm	-	32 mm
CT6876A CT6876A-1	1000 A_RMS	±1800 A_peak ¹⁾	AC 7.4 kV	2 mV/A	DC...1.5 MHz DC...1.2 MHz	±5 ppm	±5 ppm	DC: ±10 ppm 10...100 Hz: ±0.005% 100 Hz...1 kHz: ±0.03% 1...10 kHz: ±0.2% 10...100 kHz: ±1% 100...300 kHz: ±3% 300 kHz...1 MHz: ±15%	36 mm
CT6877A CT6877A-1	2000 A_RMS	±3200 A_peak ¹⁾	AC 7.4 kV	1 mV/A	DC...1 MHz	±10 ppm	±5 ppm	DC: ±15 ppm 10...100 Hz: ±0.01% 100 Hz...1 kHz: ±0.04% 1...10 kHz: ±0.25% 10...100 kHz: ±1% 100 kHz...300 kHz: ±2% 300 kHz...700 kHz: ±10%	80 mm

1) Within 20 ms and 40°C (104°F) or less.
2) Sensed current of 1 mA, 50/60 Hz, 1 min.
Cable lenght 3 m, versions -01: 10 m.
