Benefits of the MR8870 and MR8880 Mobile Data Recorders

  • Capture, record and observe waveforms with a single, portable device.
  • Compact and easy to carry.
  • Printer option for the MR8880-20 for direct printing of waveforms.

HIOKI MR8870/MR8880 Portable Handheld Memory Recorders

The HIOKI portable/handheld devices MR8870 and MR8880 are rugged memory recorders. They allow to capture, record and observe waveforms oscilloscope-like in mobile applications and in the field.

  • Memory recorder MR8870:

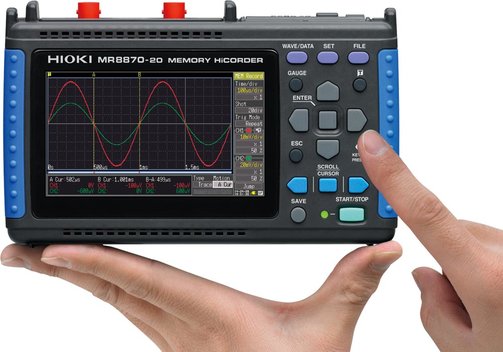

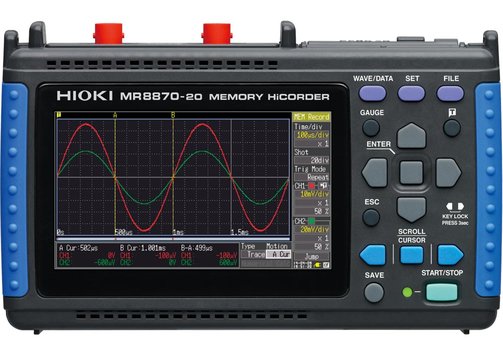

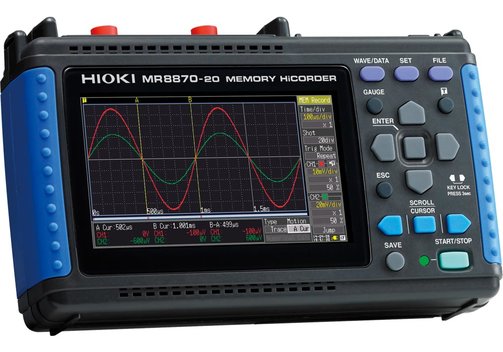

    • Portable memory recorder with 2 channels analog and 4 channels logic.
    • Oscilloscope-like waveform observation and recording of RMS variations.
    • Mode for recording instantaneous waveform and RMS fluctuations.
    • 1 MS/s, 12 bit A/D resolution, 10 mV to 50 V.
    • Record four channels at once by synchronizing two instruments with the bundled PC application.
  • Memory recorder MR8880:

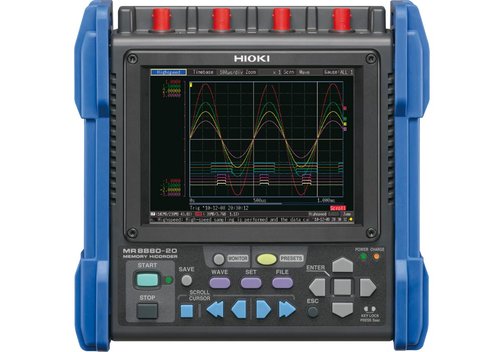

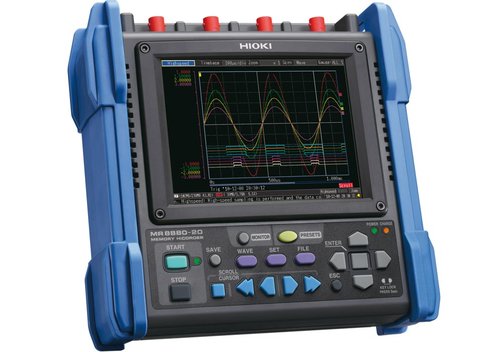

    • Portable memory recorder with 4 channels analog and 8 channels logic.
    • Capture high- to low-voltage signals.
    • 1 MS/s, 1 MWord memory (1 channel), 14 bit A/D resolution.
    • CAT III 600 V isolation performance; directly measure a 480 V power line.
    • 4 completely isolated channels let you simultaneously record data on a 3-phase power line plus have one extra channel.
    • -10...+50°C operating temperature range; rugged to withstand mechanical shocks and vibrations (ships standard with side protectors).
    • Make settings easily with PRESETS function.
    • Printer option available.
  • Battery or AC Adapter operation.
  • Save values in real time to a CF card.
  • Built-in clear TFT LCD.

Model Overview

ModelHIOKI MR8870-20HIOKI MR8880-20
Number of channels2 analog channels + 4 logic channels (standard)4 analog channels + 8 logic channels (standard);
4 channels of voltage measurement - mode switchable between instantaneous waveform or RMS value
Note: Isolated analog channels, isolated input and frame, logic has common GND
Measurement ranges (10 div full-scale)10 mV...50 V/div, 12 ranges, resolution: 1/100 of range10 mV...100 V/div, 13 ranges, resolution: 1/640 of range;
RMS value mode: 30 Hz...10 kHz, Crest factor: 2
Max. rated voltageBetween terminals: 400 VDC;
between terminal to earth: 300 VAC, DC CAT II
Between terminals: 600 VAC/DC;
between terminal to earth: 600 VAC/DC CAT III; 300 VAC/DC CAT IV
Frequency characteristicsDC...50 kHz (-3 dB)DC...100 kHz (±3 dB)
Time axisMemory mode: 100 µs...5 min/div, 20 ranges, at 100 points/div resolution, three steps of time-axis magnification from x2 to x10, and 9 steps of time-axis compression from x1/2 to x1/1,000High-speed function: 100 µs...100 ms/div, 10 ranges, sampling period: 1/100 of range
Recording intervalsRMS mode: 1 ms...1 min, 16 settings, sampling period: 200 µs (fixed; for AC voltage/current, 1,000 RMS values/s), envelope mode always on; note: Only the maximum value and minimum value for each recording interval are recordedReal-time function: 100 µs...1 min, 19 settings (simultaneous sampling in all channels)
Measurement functionsMemory recorder (high speed recording), RMS recorder (50/60 Hz, DC only)High-speed function (high speed recording); real-time function (actual time recording)
Memory capacity12 bit x 2 MWords/channel (1 Word = 2 Byte);
removable storage: CF card slot up to 2 GB
14 bit x 1 MWords/channel (1 Word = 2 Byte);

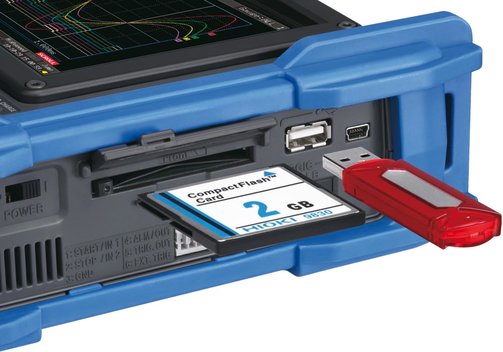

removable storage: CF card slot up to 2 GB, USB 2.0 memory
Printing-With optional printer unit; 112 x 18 m, thermal paper roll, recording speed: 10 mm/s; note: Printing is not supported when using alkaline batteries
Display5.7"/14.5 cm VGA-TFT color LCD (640x480 dots)4.3"/10.9 cm WQVGA-TFT color LCD (480x272 dots)
InterfacesUSB 2.0 mini-B receptacle, function: Connect the instrument to a PC to send files on the CF card to the PC. The instrument cannot be controlled from a PCUSB 2.0 mini-B receptacle; function: Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control
Power supplyAC adaptor Z1005, battery pack 9780, external DC power: 10...16 V, 10 VA max. (connection cable on request)AC adaptor Z1002, battery pack Z1000, 8x LR6 (AA alkaline batteries, cannot be used with the printer unit), DC power supply: 10...28 VDC (connection cable on request)
Dimensions (mm)176 x 101 x 41; 600 g (with battery pack installed)205 x 199 x 67; 1.66 kg (with battery pack installed);
when printer is combined with main unit: 303 x 199 x 67; 2.16 kg (with battery pack installed)

Included: HIOKI MR 8870-20 or 8880-20, instruction manual, AC adapter Z1005 (MR8870) or Z1002 (MR8880), strap, USB cable, application CD; MR8870 additional; Measurement guide, protection sheet 9809; MR8880 additional: Alkaline battery box
