HIOKI Loop Type Current Sensors
Grid power quality control, measurement of larger currents, larger conductor diameters. Output terminals: PL14 (CT7044/5/6) or BNC (CT9667-01/-02/-03).

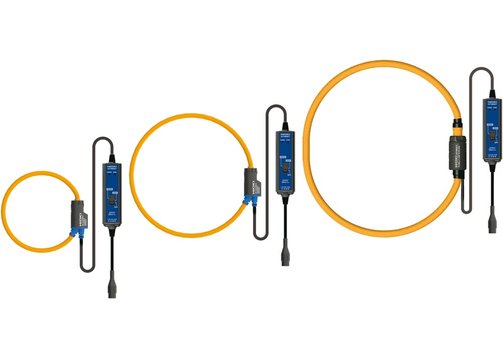

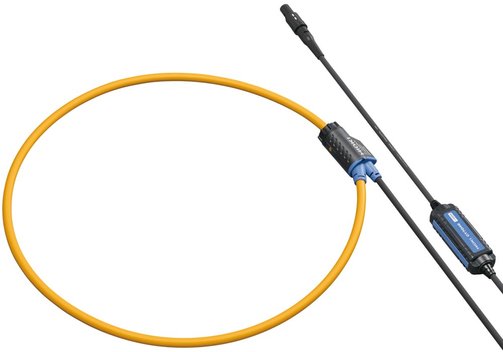

HIOKI Flexible Loop Sensors CT7044, CT7045, CT7046, CT9667-01/-02/-03
Model | Rated current | Frequency range | Amplitude accuracy | Diameter of measurable conductors | Cable length | Operating temperature | CAT |
Measure large currents | |||||||

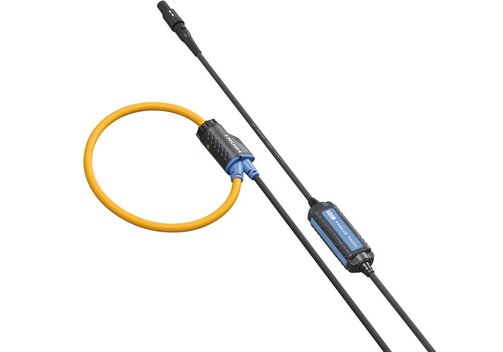

CT7044 | 6000 AAC | 10 Hz...50 kHz | ±1.5% rdg. ±0.25% f.s. | 100 mm | 2.3 m/0.2 m1) | -25...65°C | CAT IV 600 V CAT III 1000 V |

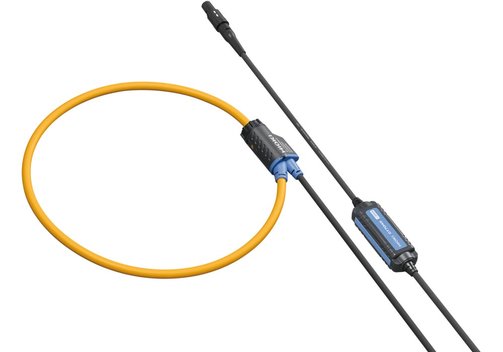

CT7045 | 6000 AAC | 10 Hz...50 kHz | ±1.5% rdg. ±0.25% f.s. | 180 mm | 2.3 m/0.2 m1) | -25...65°C | CAT IV 600 V CAT III 1000 V |
CT7046 | 6000 AAC | 10 Hz...50 kHz | ±1.5% rdg. ±0.25% f.s. | 254 mm | 2.3 m/0.2 m1) | -25...65°C | CAT IV 600 V CAT III 1000 V |

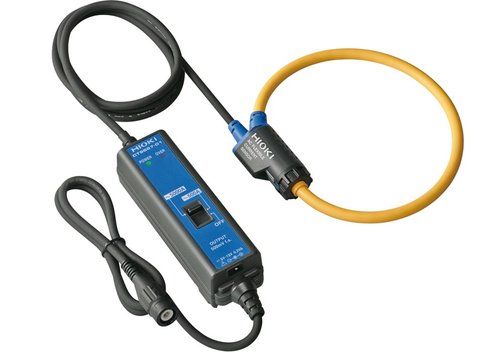

CT9667-01 | 500 AAC, 5000 AAC | 10 Hz...20 kHz | ±2% rdg. ±0.3% f.s. | 100 mm | 2 m/1 m1) | -25...+65°C | 600 V CAT IV 1000 V CAT III |

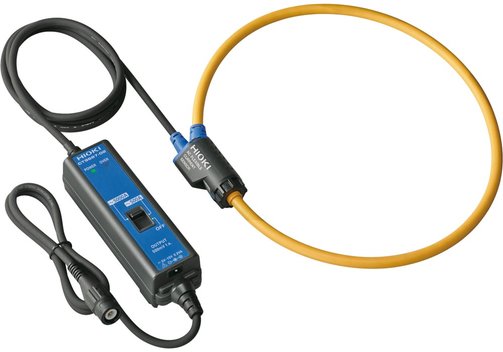

CT9667-02 | 500 AAC, 5000 AAC | 10 Hz...20 kHz | ±2% rdg. ±0.3% f.s. | 180 mm | 2 m/1 m1) | -25...+65°C | 600 V CAT IV 1000 V CAT III |

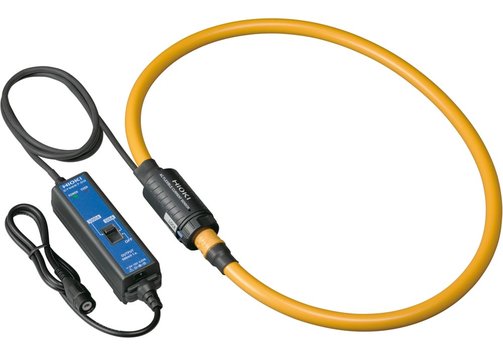

CT9667-03 | 500 AAC, 5000 AAC | 10 Hz...20 kHz | ±2% rdg. ±0.3% f.s. | 254 mm | 2 m/1 m1) | -10...+50°C | 600 V CAT IV 1000 V CAT III |

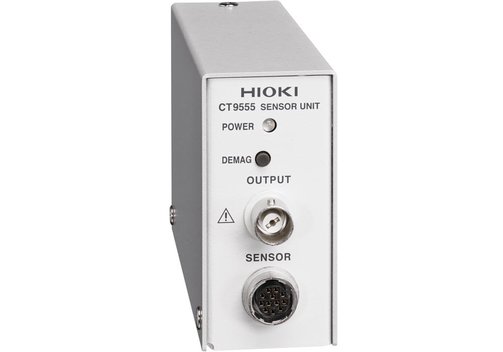

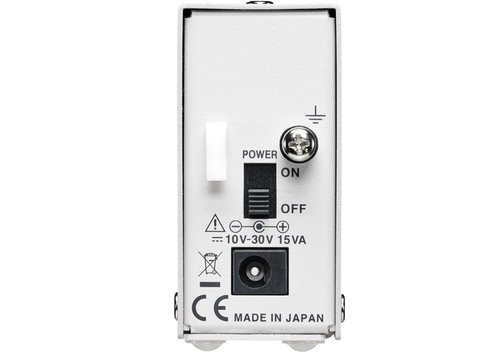

CT9555 | Sensor unit - power supply for current sensors: 1-channel, with waveform output, for the CT6841-05, etc., ME15W connector | ||||||

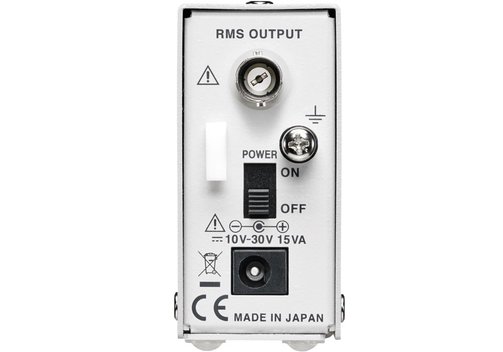

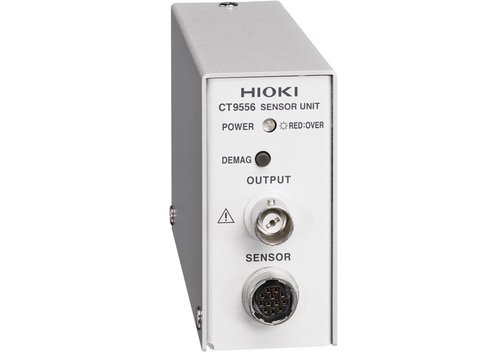

CT9556 | Sensor unit - power supply for current sensors: 1-channel, with waveform/RMS output, for the CT6841-05, etc., ME15W connector | ||||||

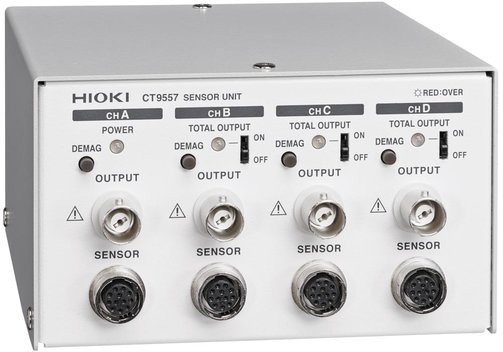

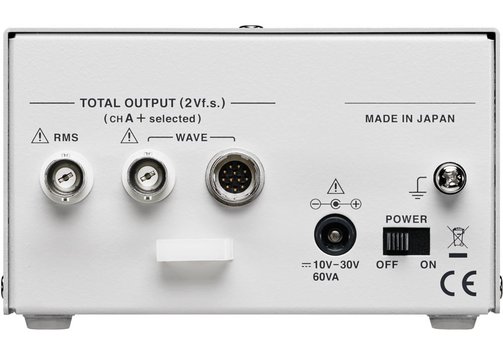

CT9557 | Sensor unit - power supply for current sensors: 4-channel, with waveform/total waveform/total RMS output, for the CT6841-05, etc., ME15W connector | ||||||

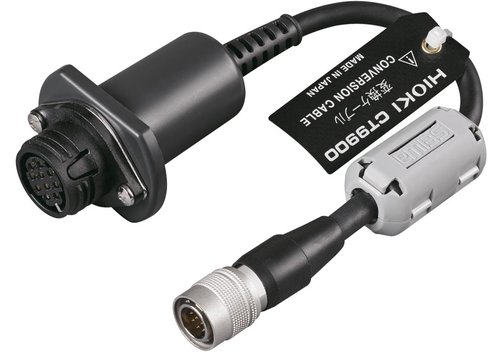

CT9900 | Conversion cable - converts PL23 (10-pin) female terminal to ME15W (12-pin) male terminal | ||||||

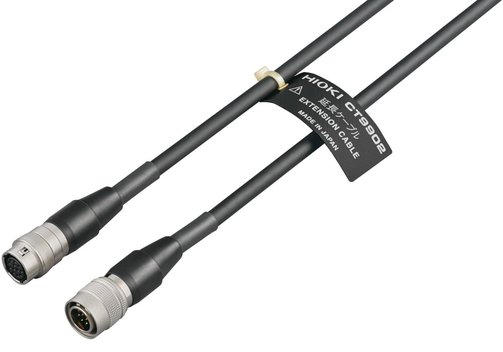

CT9902 | Extension cable - 5 m length, ME15W (12-pin) - ME15W (12-pin) connector, for the CT684x-05 current sensors and similar products | ||||||

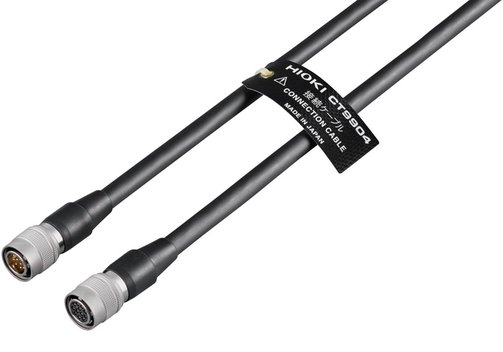

CT9904 | Connection cable - ME15W (12-pin) terminal to ME15W (12-pin) terminal, 1 m length, connects CT9557 total output to PW6001 or PW3390 | ||||||

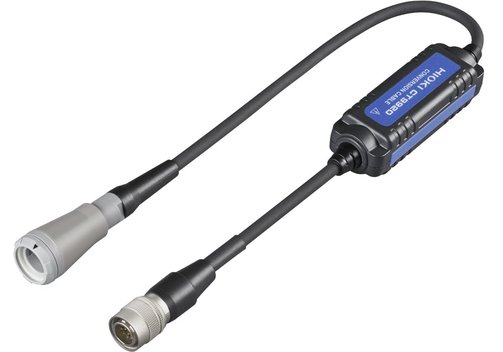

CT9920 | Conversion cable - Required to connect the PW3390 or other instrument's ME15W terminal to a current sensor with a PL14 output connector |
1) Between sensor to circuit box, between circuit box to output connector.
Information on product safety:
Manufacturer:
HIOKI E.E. Corporation, 81 Koizumi Ueda, Nagano 386-1192/JPN
www.hioki.com
(EU branch Germany)
