Benefits of the IR5050 and IR5051 Insulation Resistance Meters

  • Maximum 5 kV test voltage - up to 10 TΩ of insulation resistance testing.
  • IR5051: Measure solar PV system insulation resistance while generating.
  • Handheld instrument with high-safety design.

HIOKI IR505x High Voltage Insulation Tester

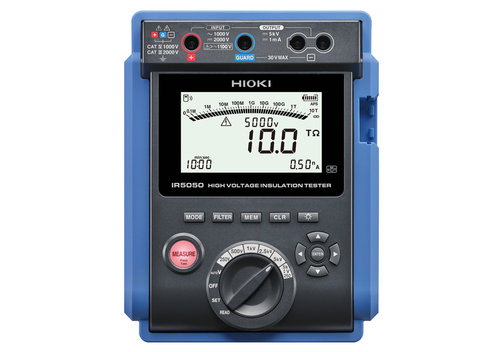

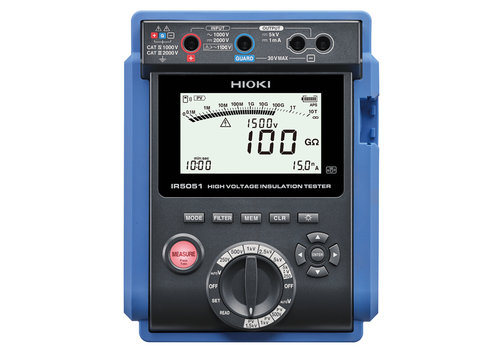

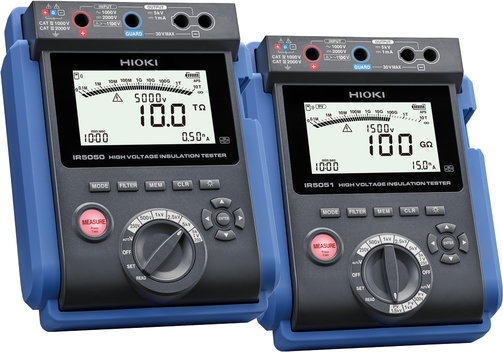

The HIOKI IT5050 and IR5051 are compact, lightweight, high-voltage insulation resistance testers capable of outputting up to 5 kV. Their unique measurement technology enables stable measurements of up to 10 TΩ. In addition, the IR5051 is capable of testing the insulation resistance of solar PV systems during power generation, and has a CAT III 2000 V safety rating to allow testing of 2000 V PV systems.

  • Measure insulation of high-voltage equipment (such as transformers, cables, and motors).
  • IR5051: In addition to a normal insulation resistance measurement mode, the IR5051 also features a specialized mode for measuring PV insulation resistance - 2000 V solar power system compatible.
  • Complies with IEC 62446-1 for Category 1 and Category 2 tests, ensuring robust safety and performance.
  • Wide testing voltage range, up to 5000 V from 250 VDC.
  • Wide measurement insulation range, up to 10 TΩ.
  • Automatically calculated and displayed insulation diagnostics (PI, DAR, and DD).
  • Data memory functions increase your work efficiency by eliminating human errors from manual reporting.

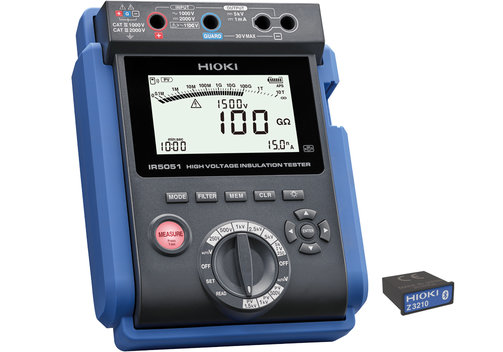

  • Optional USB and wireless connectivity (USB communication package DT4900-01 or Z3210 wireless adaptor required).
  • Compact and lightweight, equipped with an IP65-rated carrying case.
  • High-safety design.

Model Overview

ModelHIOKI IR5050HIOKI IR5051
Measurement parametersInsulation resistance
Leakage current
Voltage
Capacitance (DD function)
Insulation resistance
PV insulation resistance
Leakage current
Voltage
Capacitance (DD function)
Max. rated voltage to terminals1000 VAC, 2000 VDC
Max. rated voltage to ground1000 V (CAT IV), 600 V (CAT III)
FunctionsInsulation diagnosis:
PI, DAR, DD, SV, Ramp, Timer
Others:
Battery charge indicator, live circuit indicator, automatic power save, automatic discharge, backlight, buzzer, manual recording, logging recording, temperature and humidity input, elapsed time display, clock, filter, hardware filter, data-hold, system reset, USB communication (only when DT4900-01 is installed), wireless communication (only when Z3210 is installed), comparator, resistance gauge display, switching of insulation diagnosis function, breakdown cut-off
Insulation diagnosis:
PI, DAR, DD, SV, Ramp, Timer (only four can be set in the PV insulation resistance function)
Others:
Battery charge indicator, live circuit indicator, automatic power save, automatic discharge, backlight, buzzer, manual recording, logging recording, temperature and humidity input, elapsed time display, clock, filter, hardware filter, data-hold, system reset, USB communication (only when DT4900-01 is installed), wireless communication (only when Z3210 is installed), comparator, resistance gauge display, switching of insulation diagnosis function, breakdown cut-off, negative voltage notification
Insulation resistance measurement:
Test voltage range DC 250 V...5.20 kV.
Test voltage presets 250 V, 500 V, 1000 V, 2500 V, 5000 V.
User-set test voltage 250 V...1 kV: in 10-V increments; 1...5 kV: in 25-V increments.
Rated current 1...1.2 mA
-PV insulation resistance:
Test voltage range DC 250 V...2.00 kV.
Test voltage presets 500 V, 1 kV, 1.5 kV.
User-set test voltage 250 V...1 kV: in 10-V increments; 1...2 kV: in 25-V increments.
Rated current (test voltage)/20 MΩ
Leakage current measurement, measurement range (auto) 10 nA, 100 nA, 1000 nA, 10 µA, 100 µA, 1 mA
Voltage measurement, guaranteed accuracy range 30...1,000 VAC (45...65 Hz), ±10...±2,000 VDC
Capacitance measurement, measurement range 100 nF, 1000 nF, 10 µF
EnvironmentalOperating temperature and humidity range -20...+50°C (no condensation), dustproof/waterproof IP40 (with protector attached, excluding terminals); IP65 (carrying case C0212)
StandardsEN61010 (safety), EN61326 (EMC), IEC 61557-1, IEC 61557-2 (Insulation resistance tester)
Power supply8x LR6 (AA) alkaline battery/8x HR6 (AA) nickel-metal hydride (NiMH) rechargeable battery
Dimensions (WxHxD, mm)195 x 254 x 89, 1.7 kg (incl. batteries)

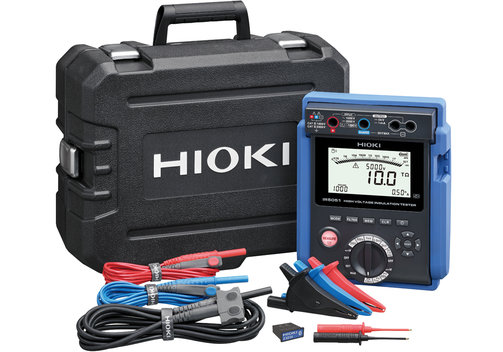

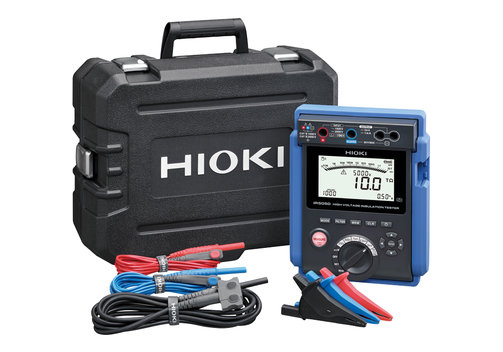

Included: Test lead L9850-01, test lead L9850-02, test lead L9850-03, alligator clip L9851-01, alligator clip L9851-02, alligator clip L9851-03, carrying case C0212, 8x LR6 Alkaline battery, instruction manual, operating precautions, version L5051 additional: Test pin set L9852, version IR5051-90 additional: Wireless adaptor Z3210.
