Benefits of the IM3590 Impedance Analyzer for Electrochemical Components

  • Chemical impedance analyzer for electrochemical components, materials, batteries, EDLCs.
  • Continuous measuring and high-speed testing of LCR and sweep measurements.
  • Signal source range 1 mHz to 200 kHz.

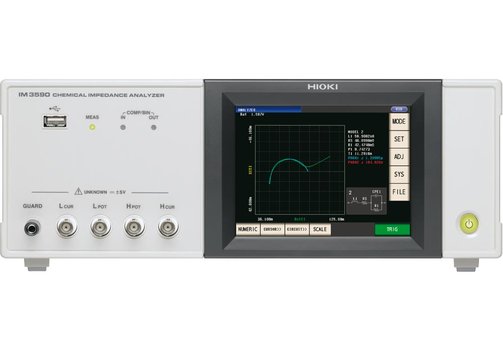

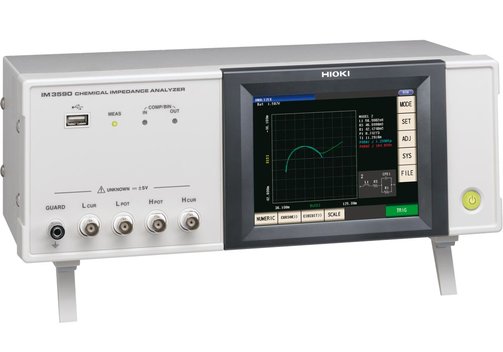

HIOKI IM3590 Chemical Impedance Analyzer

The HIOKI IM3590 is a chemical impedance analyzer for R&D applications of electrochemical components and materials, batteries, and EDLCs.

  • Wide signal source range of 1 mHz to 200 kHz.
  • Supports measurements of ion behavior and solution resistance.
  • A single instrument for continuous measuring and high-speed testing of LCR and sweep measurements.
  • Internal impedance of batteries with no load can be measured.
  • High-speed sweep measurements in as little as 2 ms.
  • Basic accuracy of ±0.05% is ideal for applications from component testing to R&D.
  • Measure LCR impedance for Cole-Cole plots and equivalent-circuit analyses of electro-chemical components and materials.

Model Overview

ModelHIOKI IM3590
Measurement modesLCR mode, continuous measurement mode (LCR mode/analyzer mode), analyzer mode (sweeps with measurement frequency and measurement level, temperature characteristics, equivalent circuit analysis)
Measurement parametersZ, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tan δ), Q, T, σ (conductivity), ε (dielectric constant)
Measurement range100 mΩ...100 MΩ, 10 ranges (all parameters are determined according to Z)
Display rangeZ, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε: ±(0.00000 [unit]...9.99999 G [unit], absolute value display for Z and Y only;
θ: ±(0.000°...180.000°), D: ±(0.00000...9.99999);
Q: ±(0.00...99999.9), Δ%: ±(0.0000% to 999.999%);
T: -10.0...+99.9°C;
σ, ε: ±(0.00000 f [unit]...999.999 G [unit]
Basic accuracyZ: ±0.05% rdg. θ: ±0.03°
Measurement frequency1 mHz...200 kHz (5 digits setting resolution, minimum resolution 1 mHz)
Measurement signal levelNormal mode:
V mode/CV mode: 5 mV...5 VRMS, 1 mVRMS steps;
CC mode: 10 µA...50 mARMS, 10 µARMS steps.

Low impedance high accuracy mode:
V mode/CV mode: 5 mV...2.5 VRMS, 1 mVRMS steps;
CC mode: 10 µA...100 mARMS, 10 µARMS steps
Output impedanceNormal mode: 100 Ω; low impedance high accuracy mode: 25 Ω
Display5.7"/14.5 cm color TFT, touch screen; display can be set to ON/OFF
Measurement time2 ms (1 kHz, FAST, display OFF, representative value)
FunctionsDC bias measurement, DC resistance temperature compensation (converted reference temperature is displayed), temperature measurement, battery mesurement (automatic DC biasing system), comparator, BIN measurement (classification), panel loading/saving, memory function
InterfacesEXT I/O (handler), USB 2.0 (high-speed) host and device; optional: Choose 1 from RS232C (option Z3001), GPIB (option Z3000), or LAN (option Z3002)
Dimensions (mm)330 x 119 x 168, 3.1 kg

Included: IM 3590, power cord, instruction manual, CD (communication instruction manual and sample software (communications control, accuracy calculation, and screen capture functionality).

Information on product safety:

Manufacturer:
HIOKI E.E. Corporation, 81 Koizumi Ueda, Nagano 386-1192/JPN
www.hioki.com
(EU branch Germany)

Datasheet_HIOKI_IM3590_en.pdf
