Benefits of the IM3570 LCR Meter and Impedance Analyzer

  • LCR meter and impedance analyzer in one: A single device for high speed testing and frequency sweeping.
  • Testing speeds of 1.5 ms (1 kHz) and 0.5 ms (100 kHz) in LCR mode.
  • 4 Hz to 5 MHz measurement frequency.

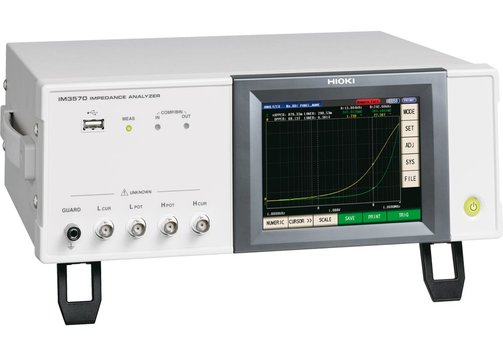

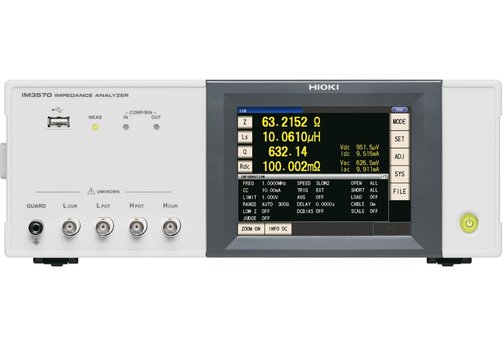

HIOKI IM3570 Impedance-Analyzer

The HIOKO IM3570 is an LCR meters and impedance analyzer - a single device solution for high speed testing and frequency sweeping. The device suits a wide range of applications in the testing of electronic components. Thanks to its superior low-impedance repeatability, the IM3570 is the ideal solution for use in applications requiring low-ESR measurement on the order of several milliohms, such as testing of functional polymer capacitors.

  • LCR meters and impedance analyzer.
  • A single instrument for continuous LCR/DCR/sweep measurements and high-speed testing.
  • High-speed testing with max. speeds of 1.5 ms (1 kHz) and 0.5 ms (100 kHz) in LCR mode.
  • High-accuracy measurements with a basic accuracy (Z parameter) of ±0.08%.
  • Perfect impedance analyzer for testing the resonance characteristics of piezoelectric elements, C-D and low ESR measurement of functional polymer capacitors, DCR and L-Q measurement of inductors (coils and transformers).
  • Perform frequency sweeps, level sweeps, and time interval measurements in analyzer mode.

Model Overview

ModelHIOKI IM3570
Measurement modesLCR mode, analyzer mode (sweeps with measurement frequency and measurement level), continuous measurement mode
Measurement parametersZ, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tan δ), Q
Measurement range100 mΩ...100 MΩ, 12 ranges (all parameters are determined according to Z)
Display rangeZ, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp: ±(0.000000 [unit] to 9.999999 G [unit], absolute value display for Z and Y only;
θ: ±(0.000°...180.000°), D: ±(0.000000...9.999999);
Q: ±(0.00...99999.99), Δ%: ±(0.0000%...999.9999%)
Basic accuracyZ ±0.08% rdg. θ: ±0.05°
Measurement frequency4 Hz...5 MHz (5 digits setting resolution, minimum resolution 10 mHz)
Measurement signal levelNormal mode:
V mode/CV mode: 5 mV...5 VRMS (up to 1 MHz);
10 mV...1 VRMS (1.0001...5 MHz), 1 mVRMS steps;
CC mode: 10 µA...50 mARMS (up to 1 MHz);
10 µA...10 mARMS (1.0001...5 MHz), 10 µARMS steps.

Low impedance high accuracy mode:
V mode/CV mode: 5 mV...1 VRMS (up to 100 kHz), 1 mVRMS steps;
CC mode: 10 µA...100 mARMS (100 mΩ and 1 Ω ranges of up to 100 kHz), 10 µARMS steps
Output impedanceNormal mode: 100 Ω, low impedance high accuracy mode: 10 Ω
Display5.7"/14.5 cm color TFT, display can be set to ON/OFF
Measurement time0.5 ms (100 kHz, FAST, display OFF, representative value)
FunctionsDC bias measurement, comparator, BIN measurement (classification), panel loading/saving, memory function

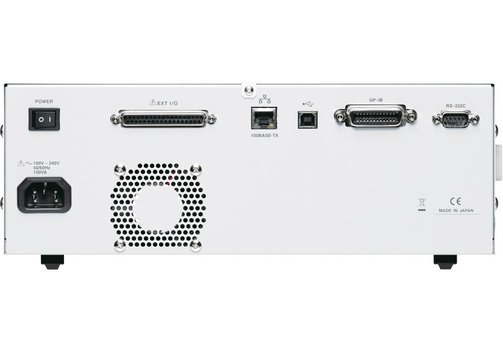

InterfacesEXT I/O (handler), RS232C, GPIB, USB communication, USB memory, LAN
Dimensions (mm)330 x 119 x 307; 5.8 kg

Included: IM 3670, power cord, instruction manual, PC communication instruction manual (CD).
