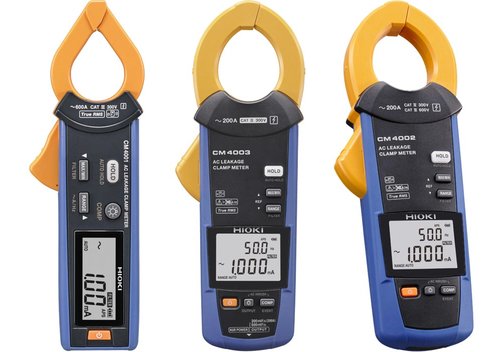

HIOKI CM400x Series AC Leakage Current Clamp Meters
- Clamp meters for leakage currents, residual currents, and load currents.
- AC current measuring range depending on variant 60/600 mA, 6/60/600 A, or 6/60/600 mA, 6/60/200 A.
- Frequency measuring range depending on model version 40 Hz...1 kHz or 15 Hz...2 kHz.
- All models with TrueRMS.
- Live measurement data on the smartphone or tablet with free app.

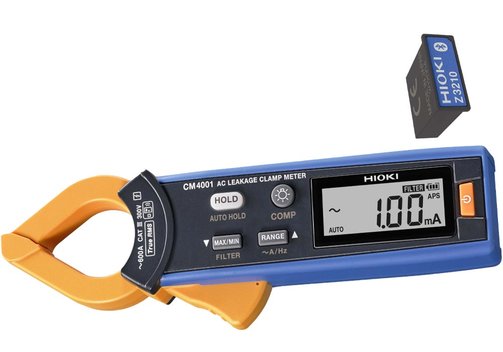

- Optional HIOKI Z3210 Bluetooth adaptor easy to retrofit or as variants -90 ex works.
- Wire diameter 24 mm or 40 mm.
Model Overview

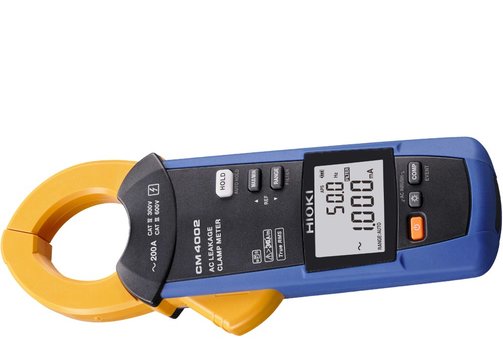

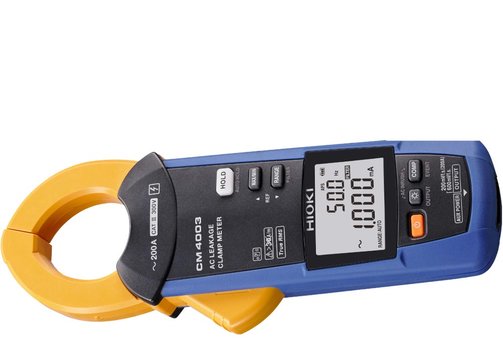

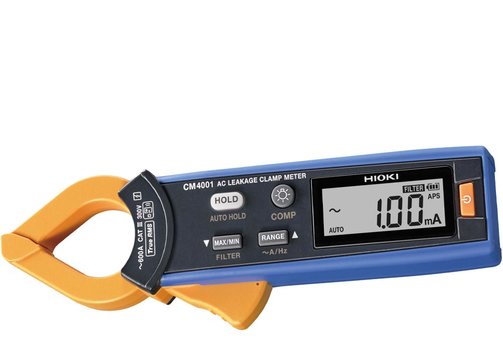

| Model | CM4001(-90) | CM4002(-90) | CM4003(-90) |
| AC current measuring range | 60 mA, 600 mA, 6 kHz, 60 kHz, 600 kHz | 6 mA, 60 mA, 600 mA, 6 kHz, 60 kHz, 200 kHz | |
| Frequency measuring range | 40 Hz...1 kHz | 15 Hz...2 kHz | |
| Measurement category | CAT III 300 V | CAT IV 300 V, CAT III 600 V | CAT III 300 V |
| Functions | Filter, memory function (HOLD manual/automatic), max, min, average and peak values (MAX, MIN), inrush current measurement (AC INRUSH), comparator (COMP), simple event counter, automatic power saving function (APS), backlighting | ||
| - | - | Output function (OUTPUT) | |
| Update rate | 5 times/s | ||
| Crest factor | 3 | 1.5 (range 200.0 kHz), 3 (range outside 200.0 kHz) | |
| Standards | Safety EN 61010, EMC EN 61326 | ||
| Max. Cable diameter | Ø24 mm | Ø40 mm | |
| Dimensions (mm) | 37 x 160 x 27; 115 g | 64 x 233 x 37; 400 g | |
| Power supply | 1x AAA (LR03 alkaline batteries) | 2x AA (LR6 alkaline batteries) | 2x AA (LR6 alkaline batteries), external power supply (USB C) |
| Protection class | - | IP 40 (with closed jaws) | |
| Scope of delivery | 1x AAA (LR03 alkaline batteries), carrying case, operating instructions, safety instructions, tape | 2x AA (LR6 alkaline batteries), carrying case C0203, operating instructions, safety instructions | 2x AA (LR6 alkaline batteries), carrying case C0203, operating instructions, safety instructions, connection cable L9097, USB power supply cable L9510 |

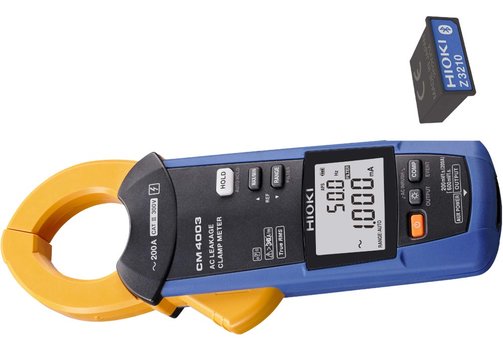

| Variants -90: Additionally with Z3210 Bluetooth adaptor | |||
Information on product safety:
Manufacturer:
HIOKI E.E. Corporation, 81 Koizumi Ueda, Nagano 386-1192/JPN
www.hioki.com
(EU branch Germany)
