HIOKI Clamp Type Current Sensor

starting € 199,92

including VAT plus shipping

min Quantity

1 piece

Unit price

base price

Variants

technical Question?

Please fill in all fields.

Question Type

Your E-mail Adress

My Question:

Please validate that you are not a robot.

I accept the Privacy Policy

Description

Files/Downloads

HIOKI Clamp Type Current Sensors

High-Accuracy Measurement - HIOKI Sensors 9272, CT683x, CT684xA

High-accuracy measurements, output terminals ME15W.

Model	Rated primary current	Max. peak current	Withstand voltage²⁾	Output voltage	Frequency range	Linearity error	Offset error	Amplitude errors	Diameter of measureable conductors
9272-05	20 A_RMS 200 A_RMS	±71 A_peak ±430 A_peak	AC 5.4 kV	100 mV/A 10 mV/A	1 Hz...100 kHz	-	-	-	46 mm
▸CT6833 ▸CT6833-01	200 A_RMS	±600 A_peak	AC/DC 1 kV³⁾	10 mV/A	DC...50 kHz	±10 ppm	-	10...100 Hz: ±50 ppm 100...500 Hz: ±0.04% 500 Hz...1 kHz: ±0.08% 1...20 kHz: ±(0.1 × f [kHz])%	20 mm
▸CT6834 ▸CT6834-01	500 A_RMS	±800 A_peak	AC/DC 1 kV³⁾	4 mV/A	DC...50 kHz	±10 ppm	-	10...100 Hz: ±50 ppm 100...500 Hz: ±0.04% 500 Hz...1 kHz: ±0.08% 1...20 kHz: ±(0.1 × f [kHz])%	20 mm

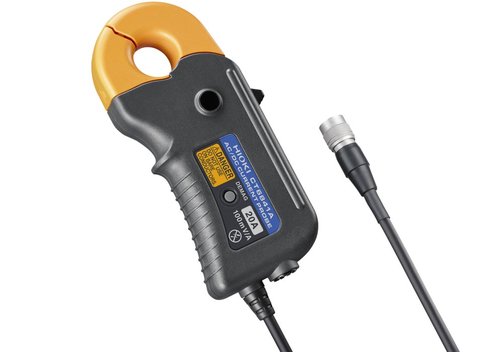

CT6841A	20 A_RMS	±60 A_peak¹⁾	AC 4.26 kV	100 mV/A	DC...2 MHz	±20 ppm	-	-	20 mm

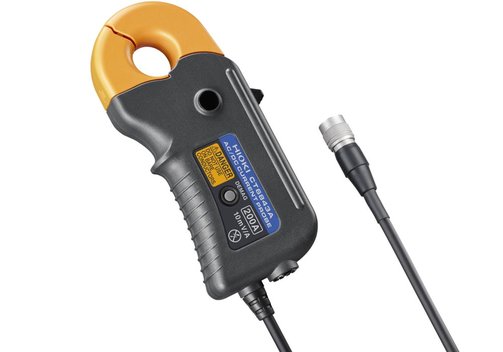

CT6843A	200 A_RMS	±600 A_peak¹⁾	AC 4.26 kV	10 mV/A	DC...700 kHz	±20 ppm	-	-	20 mm
CT6844A	500 A_RMS	800 A_peak¹⁾	AC 4.26 kV	4 mV/A	DC...500 kHz	±20 ppm	-	-	20 mm

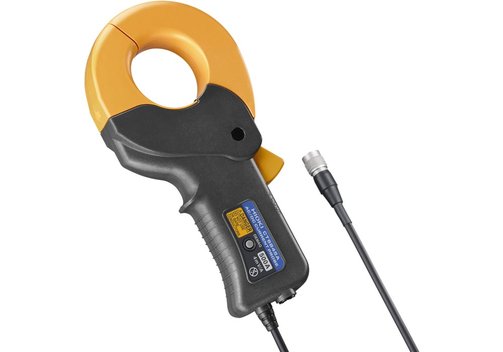

CT6845A	500 A_RMS	±1500 A_peak¹⁾	AC 4.26 kV	4 mV/A	DC...200 kHz	±20 ppm	-	-	50 mm

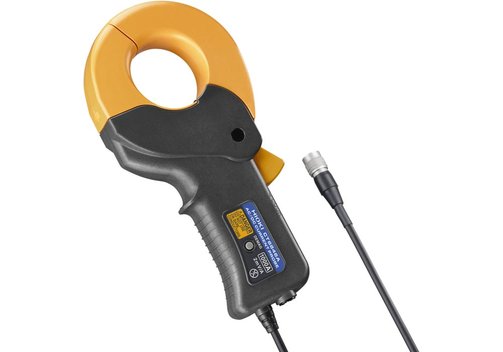

CT6846A	1000 A_RMS	±1900 A_peak¹⁾	AC 4.26 kV	2 mV/A	DC...100 kHz	±20 ppm	-	-	50 mm

1) Within 20 ms and 40°C (104°F) or less.
2) Sensed current of 1 mA, 50/60 Hz, 1 min.
3) With the measuring conductor clamped.
Cable lenght 3 m, versions -01: 10 m.

Grid Power Quality Control - HIOKI Sensors CT6500, CT71xx, CT76xx, CT77xx, 90xx, 91xx, 96xx

Grid power quality control, load currents, leakage currents.

Model	Rated current	Frequency range	Amplitude accuracy	Diameter of measurable conductors	Cable length	Operating temperature	CAT	Output terminals
Measurement of load current

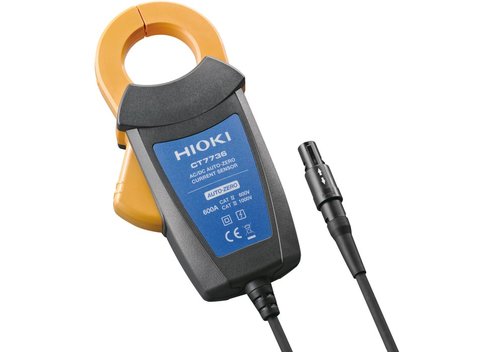

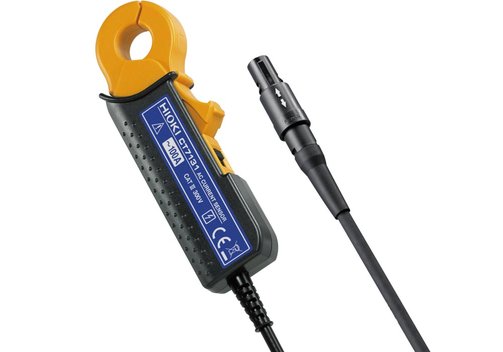

CT7126 CT7131	60 AAC 100 AAC	40 Hz...20 kHz	±0.3% rdg. ±0.01% f.s. ±0.3% rdg. ±0.02% f.s.	15 mm	2.5 m	-10...+50°C	CAT III 300 V	PL14

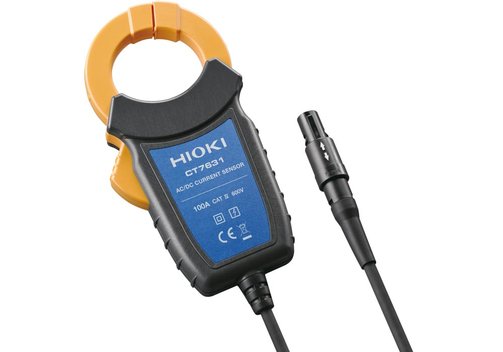

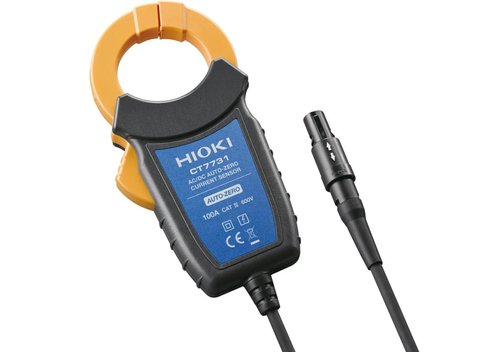

CT7731 CT7631	100 AAC/DC	DC...5 kHz DC...10 kHz	±1.0% rdg. ±0.5% f.s.	33 mm	2.5 m	-25...+65°C	CAT IV 600 CAT	PL14

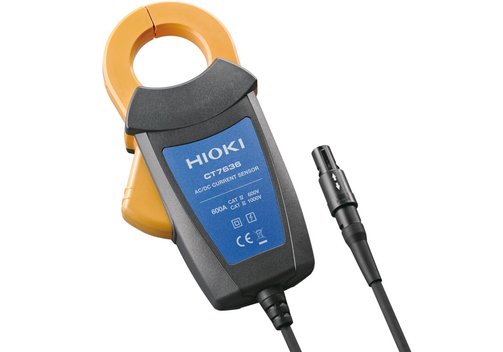

CT7736 CT7636	600 AAC/DC	DC...5 kHz DC...10 kHz	±2.0% rdg. ±0.5% f.s.	33 mm	2.5 m	-25...+65°C	CAT IV 600 CAT CAT III 1000 CAT	PL14

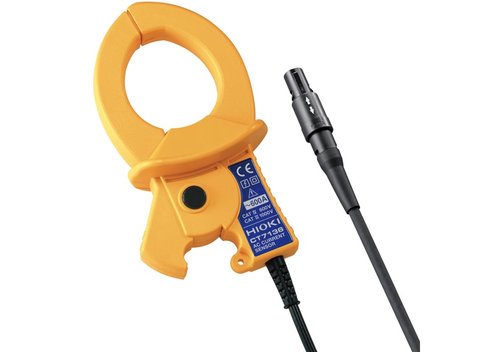

CT7136	600 AAC/DC	40 Hz...20 kHz	±0.3 % rdg. ±0.01 % f.s.	46 mm	2.5 m	-10...+50°C	CAT IV 600 CAT CAT III 1000 CAT	PL14

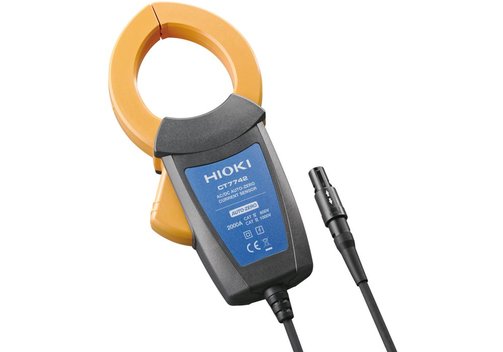

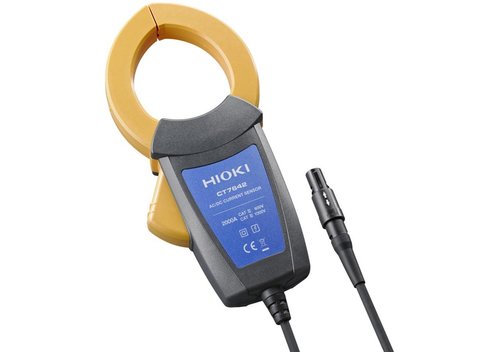

CT7742 CT7642	2000 AAC/DC	DC...5 kHz DC...10 kHz	±1.5% rdg. ±0.5% f.s.	55 mm	2.5 m	-25...+65°C	CAT IV 600 CAT CAT III 1000 CAT	PL14
9694	5 AAC	40 Hz...5 kHz	±0.3% rdg. ±0.02% f.s.	15 mm	3 m	0...50°C	300 CAT CAT III	BNC
9695-02¹⁾	50 AAC	40 Hz...5 kHz	±0.3% rdg. ±0.02% f.s.	15 mm	-	0...+50°C	300 CAT CAT III	BNC
9660	100 AAC	40 Hz...5 kHz	±0.3% rdg. ±0.02% f.s.	15 mm	3 m	0...+50°C	300 CAT CAT III	BNC
9695-03¹⁾	100 AAC	40 Hz...5 kHz	±0.3% rdg. ±0.02% f.s.	15 mm	-	0...+50°C	300 CAT CAT III	BNC
9010-50	10 A...500 AAC	40 Hz...1 kHz	±2% rdg. ±1% f.s.	46 mm	3 m	0...+50°C	600 CAT CAT III	BNC
9018-50	10 A...500 AAC	40 Hz...3 kHz	±1.5% rdg. ±0.1% f.s.	46 mm	3 m	0...+50°C	600 CAT CAT III	BNC
9132-50	20 A...1000 AAC	40 Hz...1 kHz	±3 % rdg. ±0.2 % f.s.	55 mm	3 m	-10...+50°C	600 CAT CAT III	BNC

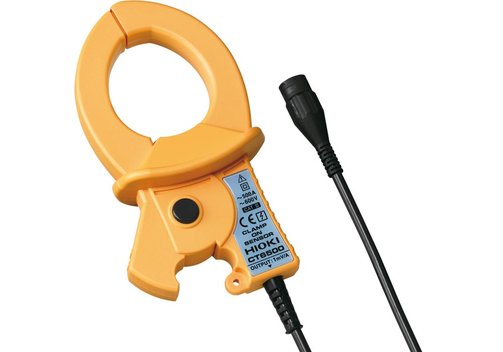

CT6500	500 AAC	40 Hz...1 kHz	±1.5 % rdg. ±0.03 % f.s.	46 mm	3 m	0...+50°C	600 CAT CAT III	BNC
9661	500 AAC	40 Hz...5 kHz	±0.3% rdg. ±0.01% f.s.	46 mm	3 m	0...+50°C	600 CAT CAT III	BNC
9669	1000 AAC	40 Hz...5 kHz	±1.0% rdg. ±0.01% f.s.	55 mm	3 m	0...+50°C	600 CAT CAT III	BNC
Measurement of leakage current

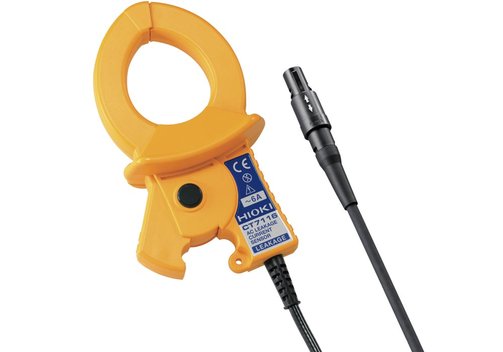

CT7116	6 AAC	40 Hz...5 kHz	±1.0% rdg. ±0.05% f.s.	40 mm	2.5 m	-25...+65°C	-	PL14
9657-10	10 AAC	40 Hz...5 kHz	±.1.0 % rdg. ±0.05 % f.s.	40 mm	3 m	0...+50°C	-	BNC
9675	10 AAC	40 Hz...5 kHz	±.1.0 % rdg. ±0.005 % f.s.	30 mm	3 m	0...+50°C	-	BNC

1) The 9695-02 and 9695-03 use an M3 terminal block for their output terminals. The extra purchase of the connection cable 9219 is required.

Information on product safety:

Manufacturer:
HIOKI E.E. Corporation, 81 Koizumi Ueda, Nagano 386-1192/JPN
www.hioki.com
(EU branch Germany)

Datasheet_HIOKI_Current-Sensors-Overview_en.pdf
