Benefits of the BT356x Series for Measuring Battery Quality
- Inspect the quality of completed cells, modules, and packs on production line.
- Measure the voltage of battery packs depending on model up to 1000 V.
- Veratile set of functions and interfaces for industrial applications.

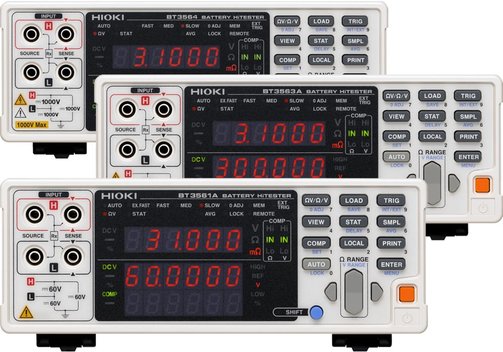

HIOKI BT356x Series Battery Testers
The HIOKI BT356x series battery testers are used to inspect the quality of completed cells, modules, and packs on production lines. The testers can measure internal resistance (AC-IR) and open-circuit voltage (OCV) to check battery quality.
- BT356xA series: BT3561A, BT3562A, BT3563A
- Simultaneous measurement of internal resistance and open circuit voltage.
- Fully automated production line testing of small or large cells and packs up to 60, 100, or 300 V, power motors, xEVs.
- Resistance measurement ranges depending on model: 3 mΩ/30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ.
- Voltage measurement ranges, depending on model: 6 V/60 V/100 V or 300 V.
- Equipped with LAN.
- BT356x series: BT3562-01, BT3563-01, BT3564
- Measure the voltage of battery packs depending on model up to 60 V, 300 V or 1000 V.
- Production line testing of high-voltage battery packs and battery modules, BT3564 for EV, PHEV.
- BT3462-1, BT356-1: Large (low-resistance) cell testing.
- BT3564: 0.1 µΩ to 3000 Ω internal resistance range (pack total resistance, bus bar resistance). Spark discharge reduction function. Optional measurement probe available for 1000 V and high-voltage battery packs.
- Applications

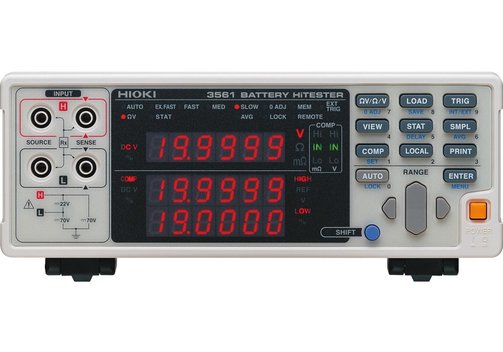

- 3561: Measure battery packs with up to 22 V.
- BT3561A: Small cells for power motors. Small packs of up to 60 V.

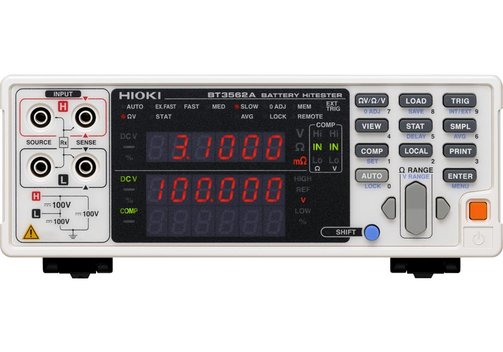

- BT3562A: Large cells for xEVs. Mid-sized packs of up to 100 V.

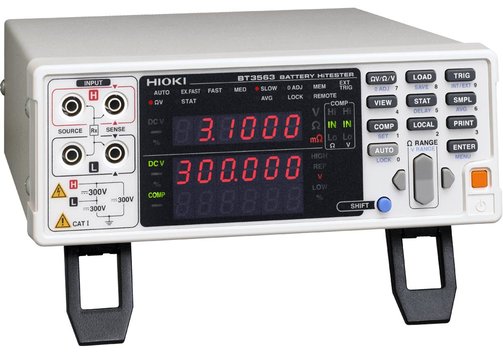

- BT3563A: Large packs for xEVs. Large packs of up to 300 V.

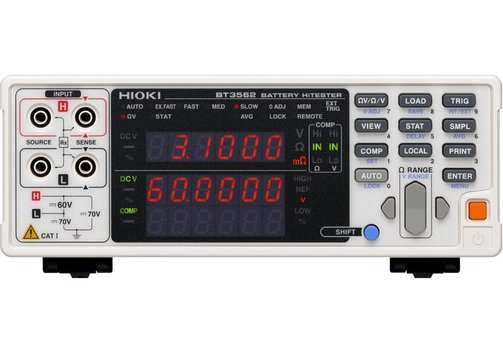

- BT3562-01 and BT3563-01: GPIB models.

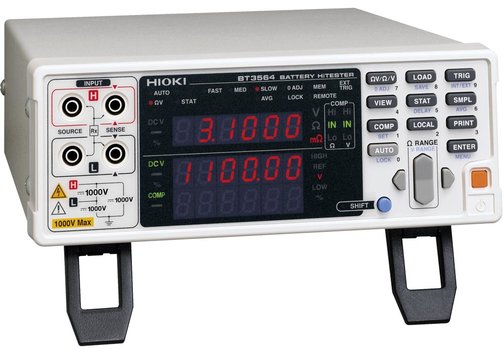

- BT3564: Extra large packs for xEV, ESS; 1000 V high voltage model.
Model Overview
| Model | 3561 | BT3561A | BT3562A | BT3563A | BT3562-01 | BT3563-01 | BT3564 |
| Measurement method | AC four-terminal method | ||||||
| Measurement frequency | 1 kHz ±0.2 Hz | ||||||
| Rated input voltage | ±22 VDC | ±60 VDC | ±100 VDC | ±300 VDC | ±70 VDC | ±300 VDC | ±1000 VDC |
| Max. rated voltage to earth | ±60 VDC | ±60 VDC | ±100 VDC | ±300 VDC | ±60 VDC | ±300 VDC | ±1000 VDC |
| Resistace measurement ranges | 300 mΩ, 3 Ω | 30 mΩ, 300 mΩ, 3 Ω, 30 Ω, 300 Ω, 3 kΩ | 3 mΩ, 30 mΩ, 300 mΩ, 3 Ω, 30 Ω, 300 Ω, 3 kΩ | ||||
| Voltage measurement ranges (DC) | 20 V | 6 V, 60 V | 6 V, 60 V, 100 V | 6 V, 60 V, 300 V | 6 V, 60 V | 6 V, 60 V, 300 V | 10 V, 100 V, 1000 V |
| Finest resolution | 0.01 mΩ | 1 µΩ and 10 µV | 0.1 µΩ and 10 µV | ||||
| Response time (typ.) | 10 ms | 700 ms | |||||
| Sampling period (EX.FAST, FAST, MEDIUM, SLOW) | Contact check, zero adjustment (±1000 counts), measurement current pulse output, comparator Hi/IN/Lo, statistical calculations (max. 30,000), delay, average (2 to 16 times), panel saving/loading (126), memory storage (400), LabVIEW driver (except BT3564) | ||||||

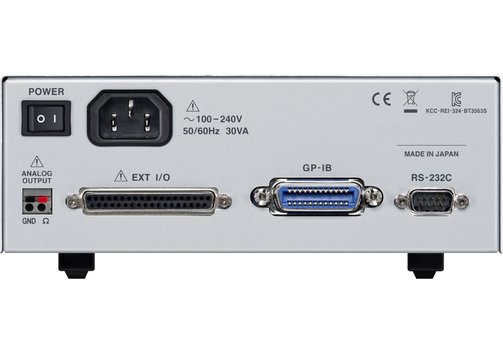

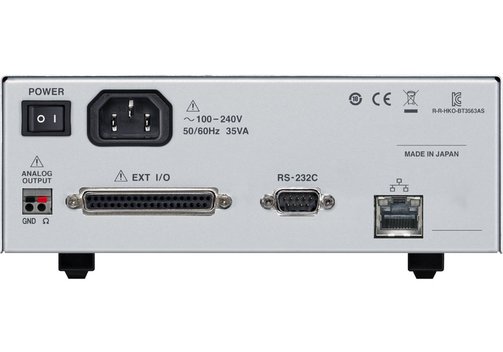

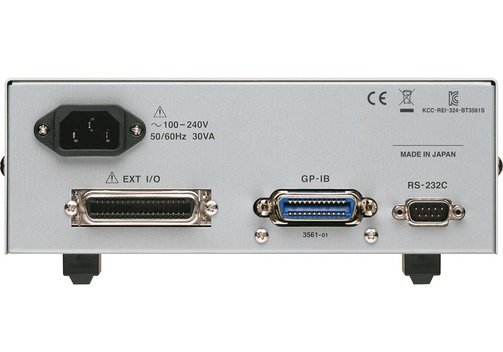

| Interfaces | RS232C, EXT I/O | LAN, RS232C, EXT I/O, AO | RS232C, GPIB, EXT I/O, AO | ||||
| Interface specs LAN: TCP/IP 10Base-T/100Base-TX). RS232C available as printer I/F, max. 38400 bps). EXT I/O: 37-pin handler interface. AO: Analog output (DC 0...3.1 V) | |||||||
| Display | Numeric display | ||||||
| Dimensions (mm) | 215 x 80 x 295; 2.4 kg, BT3564 2.6 kg | ||||||
