HIOKI 32xx Series Clamp-on Current Probes and Probe Power Supplies
- HIOKI 3269 and 3272:
- Power supply unit for current probe signals to memory recorders and oscilloscopes. For use with 3270 series (3273-50 - 3276) and CT6700/CT610 probes.

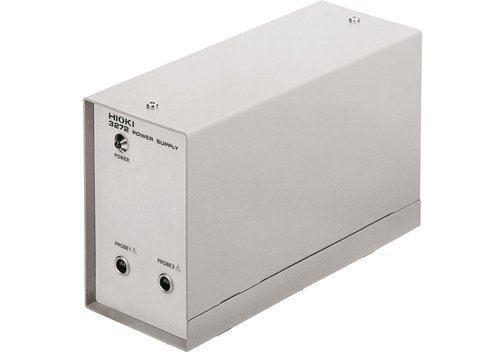

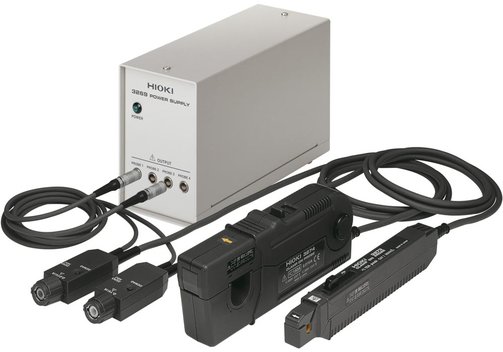

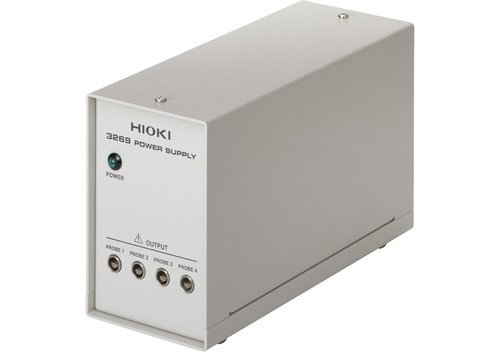

- The HIOKI 3269 is a 4 channel power supply for outputting signals measured by the probes.

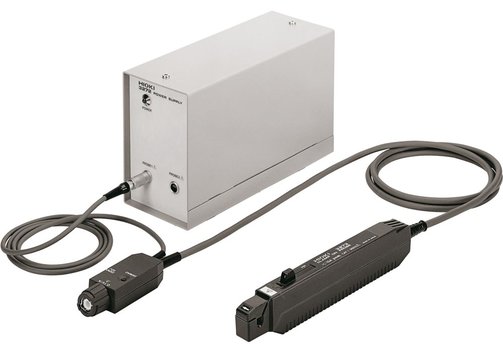

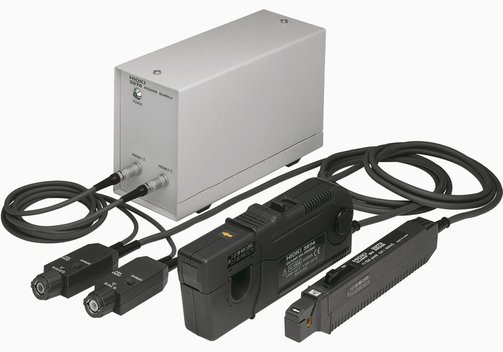

- The HIOKI 3272 is a single channel power supply for outputting signals measured by the probe.
- HIOKI 327x:
- Clamp-on probes for use with instruments with a high input impedance of 1 MΩ or higher.
- Bandwidth DC to 2, 10, 50, or 100 MHz.
- Max. 30, 150, or 500 ARMS continuous input.
Model Overview
| Model | Type | Description | ||
| 3269 | Sensor/probe power supply | Drives two CT6710 series sensors or four CT6700/3270 series sensors, 100...240 VAC | ||
| 3272 | Sensor/probe power supply | Drives one CT6700/3270 series sensor, 220/240 VAC | ||

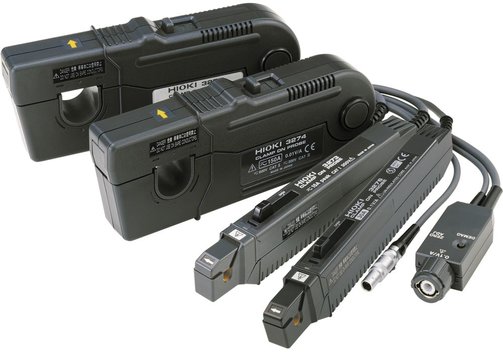

| Model | Type | Frequency characteristics/bandwidth | Current rating | Max. core diameter |

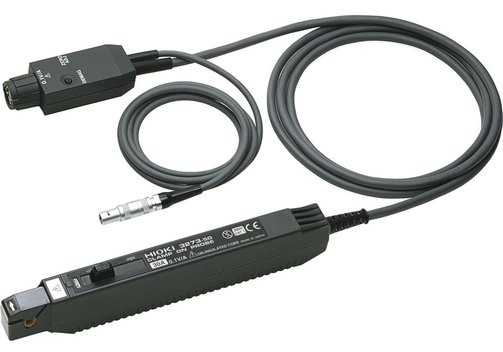

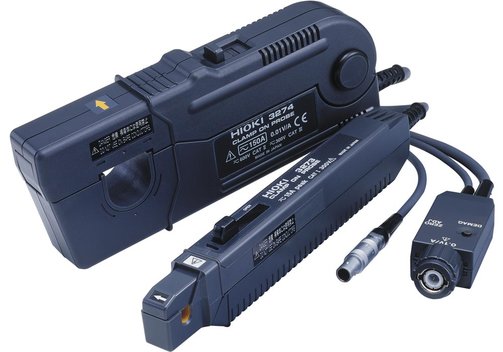

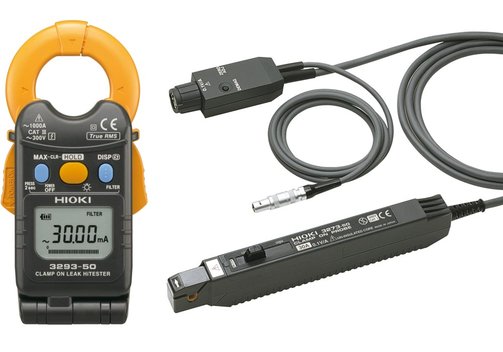

| 3273-50 | Clamp-on probe | DC...50 MHz (-3 dB) | max. 30 ARMS | 5 mm |
| 3274 | Clamp-on probe | DC...10 MHz (-3 dB) | max. 150 ARMS | 20 mm |

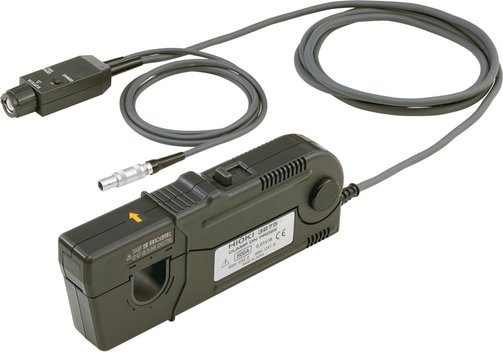

| 3275 | Clamp-on probe | DC...2 MHz (-3 dB) | max. 500 ARMS | 20 mm |

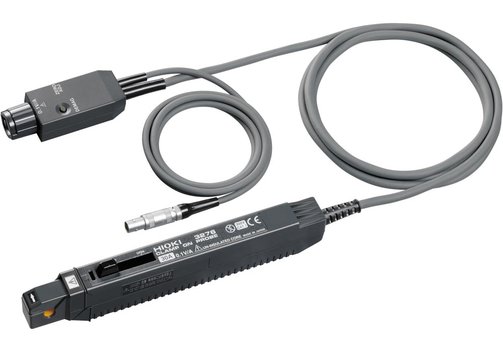

| 3276 | Clamp-on probe | DC...100 MHz (-3 dB) | max. 30 ARMS | 5 mm |
