HIKMICRO HM-TD2C68E-25/Q R&D Boxkamera

Benefits of the R&D Boxkamer with 640 x 512 Resolution

• Real-time object temperature measurement with high accuracy, small size, low power consumption and easy integration.

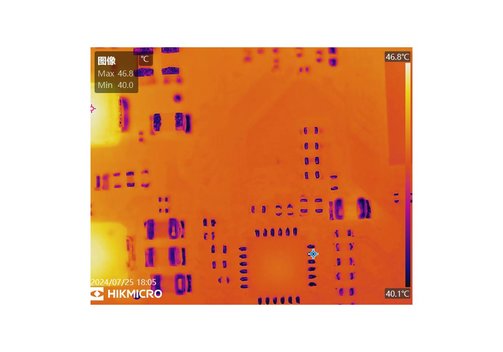

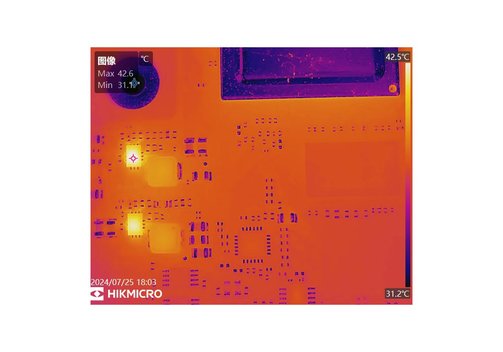

• Dual-mode lens, switch between macro and normal mode with just a single turn.
• 640 x 512 resolution.

HIKMICRO HM-TD2C68E-25/Q R&D Boxkamera

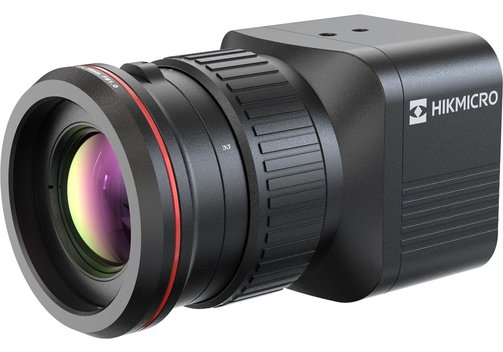

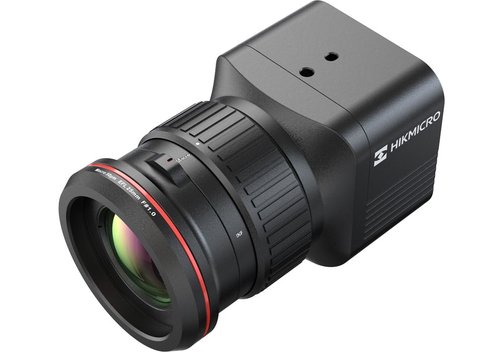

The HIKMICRO HM-TD2C68E-25/Q R&D Boxkamera is a thermographic network box camera with a small size, low power consumption, and simple integration. It is used for real-time high-accuracy object temperature measurements in researxh and design. The camera offers a resolution of 640 x 512. The dual-mode lens can switch between macro and normal mode with just a single turn.

• High sensitivity sensor with 640 x 512 resolution.
• Object temperature range: -20...+150°C (max. ±1°C, ±1%); 0...+650°C (max. ±2°C, ±2%).
• Temperature measurement at user-defined points, lines, and areas.
• Thermal image frame rate: 50 fps.
• A highlighted cross at the max. temperature in the thermal image.
• Color alarm (isotherm) available for "above", "between", and "below" object temperatures.
• Support mirroring, digital zoom (2x,4x,8x).

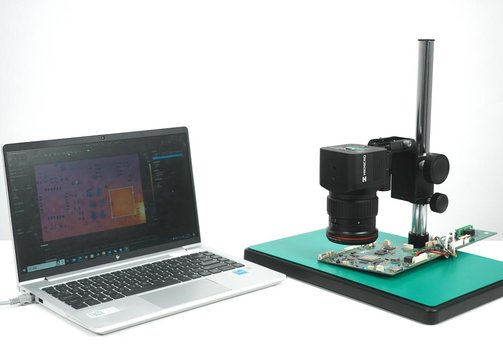

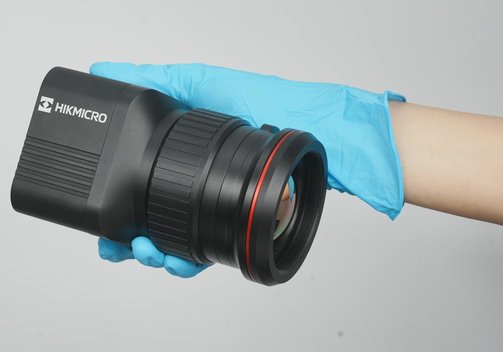

• Equipped with a standard ¼-inch thread, the HIKMICRO R&D box camera can easily be used in various installation scenarios (tripod, etc.). It is small and lightweight, can be held with one hand and is super easy to install.
