HIKMICRO G-Series Handheld Thermal Cameras

Benefits of the G31, G41(H), G61(H) Thermo/Visual Cameras -20...+650°C/+2000°C

• High-performance handheld thermal cameras with high sensitivity (NETD <35 mK).
• Thermal resolution up to 640x480 (307,200 pixels).
• 8 MP visual camera, 4.3"/10.9 cm touch screen and HDMI port.

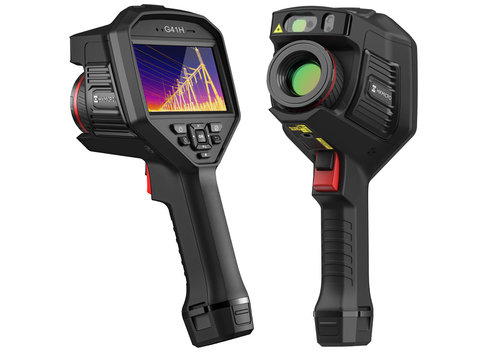

HIKMICRO G-Series Handheld Thermal Cameras

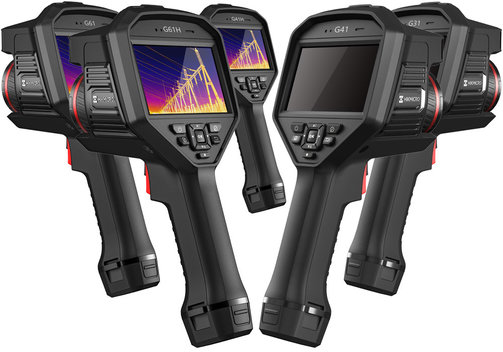

Series G31, G41H, G61H IR Cameras with Visual 8-MP Camera

The HIKMICRO G-series are high-performance handheld thermal cameras. They are the ideal solution for industrial, predictive, oil and gas, and utility maintenance inspections. They offer a a high sensitivity (NETD <35 mK). The G-series has a high resolution of 640x480 (G61, G61H), 480x360 (G41, G41H), or 384x288 (G31), using a HIKMICRO VOx detector. Temperature calibration is up to 2000°C (G41H, G61H), or 650°C (G31, G41, G61). Moreover, the cameras are equipped with advanced features, such as GPS and compass annotations, continuous digital zoom, and 1-tap level and span. Connect HIKMICRO Viewer App or HIKMICRO Analyzer software to transfer, analyze, and share pictures, and generate reports for free.

• Thermal resolution:

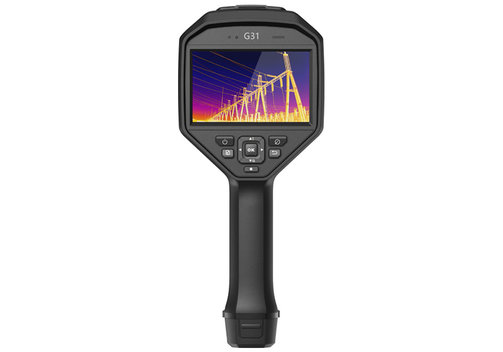

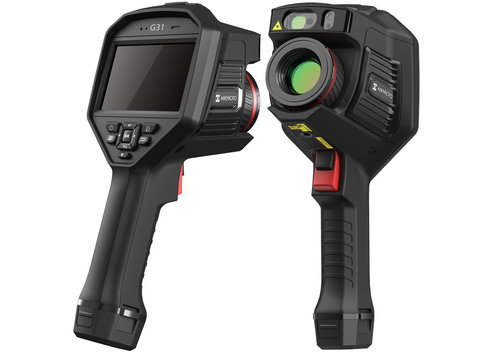

  G31: 384x288 (110,592 pixels),

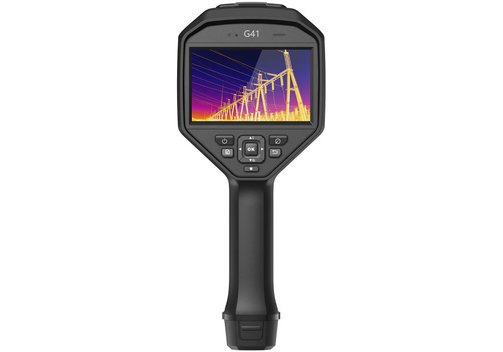

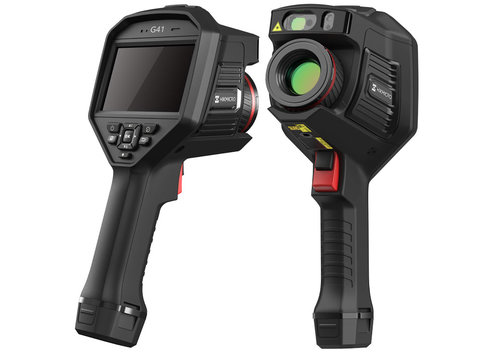

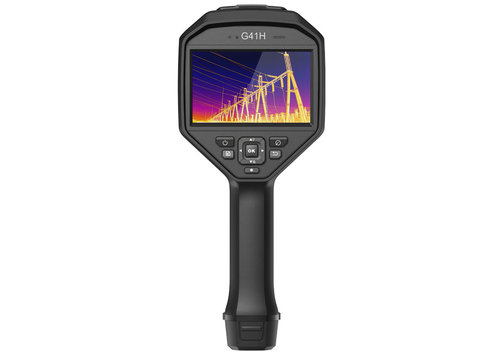

  G41, G41H: 480x360 (172,800 pixels),

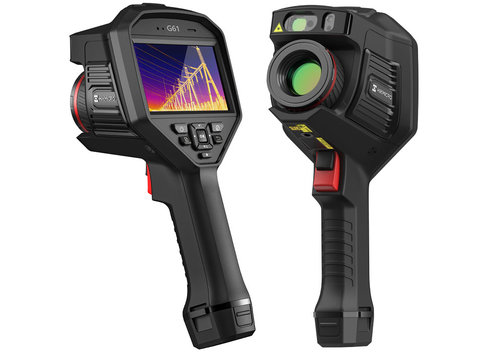

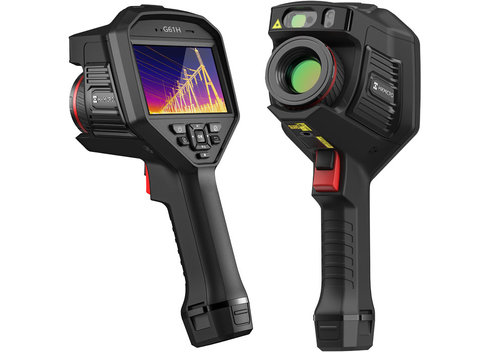

  G61, G61H: 640x480 (307,200 pixels).
• NETD <35 mK (at 25°C, F#=1.0).
• Temperature measurement range:
  G31, G41, G61: -20...+650°C (-4...+1202°F),
  G41H, G61H: -20...+2000°C (-4...+3632°F).
• Accuracy: Max. (±2°C/3.6°F, ±,2%).
• 4.3"/10.9 cm 800x480 LCD touch screen and HDMI port.
• 1.x to 8.x continuous digital zoom.
• Manual, automatic, and 1-tap level and span.
• GPS and compass annotation functions.
• Long-distance laser light supplement for thermography targets.
• LED light supplement provides light in dark scenarios.
