Benefits of the B2x Series IR Cameras up to -20...+550°C
- 256x192 resolution thermal detector and B20 with additional 2 MP optical detector.
- -20...+550°C measurement range with high accuracy ±2°C/3.6°F, ±2%.
- SuperIR technology on captured images and live view.
HIKMICRO B20/B21L Series Handheld Thermal Camera

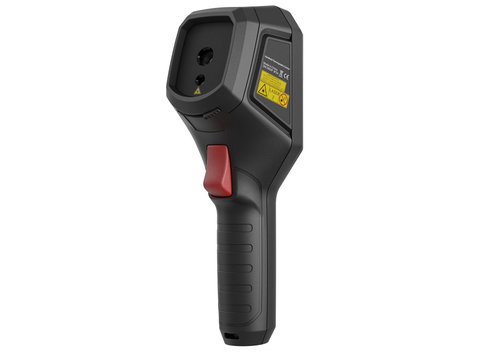

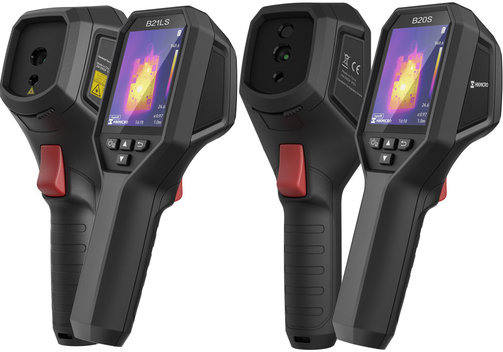

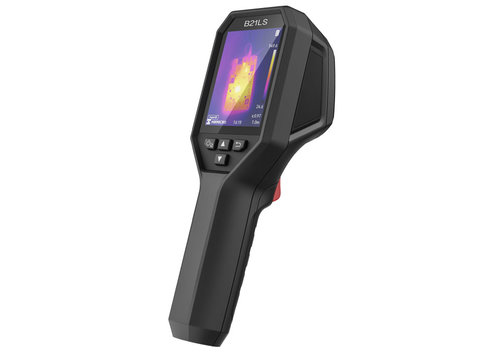

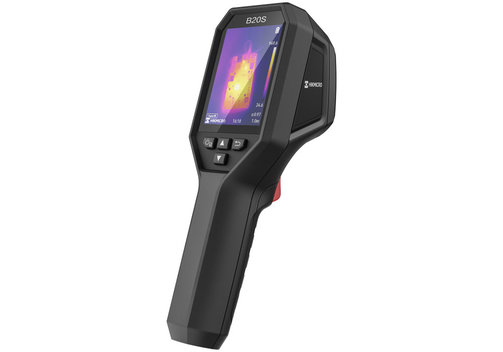

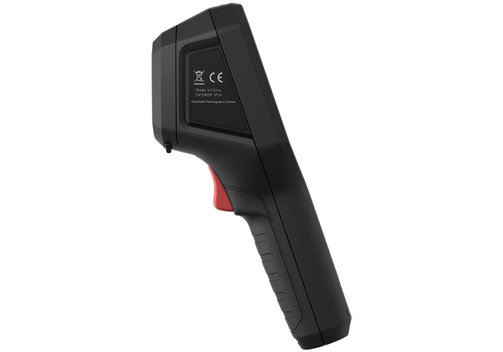

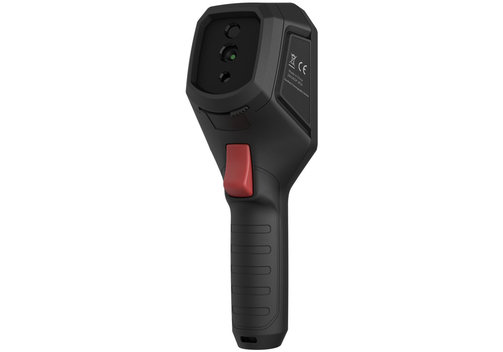

The HIKMICRO B20 and B21L are industrial handheld IR/thermal cameras. They are equipped with a 256x192 resolution thermal detector and a 2 MP optical detector (B20 only, not for B21L). The temperature measruement range is from -20...+550°C (-4...+1022°F). The devices are mainly applied to various industries, such as building, HVAC, and auto industry, etc.
- IR resolution 256x192 (49,152 pixels).
- B20 additional 2 MP visual resolution.
- NETD <40 mK (at 25°C, F#=1.0).
- Temperature measurement range -20...+550°C (-4...+1022°F).
- Accuracy max. (±2°C/3.6°F, ±2%), for ambient temperature +15...+35°C (+59...+95°C) and object temperature above 0°C (32°F).
- Measurement presets: Center spot, hot spot, cold spot, user preset point.
- 25 Hz image frequency.
- 3.2"/8.1 cm 480x640 resolution LCD screen.
- Up to 6 hours continuous running.
- Support SuperIR image enhancement technology.
Model Overview
| Model | B21L | B20 |
| Part number | HM-TP52-3AQF/W-B21L | HM-TP52-3AQF/W-B20 |
| IR resolution | 256x192 (49,152 pixels); SuperIR on captured images and live view | |
| NETD (at 25°C, F#=1.0) | NETD <40 mK | |
| Image frequency | 25 MHz | |
| Field of view (FOV) | 37.2°x50° | |
| Focus | Focus free | |
| Object temperature range and accuracy | -20...+550°C (-4...+1022°F) | |
| Color palettes | White hot, black hot, rainbow, ironbow, red hot, B20 only: Fusion | |
| Measurement tools | Center spot, hot spot, cold spot, user-definable: 3 spots | |
| Visual camera | - | 2 MP visible camera |
| Display | 3.2"/8.1 cm LCD screen, 480x640 resolution | |
| Storage media | Built-in 16 GB for approx. 35,000 images | |
| Interfaces | Wi-Fi 802.11 b/g/n (2.4 GHz), USB Type-C | |
| Battery | Rechargeable Li-ion battery | |
| Dimensions (mm) | 222 x 74 x 124; approx. 380 g, protection level IP54 | |
Accessories Overview
| Type | Model | Description | |
| Lens | HM-B201-MACRO | Macro lens, 0.12x, 30 mm working distance, 100 µm spot size, 500 µm min. measurement size, -20...+150°C, ±3°C/±3% | for B series |
| Pouch | HM-B01-POUCH | Soft pouch with adjustable shoulder strap | for E and B series |
| Accessory | HM-2925ZJ-TM01-BRACKET | Desktop tripod mounting bracket | |
