Benefits of the AI56 and AI76 "Sound-Cameras" with 64/136 Microphones

  • Acoustic imaging cameras for gas leak and partial discharge detection.
  • 64 or 136 microphones, acoustic resolution 800x480.
  • Touch screen, HDMI, Wi-Fi, Bluetooth, and USB.

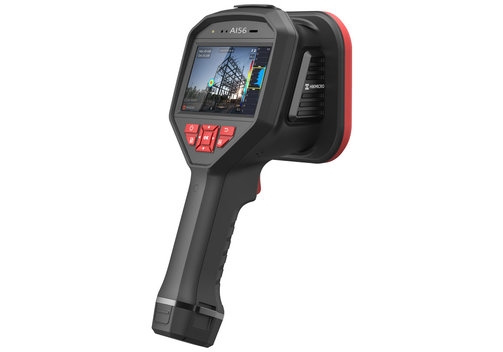

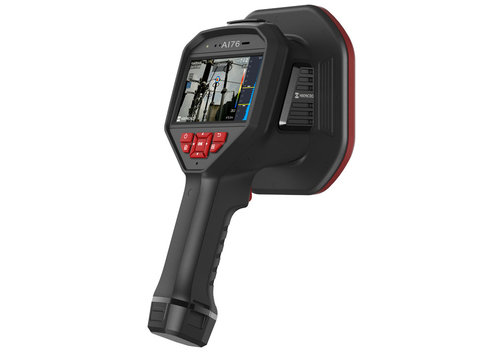

HIKMICRO AI Series Acoustic Imaging Cameras

The HIKMICRO AI series are acoustic imaging cameras for gas leak detection and partial discharge detection. With 136 (AI76) or 64 (AI56) low-noise MEMS microphones and an adjustable bandwidth range from 0 to 65 or 96 kHz, the AI series provides an easy and effective way to locate pressurized air leaks in industrial environments or detect partial discharge in electric systems. The wide 4.3"/10.9 cm LCD touch screen alowes the presentation of the results on top of a digital picture to quickly find the source of the problems. Analyzer Acoustic software can analyze captured images captured and export reports.

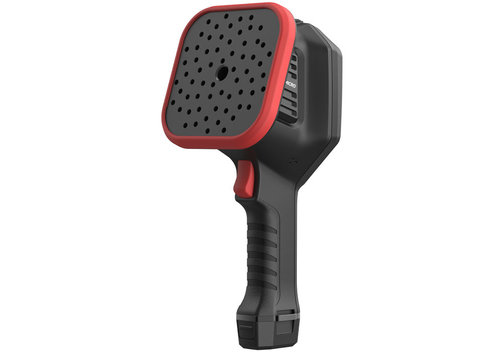

  • 64 or 136 low-noise MEMS microphones, real-time sound source localization.
  • Real-time estimated leak rate, leak cost, and leak level for gas leak detection.
  • Partial discharge detection can identify corona, floating, surface, and particle discharges.
  • Analyzer acoustic software for analyzing images and export reports.

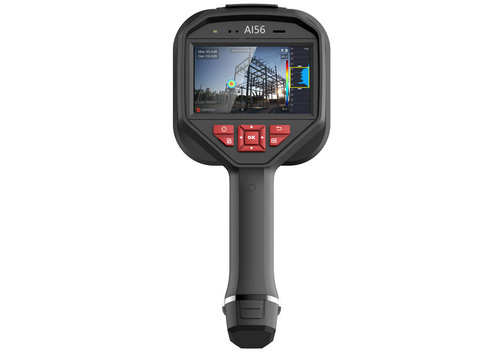

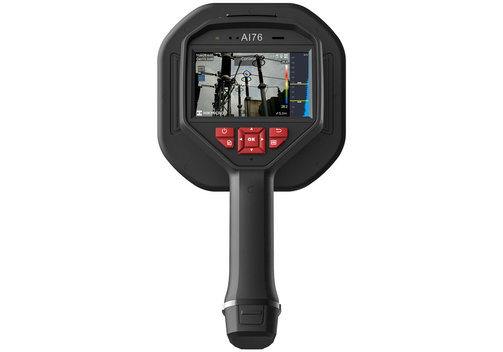

  • 800x480 resolution, 4.3"/10.9 cm LCD touch screen.
  • Supports 8 acoustic palettes.

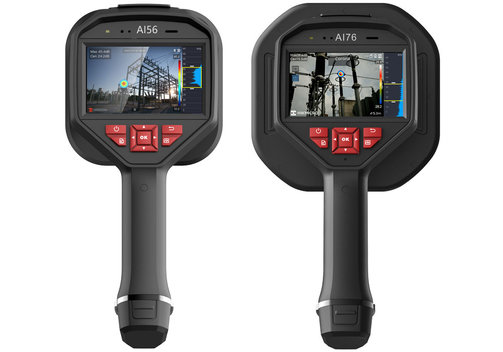

Model Overview

ModelAI56AI76
Part numberHM-AP56-W/W-AI56HM-AP5DN-W/W-AI76
Number of MEMS microphones64136
Acoustic resolution800x480800x480
Bandwidth2...65 kHz0...96 kHz, adjustable range MEMS sampling frequency: 192 kHz
Distance0.3...100 m0.3...150 m
Acoustic image paletteWhite black, black white, rainbow, fusion, ironbow, red black, rain, blue red
Camera FOV50.2°x35.4°
Discharge detectionAutomatic detection 50/60 Hz
Discharge typeCorona discharge, particle discharge, floating discharge, surface discharge
Storage mediaMicro SD card (64 GB included), approx. 18,000 images
InterfacesWi-Fi (802.11 b/g/n, 2.4 GHz and 5 GHz), Bluetooth 4.1, USB Type-C
Display4.3"/10.9 cm LCD touch screen; HDMI-D port
BatteryDismountable and rechargeable Li-ion battery
Dimension (mm)310 x 165 x 117; approx. 1200 g; IP54 protection level
