HIKMICRO AD21 Acoustic Leak Detector
Description
Files/Downloads
Benefits of the AD21 1024x600 Acoustic Leak Detector
- Acoustic leak detector for technicians and plumbers to find leaks in plumbing, water service, etc.
- Frequency range 150 to 7500 Hz.
- 7"/17.8 cm LCD touch screen, USB interface.

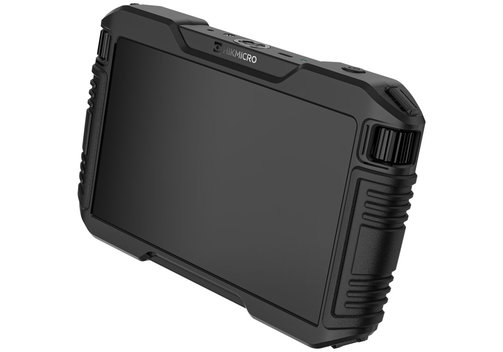

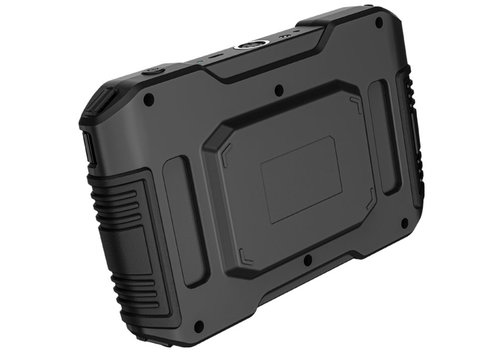

HIKMICRO AD21 Acoustic Leak Detector

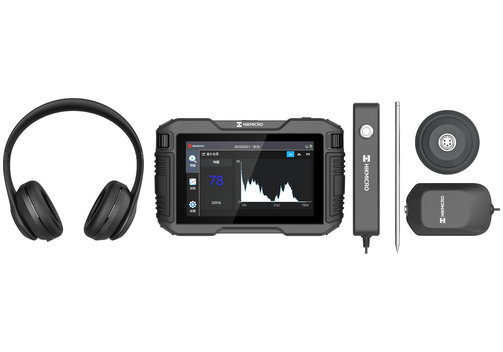

The HIKMICRO AD21 is an acoustic leak detector, designed for technicians and plumbers to find leaks in plumbing, water service, and residential or commercial properties. The device has four ranges of selectable digital bandpass filters, and the amplification is up to 80 dB. The filtration and amplification of the sound frequencies can help you locate the leakage points accurately. It can be widely used with the handheld sensor and pick-up sensor correspondingly. Furthermore, it can detect ignored leaks, reducing resource waste and property loss.
- Acoustic leak detector.
- Supports four ranges of selectable digital bandpass filters
- Frequency range 150 to 7500 Hz.
- 1024x600 resolution.
- 7"/17.8 cm LCD touch screen.
- Up to 11 hours continuous running.
Model Overview
| Model | AD21 |
| Part number | HM-AP21-AD21 |
| Frequency range | 150...7500 Hz |
| Signal noise ratio | 60 dB |
| Sensitivity | -29 dB, 70 mv/g |

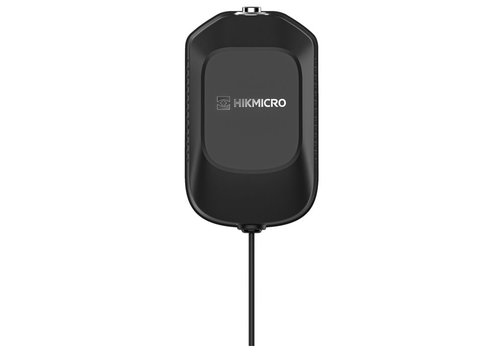

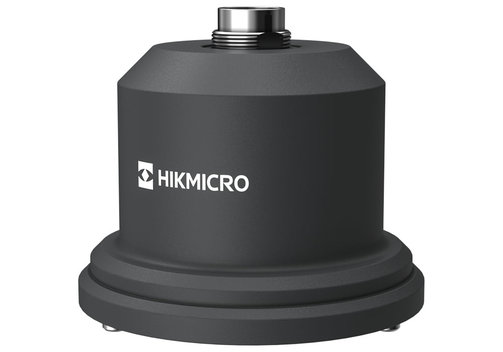

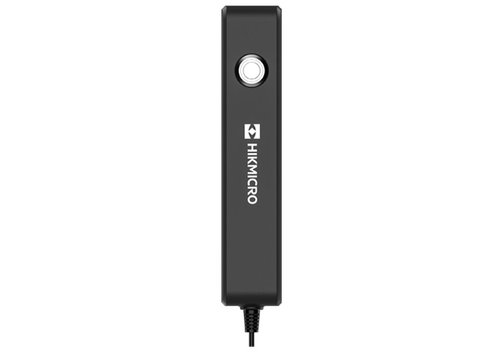

| Sensor | Hand held sensor, pick-up sensor |
| Band pass filters | Indoor low frequency 150...3000 Hz; indoor mid-frequency 3000...6000 Hz; indoor high frequency 4500...7500 Hz; indoor all-pass 150...7500 Hz |
| Amplification | 80 dB |

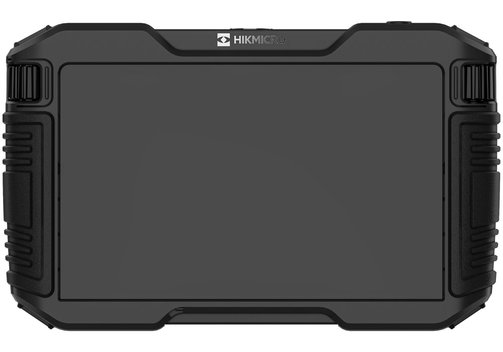

| Display | 1024x600 resolution, 7"/17.8 cm LCD touch screen |
| Storage media | Built-in EMMC (4 GB); audio storage capacity approx. 20 h, audio file format .wav |
| Interfaces | USB 2.0, USB Type-C |
| Battery | Rechargeable Li-ion battery |
| Protection Level | Main Unit: IP40; hand held sensor:IP54; pick-up sensor: IP66 |
