FOTRIC H Series High-Performance Acoustic Imaging Cameras
H Series for Real-Time Leak Detection and Partial Discharge Diagnosis On-Device
- Extraordinary sensitivity and detectability.
- Efficient inspection in high-definition; FOV: 66°x52°.
- On-device analysis: Leak detection (compressed air, gas) and partial discharge diagnosis.
FOTRIC H Series High-Performance Acoustic Imaging Cameras

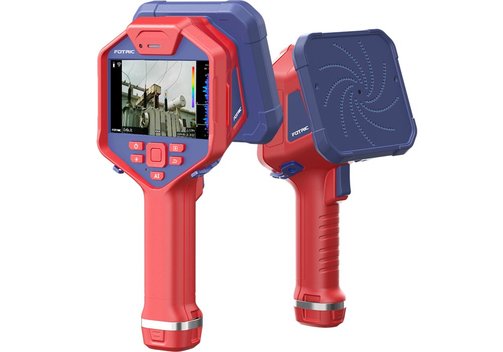

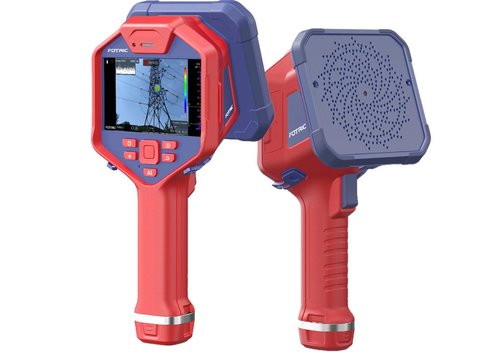

The FOTRIC H series are acoustic imaging cameras with exceptional sensitivity thanks to their array of up to 162 MEMS (micro-electro-mechanical systems) digital microphones. The cameras detect even the faintest acoustic signals, identifying small gas leaks or minor electrical discharges that could otherwise go unnoticed until they escalate into major issues. This unique combination makes the H series devices essential tools for professionals in industries where equipment reliability is critical. By integrating these functions, the H-Series helps users manage assets more efficiently, reducing downtime and preventing costly failures.

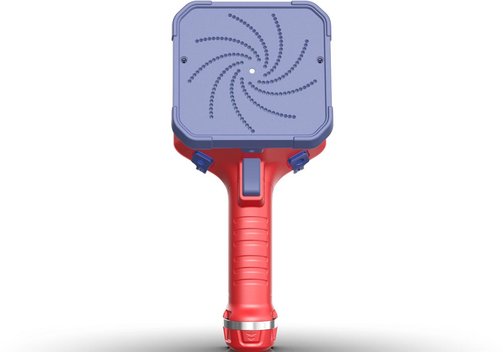

- 112 or 162 MEMS digital microphones in 6.6"/16,8 cm spiral array layout.
- Acoustic image field of view (FOV): 66°x52°.
- Industrial digital camera with 13 Megapixels.
- Capture fleeting signals with acoustic signal linger mode (T-FFTD).
- Versatile in-device analysis features for different applications:

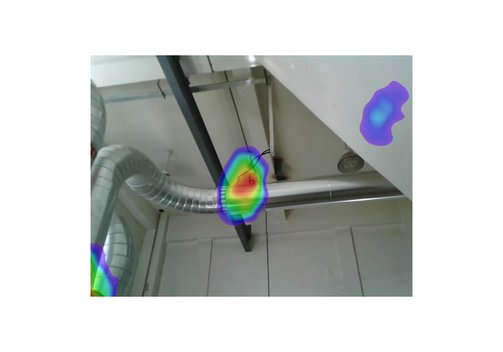

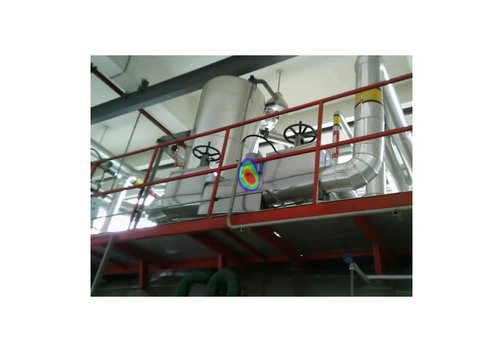

Real-time leak detection (compressed air, gas).
Leakage cost evaluation.

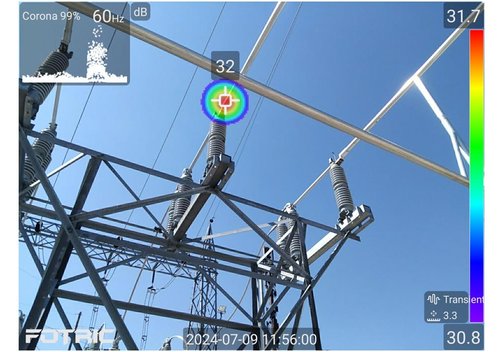

Partial discharge diagnosis (substation applications, panels applications). - Acoustic focus mode filters out background noise and interference, allowing the camera to zero in on a specific area of interest.
- Camera can create a Wi-Fi access point and provide data via FTP.
- On-device analysis or with PC software AnalyzIR.
Model Overview

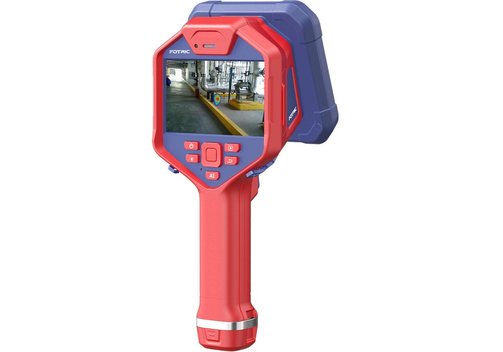

| Model | H6 | H4 |
| Microphone channels | 162 MEMS digital microphones | 112 MEMS digital microphones |
| Acoustic image FOV | 66°x52° | |
| Acoustic sampling rate | 200 kHz | |
| Acoustic refresh rate | 25 Hz | |
| Working distance | 0.3...200 m | |
| Frequency range | 2...100 kHz | |
| Measurement spot/area | Spot 2, area 2 | |
| Detection mode | LQ mode: Displays the leakage level; PD mode: Displays a PRPD diagram, adapted to different AC frequencies (50/60 Hz) | |
| Analysis | On-device analysis, analysis software AnalyzIR | |
| Leak evaluation | Automatic identification of leakage points, automatic evaluation of leakage and annual energy costs | |
| Partial discharge diagnostice | Automatic diagnosis of discharge types such as surface, floating and tip (corona) discharges | |
| Display screen | 5"/12.7 cm, 1280x720 pixels, LCD touchscreen display with Gorilla Anti-Explosion screen | |
| Image modes | Single source: Overlay the acoustic image of the strongest sound pressure area on the digital camera image; multi source: Overlay the acoustic image of multiple strong sound pressure area on the digital camera image; hologram mode: Adjust the sound pressure threshold to overlay the acoustic image of the area above | |
| Palettes | Red-Blue, Iron, Grey; supports transparency adjustment; gray-scale background: Displayed as a digital image in black and white grey scale | |
| Digital zoom | 1...10x, continuous | |
| Digital camera | 13 megapixel | |
| Storage | Up to 1 TB SD card, hot-swappable; supported file formats: JPEG, HP4 | |
| Interfaces | Wi-Fi (2.4 GHz and 5 GHz channel, support 802.11a/b/g/n/ac; device can create own hotspot, data access via FTP), Bluetooth, HDMI | |
| Additional features | QR code and bar code scanning, voice and text annotations, real-time distance to sound source measurement, Bluetooth headset for real-time monitoring supported, GPS, compass, LED flash lamp and torch | |
| Power | 7.4 V, 3500 mAh rechargeable lithium battery, field replaceable; charging method: Charging dock and USB direct charging; external power source supported using 12 VDC to power the device | |
| Housing | 1.3 kg incl. battery; IP54 | |
Included: FOTRIC H4 or H6 acoustic imaging camera, 2 pieces of rechargeable lithium battery, charging dock, USB to USB-C cable, Micro HDIM to HDMI cable, documents (certificate of quality, certificate of calibration, warranty card, packing list), quick start manual, 128G SD card, SD card reader, power adaptor, softbag, hard carrying case.
