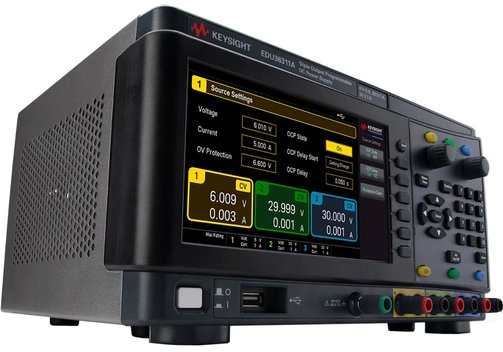

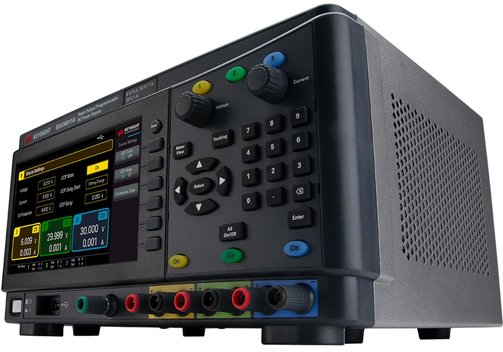

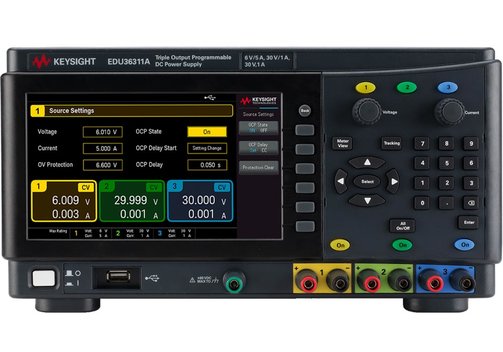

Keysight EDU 36311A Triple-output DC Power Supply, 90W
Description
Accessories
Files/Downloads
Benefits of the Keysight EDU36311A DC Lab Power Supply
- Triple-output power supply up to 30 V.
- Education product with industry-grade performance.
- PathWave BenchVue Power Supply App and "Keysight Care" included.
Keysight EDU 36311A Triple-output DC Power Supply
The EDU36311A is a triple-output DC power supply from the Keysight EDU series. It offers 3 independent output channels with low ripple and noise and ranges of 6 V/5 A, 30 V/1 A, and 30 V/1 A. The EDU series offers industry-grade technology and performance as well as modern user interfaces at an affordable price. The devices are a perfect solution for electronics and electrical teaching labs (professors, lab manager) as well as general electronics with very tight budgets.
- Triple-output DC power supply: Three independent power supplies in one box.
- Output power: 6 V/5 A, 30 V/1 A, and 30 V/1 A.
- Clean, reliable power with low output ripple and noise
- Excellent programming/readback accuracy.
- Excellent line/load regulation.
- Over voltage, over current, and over temperature protection (OVP, OCP, OTP).
- Low acoustic noise.
- Color coded channels.
- Individual knobs for voltage and current.
- 7"/17.8 cm color display.
- Standard USB and Ethernet/LAN.
- Smart remote connectivity: Standalone PathWave BenchVue Power Supply App included.
Model Overview
| Model | EDU36311A | ||
| Channel | 1 | 2 | 3 |
| DC output rating (0 to 40ºC) | 0 to 6 V | 0 to 30 V | 0 to 30 V |
| 0 to 5 A | 0 to 1 A | 0 to 1 A | |
| Load regulation ±(% of output + offset | Voltage: <0.01% + 2 mV; current: <0.2% + 10 mA | ||
| Line regulation ±(% of output + offset | Voltage: <0.01% + 2 mV; current: <0.2% + 10 mA | ||
| Programming accuracy ±(% of output + offset)* | Voltage: 0.1% + 5 mV, 0.05% + 10 mV; current: 0.1% + 10 mA, 0.2% +5 mA | ||
| Readback accuracy ±(% of output + offset)* | Voltage: 0.1% +5 mV, 0.05% + 10 mV; current: 0.1% +10 mA, 0.2% + 5 mA | ||
| Load transient recovery time | Voltage setting band: 15 mV, time: <50 µs | ||
| Display | 7"/17.8 cm color display | ||
| Interfaces | USB, Ethernet/LAN | ||
| Software | PathWave BenchVue power supply app incl. | ||
| Optional: Lab equipment management and remote learning software solution – PathWave Lab Manager and Remote Learning | |||
| Support | Tech support and troubleshooting access – KeysightCare Technical Support included | ||
* 12 months (23ºC ±5ºC).
