Digilent ECON Series Low-cost USB Data Acquisition Modules
Description
Files/Downloads
Benefits of the DT9812-10V, DT9816, DT9817-R Multifunctional USB DAQ Modules for Windows/PC
- Multifunctional USB DAQ modules with analog inputs, outputs, digital-I/O, counter.
- 6 or 8 analog inputs, models with 2 analog outputs.
- Models with isolated digital-I/O.
Digilent ECON Series Low-cost USB Data Acquisition Modules

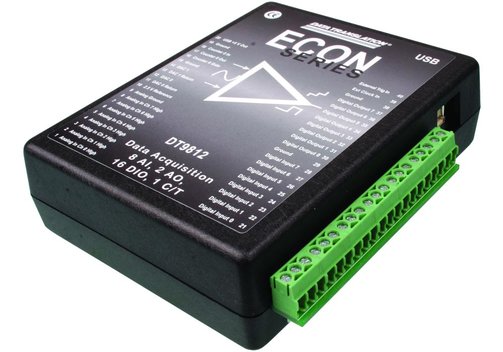

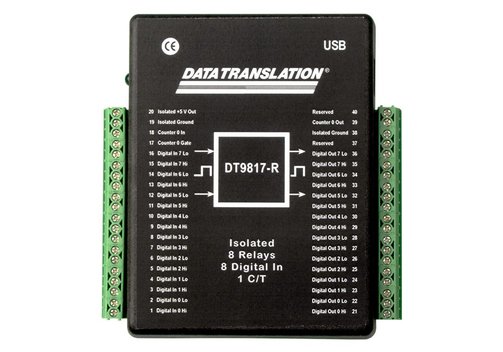

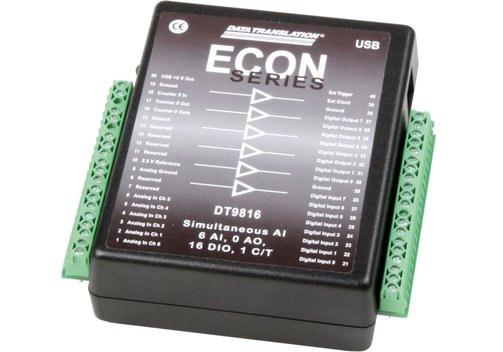

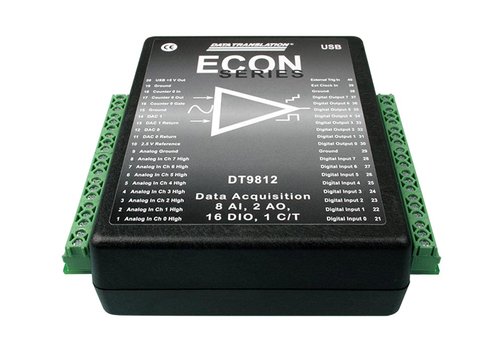

Models DT9812-10V (6069-410-131), DT9816 (6069-410-116), DT9817-R (6069-410-134) USB DAQ Modules
The Digilent ECON series are multifunction DAQ modules with USB 2.0 connectivity to a Windows PC. The modules offer analog inputs with 12 or 16 bit resolution. The DT9812-10V also has two analog output channels. All models have 8 digital inputs and 8 digital outputs as well as 1 counter/timer (other versions not listet in the shop on request).
- 6 or 8 single-ended analog inputs.
12 or 16 bit A/D conversion with up to 50 kS/s sampe rate.
I/O ranges up to ±10 V. - Model with 2 analog outputs.
12 bit D/A conversion with 50 kS/s update rate.
Output range ±10 V. - 1 counter/timer 32 bit and 8 digital inputs/8 digital outputs.
Model with isolated, high drive digital-I/O. - PC connectivity via USB 2.0, USB-powered.
- PC-Software included for Windows: QuickDAQ, DAQ Adaptor for MATLAB, LV-Link (for use with LabVIEW).
Model Overview
| Model, ordering code | Analog inputs | Resolution | I/O range | Sample rate | Analog outputs | Resolution | Update rate | Output range | Digital-I/O | Counter/Timer | |
| DT9812-10V | 6069-410-131 | 8 single-ended | 12 bit | ±10 V, ±5 V, ±2.5 V, ±1.25 V | 50 kS/s aggregate | 2 | 12 bit | 50 kS/s | ±10 V | 8 in/8 out | 1 (32 bit) |
| DT9816 | 6069-410-116 | 6 single-ended | 16 bit | ±10 V or ±5 V | 50 kS/s per channel | - | - | - | - | 8 in/8 out | 1 32 bit) |
| DT9817-R | 6069-410-134 | - | - | - | - | - | - | - | - | 8 in/8 out, isolated, high drive | 1 (32 bit) |
Included: Module DT 9812-10V, 9816, or 9817-R, software and user manual via download.
