Benefits of the eX-9067 with 7 Type A EM Relays

  • 7 type A relays, up to 0.5 A/120 VAC or 1 A/24 VDV.
  • Pluggable screw terminal connectors.
  • Compact modules, DIN-rail/wall mountable.

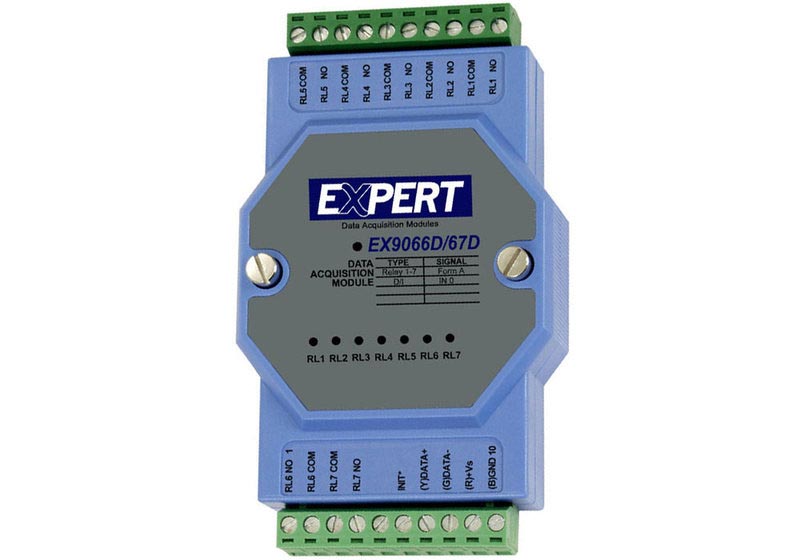

eX-9067 7 Relays (Type A), for RS485

The eX-9067 industrial modules are the ideal solution for decentral/distributed, PC-controlled switching of signals. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485, MODbus-RTU or Modbus/TCP, TCP/IP for decentral/remote networking applications.
  • 7 type A relays, max. 0.5 A/120 VAC, 1.0 A/24 VDC.

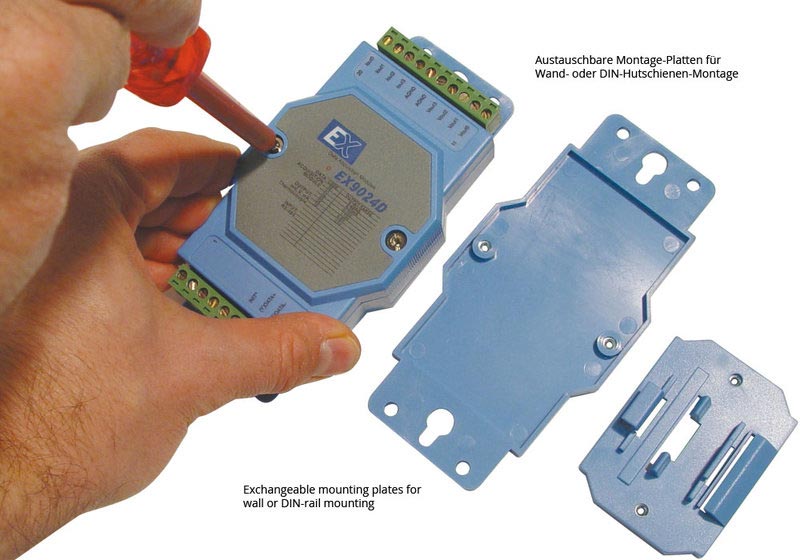

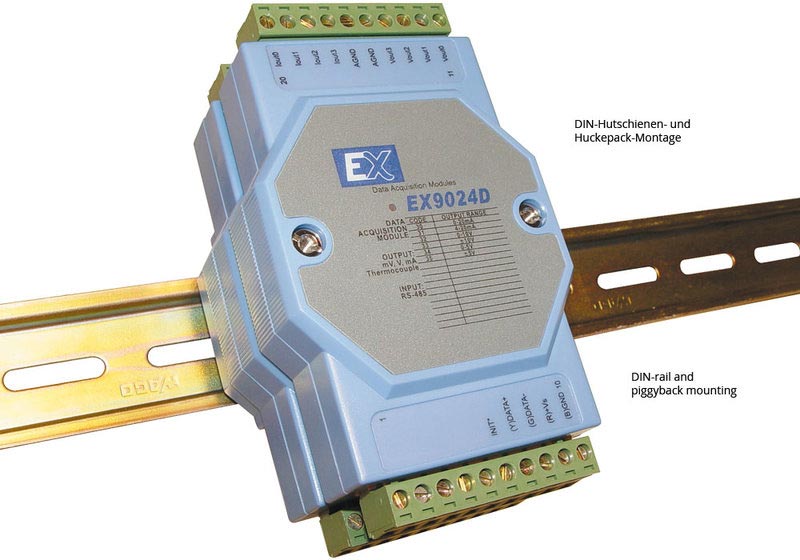

  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

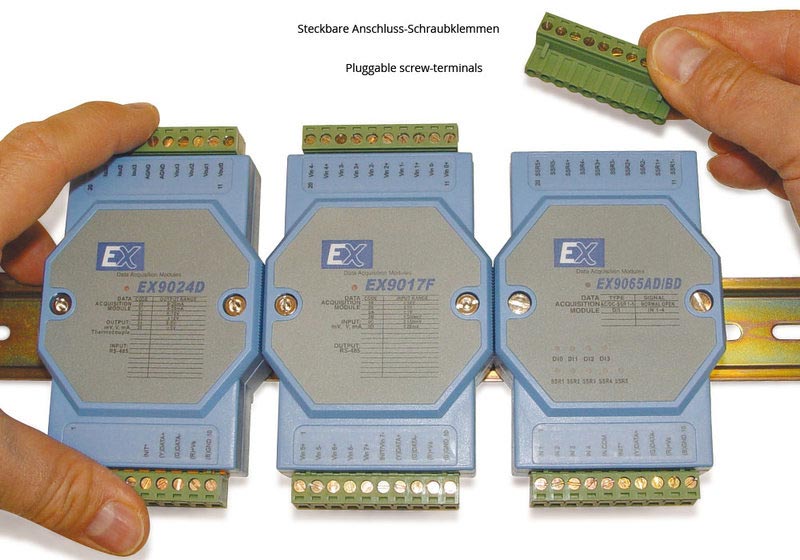

  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.

Model Overview

ModeleX-9067
Available versionseX-9067D
Relay outputs7 relays, type A
On/off response time5 ms/2 ms
Max. load0.5 A/120 VAC, 1.0 A/24 VDC
Break down voltage1500 V
Power consumption1.7 W
LED indicator per channel
CommunicationRS485, 300...115200 bps

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
