eX-9055 8 Digital Inputs, 8 Digital Outputs, for RS485
Scaled Prices
starting €
208,25
including VAT
plus shipping
close
Please fill in all fields.
Question Type
Your E-mail Adress
My Question:
Please validate that you are not a robot.
Description
Accessories
Files/Downloads
Benefits of the eX-9055 with 8 Digital Inputs, 8 Digital Outputs, with/without Isolation
- 8 digital inputs and 8 digital outputs.
- Model with isolation.
- Models with RS485 or Ethernet/RJ46.

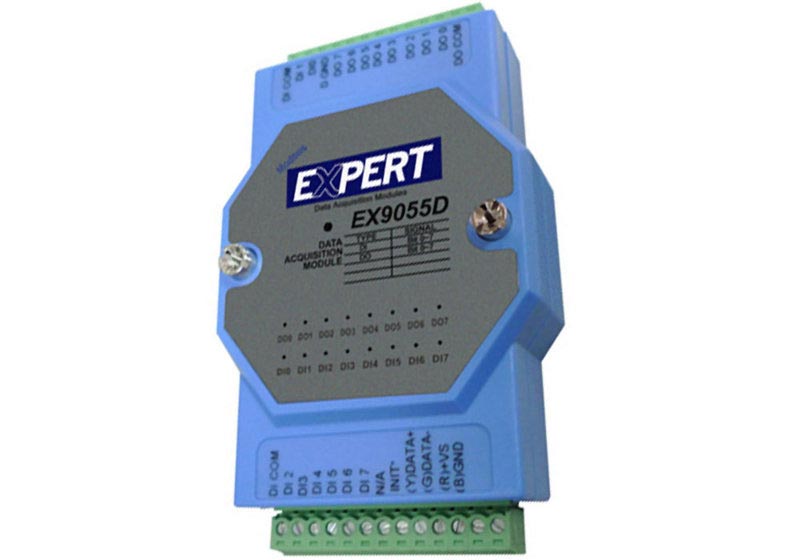

eX-9055 8 Digital Inputs, 8 Digital Outputs, for RS485
The eX-9055 industrial modules are the ideal solution for decentral/distributed, PC-controlled acquisition or output of digital signals. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.
- Industrial modules with RS485, MODbus-RTU or Modbus/TCP, TCP/IP for decentral/remote networking applications.
- 8 digital inputs, 8 digital outputs, various configurations.

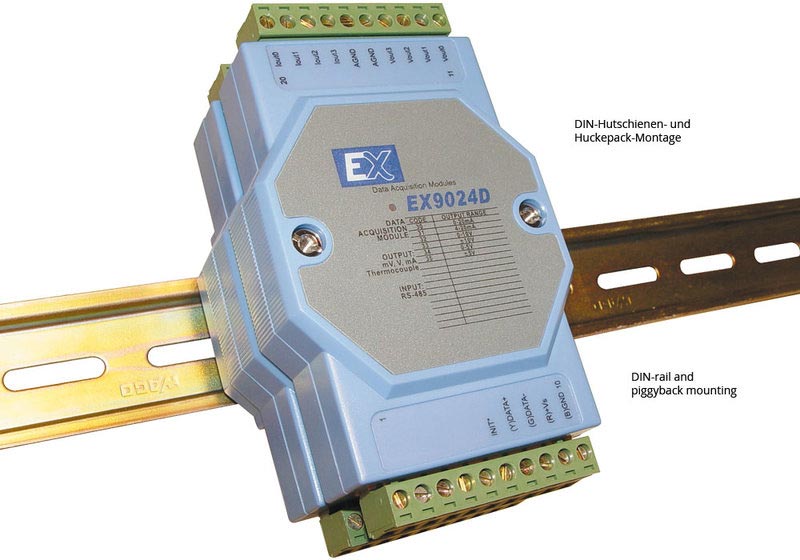

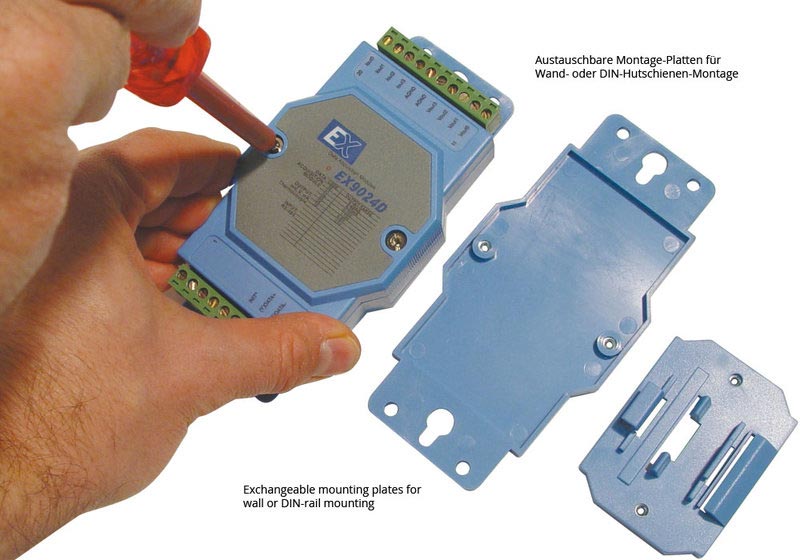

- DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

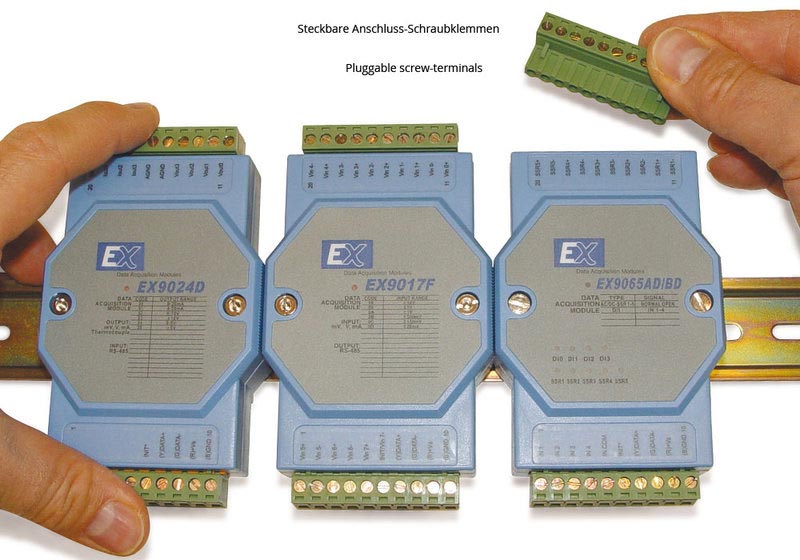

- Pluggable screw terminals (signal connections, RS485, "INIT").
- "INIT" input: Module reset.
- Extended temperature range (-25...+70°C).
- Galvanic isolation of input to output.
- Configuration: Manual or with software (included).
- Power supply 10...30 VDC.
- Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
- Hard- and software watchdog.
Model Overview
Model | eX-9055 | |
Available versions | eX-9055D-M | eX-9055-MTCP |
Digital inputs | 8 single-ended sink/source, log. 0: Max. 4 VDC, log. 1: 10...50 V; input impedance 10 kΩ | 8 inputs dry/wet contact; 1 kHz; level 0/1 close to GND or 0...2 VDC/open or 5...30 VDC; inputs support counter/frequenz/latch |
Isolation | 3750 VRMS (common source/common ground) | 3000 VDC (interface) |
Digital outputs | 8 open source N-MOSFET, max. load DC 10...40 VDC; 650 mA | 8 outputs P-MOSFET (open drain), load max. 30 V/1 A; outputs support 1 kHz pulse output |
Isolation | 3750 VRMS | 3000 VDC (interface) |
Power consumption | 1.6 W | 2.0 W |
LED display for channels | ✓ | - |
Communication | Modbus-RTU RS485, 300...115200 bps | RJ45 Ethernet; Modbus/TCP, TCP/IP, UDP, ICMP, ARP |
Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
Information on product safety:
Manufacturer:
TopsCCC Technology Co., LTD., 5F., No 12, Lane 345, Yangguang Street, 11491 Nei-Hu, Taipei/TWN
www.topsccc.com
