Benefits of the eX-9053 with 12/16 Isolated Digital-Inputs, 8 Digital-Outputs
- 16 isolated digital inputs.
- Pluggable screw terminals.
- Compacte module, wall/DIN-rail mountable.

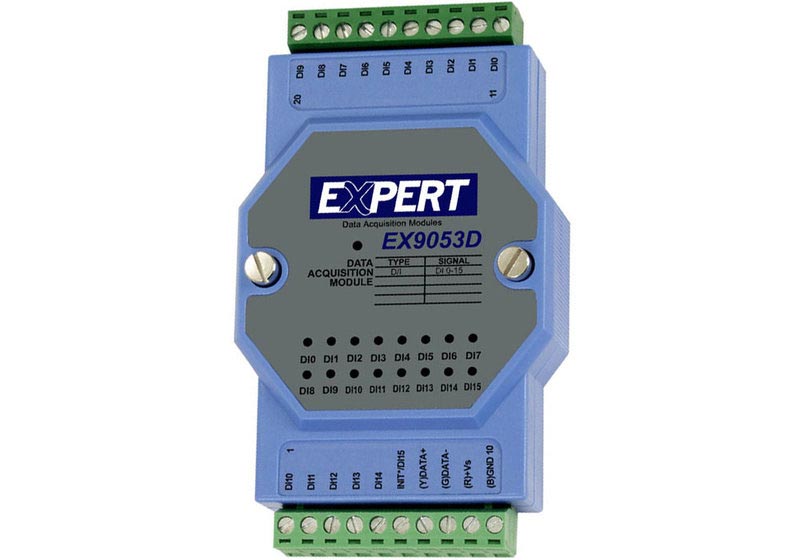

eX-9053 12/16 Digital Inputs, 8 Digital Outputs, for RS485
The eX-9053 industrial modules are the ideal solution for decentral/distributed, PC-controlledacquisition or output of digital signals. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.
- Industrial modules with RS485, MODbus-RTU for decentral/remote networking applications.
- 16 digital inputs, isolated.

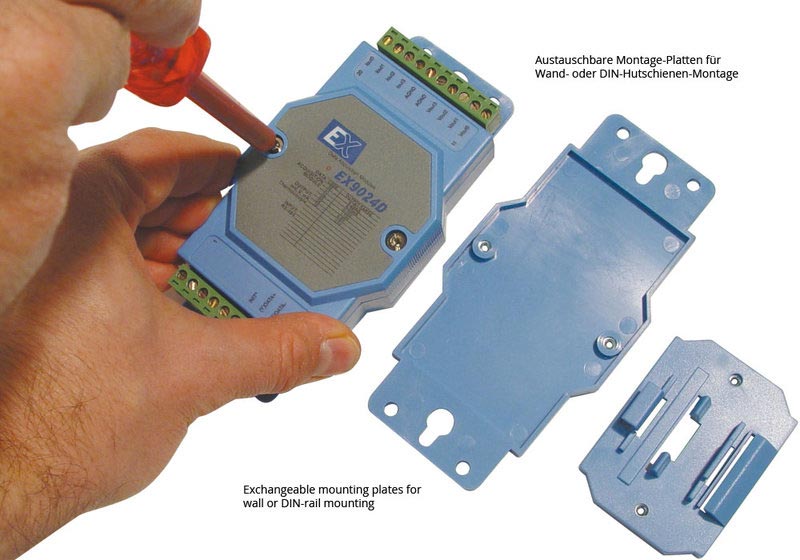

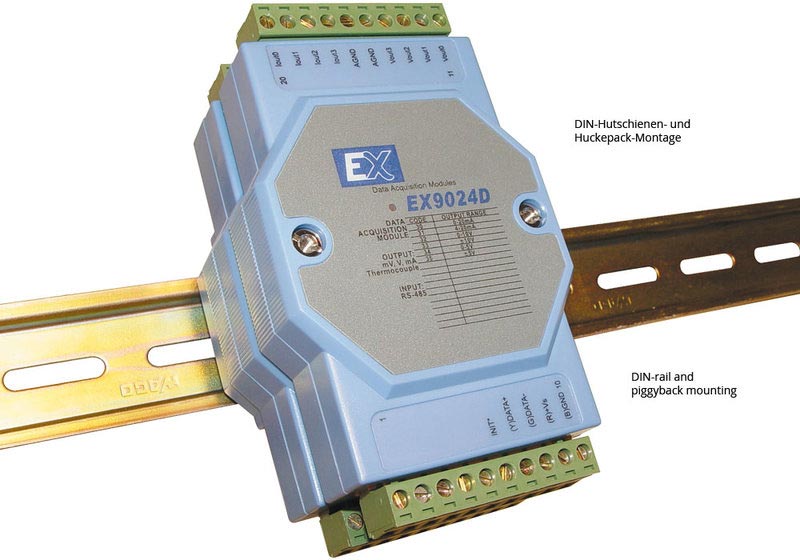

- DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

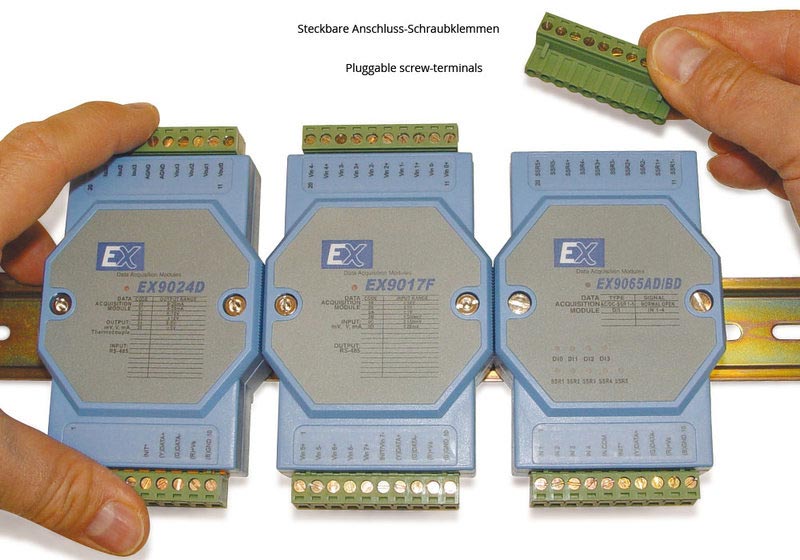

- Pluggable screw terminals (signal connections, RS485, "INIT").
- "INIT" input: Module reset.
- Extended temperature range (-25...+70°C).
- Galvanic isolation of input to output.
- Configuration: Manual or with software (included).
- Power supply 10...30 VDC.
- Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
- Hard- and software watchdog.
Model Overview
| Model | eX-9053 | ||

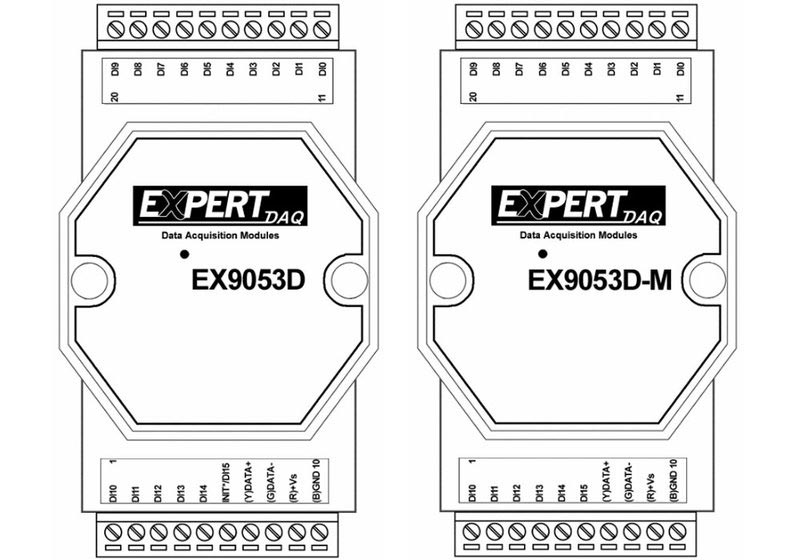

| Available versions | eX-9053D | eX-9053D-M | eX-9053D-MTCP |
| Digital inputs | 16, log. 0: 2 V, log. 1: 4...30 V, input impedance 820 Ω | 12 inputs dry/wet contact; level 0/1 close to GND or 0...2 VDC/open or 5...30 VDC. Inputs support counter/frequency/latch | |
| Isolation | - | 3750 VRMS (interface) | |
| Digital outputs | - | 8 outputs isolated, open collector NPN, load max. 5...30 V/500 mA; outputs support 500 Hz pulse output | |
| Isolation | - | 3750 VRMS (interface) | |
| Power consumption | 1.7 W | 1.8 W | |
| LED display for channels | ✓ | - | |
| Communication | RS485, 300...115200 bps | Modbus-RTU RS485, 300...115200 bps | RJ45 Ethernet; Modbus/TCP, TCP/IP, UDP, ICMP, ARP |
Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
Information on product safety:
Manufacturer:
TopsCCC Technology Co., LTD., 5F., No 12, Lane 345, Yangguang Street, 11491 Nei-Hu, Taipei/TWN
www.topsccc.com
