eX-9044 4 Digital Inputs, 8 Digital Outputs, Isolated, for RS485
Description
Accessories
Files/Downloads
Benefits of the eX-9044 with 4 Isolated Digital Inputs, 8 Isolated Digital Outputs
- 4 digital inputs, 8 digital outputs, isolated.
- Screw terminals, detachabel.
- DIN-rail or wall mountable.
eX-9044 4 Digital Inputs, 8 Digital Outputs, Isolated, for RS485
The eX-9044 industrial modules are the ideal solution for decentral/distributed, PC-controlled acquisition or output of digital signals. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.
- Industrial modules with RS485, MODbus-RTU for decentral/remote networking applications.
- 4 isolated digital inputs, 8 isolated digital outputs.

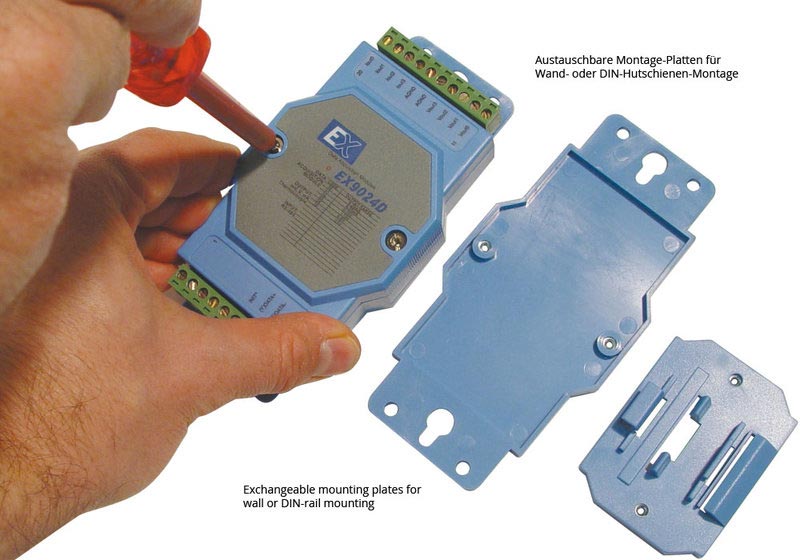

- DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.
- Pluggable screw terminals (signal connections, RS485, "INIT").
- "INIT" input: Module reset.
- Extended temperature range (-25...+70°C).
- Galvanic isolation of input to output.
- Configuration: Manual or with software (included).
- Power supply 10...30 VDC.
- Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
- Hard- and software watchdog.
Model Overview
| Model | eX-9044 | |
| Available versions | eX-9044D | eX-9044D-M |
| Digital inputs | 4 single-ended, log. 0: 0...1 V, log. 1: 4...30 V, input resistance 3 kΩ | |
| Isolation | 3750 V with common source | |
| Digital outputs | 8 open-collector, max. load DC 375 mA/30 V | |
| Isolation | 3750 V with common source | |
| Power consumption | 1.5 W | |
| LED display for channels | ✓ | ✓ |
| Communication | RS485, 300...115200 bps | Modbus-RTU RS485, 300...115200 bps |
Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.
Information on product safety:
Manufacturer:
TopsCCC Technology Co., LTD., 5F., No 12, Lane 345, Yangguang Street, 11491 Nei-Hu, Taipei/TWN
www.topsccc.com
