Benefits of the eX-9043 with 16 Digital Outputs

  • 16 digital outputs.
  • Detachable screw terminal connectors.
  • Compact modules, DIN-rail a wall mountable.

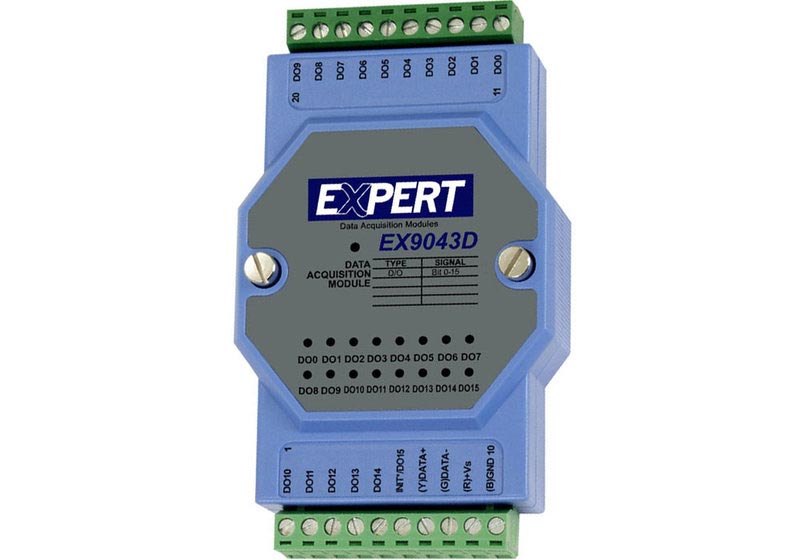

eX-9043 16 Digital Outputs, for RS485

The eX-9043 industrial modules are the ideal solution for decentral/distributed, PC-controlled acquisition or output of digital signals. They arevcompact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485, MODbus-RTU for decentral/remote networking applications.
  • 16 digital outputs.

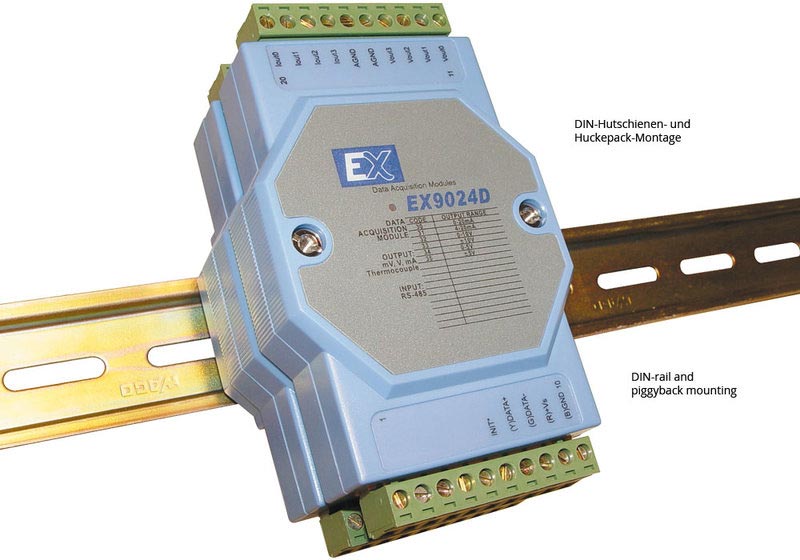

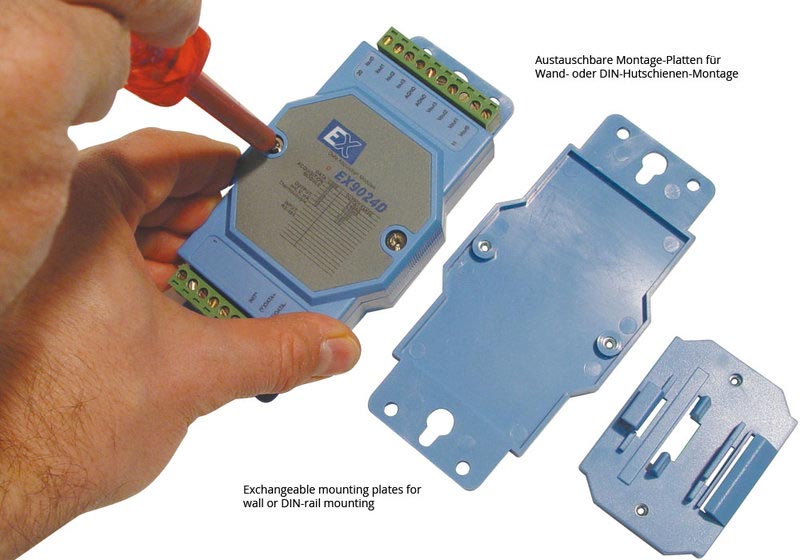

  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.

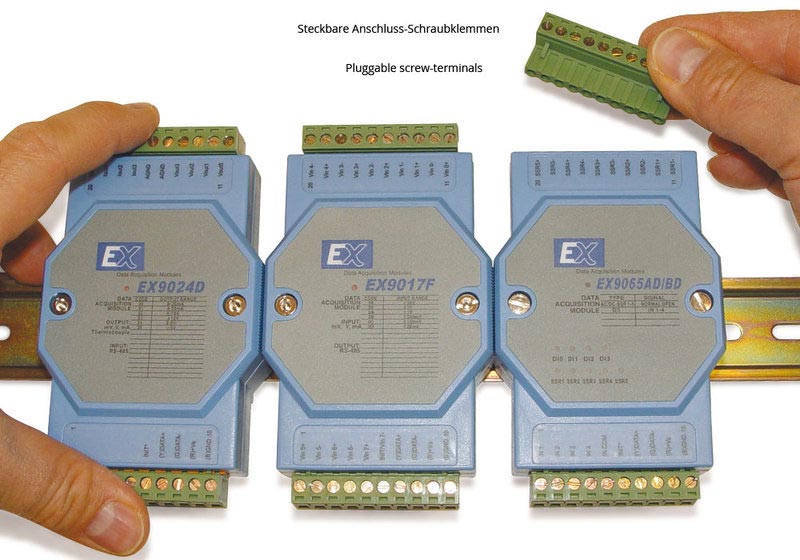

  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.

Model Overview

ModeleX-9043

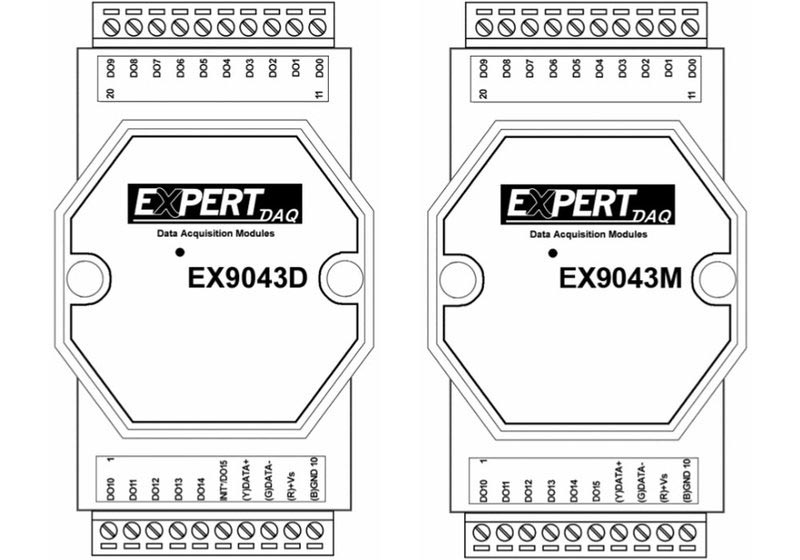

Available versionseX-9043DeX-9043D-M
Digital outputs16 open-collector, max. load DC 100 mA/30 V
Power consumption1.1 W1.2 W
LED display for channels
CommunicationRS485, 300...115200 bpsModbus-RTU RS485, 300...115200 bps

Included: Module, DIN-rail and wall mounting kit, user manual, driver CD.


Information on product safety:

Manufacturer:
TopsCCC Technology Co., LTD., 5F., No 12, Lane 345, Yangguang Street, 11491 Nei-Hu, Taipei/TWN
www.topsccc.com
